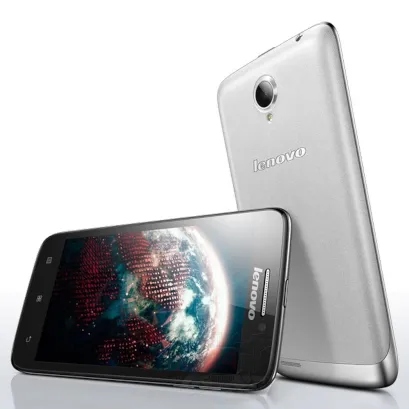

Lenovo S650
Lenovo S650
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo S650 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Lenovo S650, Step 1/1 How to disassemble Lenovo S650, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo S650, Step 2/1 How to disassemble Lenovo S650, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo S650, Step 3/1 How to disassemble Lenovo S650, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Lenovo S650, Step 4/1 How to disassemble Lenovo S650, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo S650, Step 5/1 How to disassemble Lenovo S650, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the buzzer (speaker) assembly.

How to disassemble Lenovo S650, Step 6/1 How to disassemble Lenovo S650, Step 6/2 How to disassemble Lenovo S650, Step 6/3

Step 6.

Disconnect connectors on the lower PCB and remove it.

⚠️ Warning!

One connector is on the inside.

How to disassemble Lenovo S650, Step 7/1 How to disassemble Lenovo S650, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Lenovo S650, Step 8/1 How to disassemble Lenovo S650, Step 8/2 How to disassemble Lenovo S650, Step 8/3

Step 8.

Disconnect connectors on the PCB.

How to disassemble Lenovo S650, Step 9/1 How to disassemble Lenovo S650, Step 9/2 How to disassemble Lenovo S650, Step 9/3

Step 9.

Turn over PCB, disconnect the connectors from the inside and remove the board.

How to disassemble Lenovo S650, Step 10/1 How to disassemble Lenovo S650, Step 10/2

Step 10.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Lenovo S650, Step 11/1 How to disassemble Lenovo S650, Step 11/2 How to disassemble Lenovo S650, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo S650 in the video, made by our mobile repair & service center:
