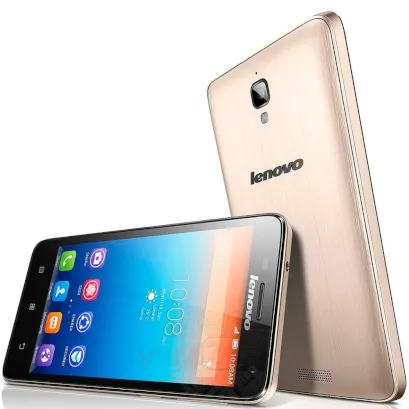

Lenovo S660
Lenovo S660
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo S660 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo S660, Step 1/1 How to disassemble Lenovo S660, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo S660, Step 2/1 How to disassemble Lenovo S660, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo S660, Step 3/1 How to disassemble Lenovo S660, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 6 bolts in the frame of the phone.

How to disassemble Lenovo S660, Step 4/1 How to disassemble Lenovo S660, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo S660, Step 5/1

Step 5.

The middle frame.

How to disassemble Lenovo S660, Step 6/1 How to disassemble Lenovo S660, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo S660, Step 7/1 How to disassemble Lenovo S660, Step 7/2

Step 7.

Disconnect connectors on the PCB.

How to disassemble Lenovo S660, Step 8/1 How to disassemble Lenovo S660, Step 8/2 How to disassemble Lenovo S660, Step 8/3

Step 8.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble Lenovo S660, Step 9/1 How to disassemble Lenovo S660, Step 9/2 How to disassemble Lenovo S660, Step 9/3

Step 9.

Disconnect connector on the lower PCB and remove it.

How to disassemble Lenovo S660, Step 10/1 How to disassemble Lenovo S660, Step 10/2 How to disassemble Lenovo S660, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Lenovo S660 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo S660
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Lenovo S660 released for markets in different countries.
