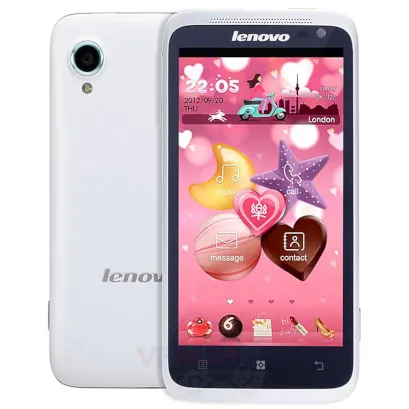

Lenovo S720 IdeaPhone
Lenovo S720 IdeaPhone
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo S720 IdeaPhone with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo S720 IdeaPhone, Step 1/1 How to disassemble Lenovo S720 IdeaPhone, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo S720 IdeaPhone, Step 2/1 How to disassemble Lenovo S720 IdeaPhone, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo S720 IdeaPhone, Step 3/1 How to disassemble Lenovo S720 IdeaPhone, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Lenovo S720 IdeaPhone, Step 4/1 How to disassemble Lenovo S720 IdeaPhone, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo S720 IdeaPhone, Step 5/1 How to disassemble Lenovo S720 IdeaPhone, Step 5/2

Step 5.

Disconnect the coaxial cable connector on the lower PCB, lift the board, disconnect the connector from the inside and remove the board.

How to disassemble Lenovo S720 IdeaPhone, Step 6/1 How to disassemble Lenovo S720 IdeaPhone, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Lenovo S720 IdeaPhone, Step 7/1 How to disassemble Lenovo S720 IdeaPhone, Step 7/2 How to disassemble Lenovo S720 IdeaPhone, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble Lenovo S720 IdeaPhone, Step 8/1 How to disassemble Lenovo S720 IdeaPhone, Step 8/2 How to disassemble Lenovo S720 IdeaPhone, Step 8/3

Step 8.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Lenovo S720 IdeaPhone, Step 9/1 How to disassemble Lenovo S720 IdeaPhone, Step 9/2 How to disassemble Lenovo S720 IdeaPhone, Step 9/3

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of Lenovo S720 IdeaPhone in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo S720 IdeaPhone
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo S720 IdeaPhone released for markets in different countries.
