Step 1.

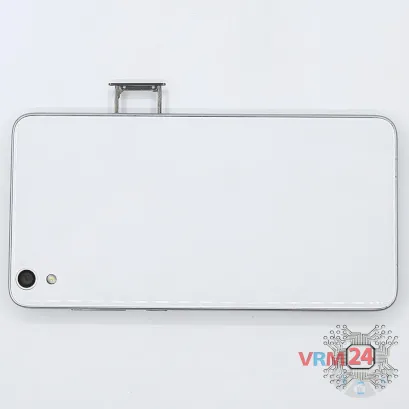

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Lenovo S850, Step 2/1 How to disassemble Lenovo S850, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Lenovo S850, Step 3/1 How to disassemble Lenovo S850, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.


How to disassemble Lenovo S850, Step 4/1 How to disassemble Lenovo S850, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Lenovo S850, Step 5/1 How to disassemble Lenovo S850, Step 5/2 How to disassemble Lenovo S850, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the battery.


How to disassemble Lenovo S850, Step 6/1 How to disassemble Lenovo S850, Step 6/2 How to disassemble Lenovo S850, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Lenovo S850, Step 7/1 How to disassemble Lenovo S850, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.


How to disassemble Lenovo S850, Step 8/1 How to disassemble Lenovo S850, Step 8/2 How to disassemble Lenovo S850, Step 8/3

Step 8.

Disconnect connectors on the PCB.


How to disassemble Lenovo S850, Step 9/1 How to disassemble Lenovo S850, Step 9/2 How to disassemble Lenovo S850, Step 9/3 How to disassemble Lenovo S850, Step 9/4

Step 9.

Overturn the board, disconnect the connectors from the inside and remove it.


How to disassemble Lenovo S850, Step 10/1 How to disassemble Lenovo S850, Step 10/2 How to disassemble Lenovo S850, Step 10/3

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo S850 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Lenovo S850 released for markets in different countries.
