Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

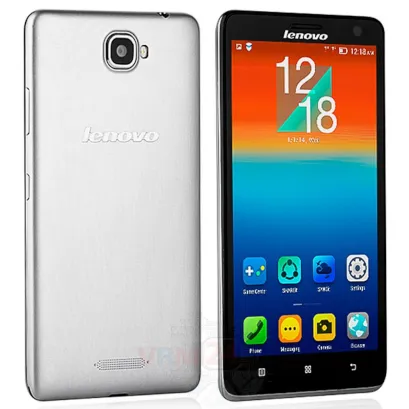

Disassembly of the mobile device Lenovo S856 with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Lenovo S856, Step 1/1 How to disassemble Lenovo S856, Step 1/2

Step 1

Open the back cover.


How to disassemble Lenovo S856, Step 2/1 How to disassemble Lenovo S856, Step 2/2

Step 2

Lift and remove the battery.


How to disassemble Lenovo S856, Step 3/1 How to disassemble Lenovo S856, Step 3/2

Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble Lenovo S856, Step 4/1 How to disassemble Lenovo S856, Step 4/2

Step 4

Pry and remove the middle frame.


How to disassemble Lenovo S856, Step 5/1 How to disassemble Lenovo S856, Step 5/2

Step 5

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts on the boards.


How to disassemble Lenovo S856, Step 6/1 How to disassemble Lenovo S856, Step 6/2 How to disassemble Lenovo S856, Step 6/3

Step 6

Disconnect connectors on the lower PCB and remove it.


How to disassemble Lenovo S856, Step 7/1 How to disassemble Lenovo S856, Step 7/2 How to disassemble Lenovo S856, Step 7/3

Step 7

Disconnect connectors on the PCB.


How to disassemble Lenovo S856, Step 8/1 How to disassemble Lenovo S856, Step 8/2 How to disassemble Lenovo S856, Step 8/3

Step 8

Overturn the board, disconnect the connector from the inside and remove it.


How to disassemble Lenovo S856, Step 9/1 How to disassemble Lenovo S856, Step 9/2 How to disassemble Lenovo S856, Step 9/3

Step 9

Parts are in the frame of the display module.

Detailed disassembly instructions of Lenovo S856 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo S856 released for markets in different countries.
