Lenovo S860
Lenovo S860
Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

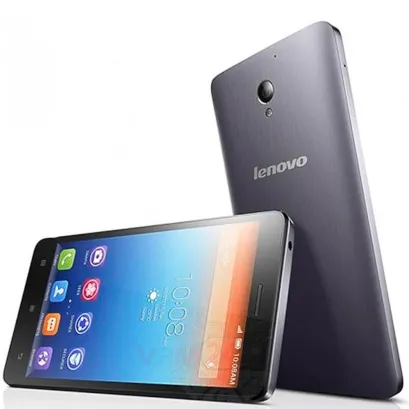

Disassembly/Repair of the mobile device Lenovo S860 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Lenovo S860, Step 1/1 How to disassemble Lenovo S860, Step 1/2

Step 1.

Using the key tool, open the SIM cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Lenovo S860, Step 2/1 How to disassemble Lenovo S860, Step 2/2

Step 2.

Remove the cover from the end of the phone.

How to disassemble Lenovo S860, Step 3/1 How to disassemble Lenovo S860, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 bolts on the end of the phone.

How to disassemble Lenovo S860, Step 4/1

Step 4.

Open the back cover.

How to disassemble Lenovo S860, Step 5/1 How to disassemble Lenovo S860, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the connector.

How to disassemble Lenovo S860, Step 6/1 How to disassemble Lenovo S860, Step 6/2 How to disassemble Lenovo S860, Step 6/3

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Lenovo S860, Step 7/1 How to disassemble Lenovo S860, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the lower part.

How to disassemble Lenovo S860, Step 8/1 How to disassemble Lenovo S860, Step 8/2

Step 8.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Lenovo S860, Step 9/1 How to disassemble Lenovo S860, Step 9/2

Step 9.

Disconnect connectors on the lower PCB.

How to disassemble Lenovo S860, Step 10/1 How to disassemble Lenovo S860, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Lenovo S860, Step 11/1 How to disassemble Lenovo S860, Step 11/2 How to disassemble Lenovo S860, Step 11/3

Step 11.

Disconnect connector and remove the inter-board cable.

How to disassemble Lenovo S860, Step 12/1 How to disassemble Lenovo S860, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble Lenovo S860, Step 13/1 How to disassemble Lenovo S860, Step 13/2 How to disassemble Lenovo S860, Step 13/3

Step 13.

Disconnect connectors on the PCB.

How to disassemble Lenovo S860, Step 14/1 How to disassemble Lenovo S860, Step 14/2

Step 14.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Lenovo S860, Step 15/1 How to disassemble Lenovo S860, Step 15/2 How to disassemble Lenovo S860, Step 15/3 How to disassemble Lenovo S860, Step 15/4 How to disassemble Lenovo S860, Step 15/5

Step 15.

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.

How to disassemble Lenovo S860, Step 16/1 How to disassemble Lenovo S860, Step 16/2 How to disassemble Lenovo S860, Step 16/3

Step 16.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo S860 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo S860
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Lenovo S860 released for markets in different countries.
