Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

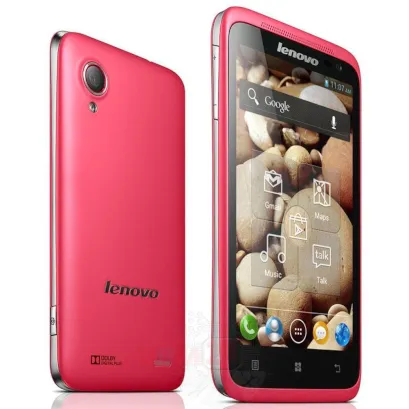

Disassembly/Repair of the mobile device Lenovo S920 IdeaPhone with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Lenovo S920 IdeaPhone, Step 1/1 How to disassemble Lenovo S920 IdeaPhone, Step 1/2

Step 1.

Open the back cover.


How to disassemble Lenovo S920 IdeaPhone, Step 2/1 How to disassemble Lenovo S920 IdeaPhone, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Lenovo S920 IdeaPhone, Step 3/1 How to disassemble Lenovo S920 IdeaPhone, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.


How to disassemble Lenovo S920 IdeaPhone, Step 4/1 How to disassemble Lenovo S920 IdeaPhone, Step 4/2

Step 4.

Pry and remove the middle frame and keys of the volume and power buttons.


How to disassemble Lenovo S920 IdeaPhone, Step 5/1

Step 5.

The middle frame.


How to disassemble Lenovo S920 IdeaPhone, Step 6/1 How to disassemble Lenovo S920 IdeaPhone, Step 6/2 How to disassemble Lenovo S920 IdeaPhone, Step 6/3

Step 6.

Disconnect connector on the lower PCB.


How to disassemble Lenovo S920 IdeaPhone, Step 7/1 How to disassemble Lenovo S920 IdeaPhone, Step 7/2 How to disassemble Lenovo S920 IdeaPhone, Step 7/3

Step 7.

Overturn the board, disconnect the connector from the inside and remove the lower PCB.


How to disassemble Lenovo S920 IdeaPhone, Step 8/1 How to disassemble Lenovo S920 IdeaPhone, Step 8/2

Step 8.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.


How to disassemble Lenovo S920 IdeaPhone, Step 9/1 How to disassemble Lenovo S920 IdeaPhone, Step 9/2 How to disassemble Lenovo S920 IdeaPhone, Step 9/3

Step 9.

Disconnect connectors on the PCB and pry up the power & volume buttons flex cable.


How to disassemble Lenovo S920 IdeaPhone, Step 10/1 How to disassemble Lenovo S920 IdeaPhone, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the PCB.


How to disassemble Lenovo S920 IdeaPhone, Step 11/1 How to disassemble Lenovo S920 IdeaPhone, Step 11/2 How to disassemble Lenovo S920 IdeaPhone, Step 11/3 How to disassemble Lenovo S920 IdeaPhone, Step 11/4

Step 11.

Overturn the board, disconnect the connector from the inside and remove it.


How to disassemble Lenovo S920 IdeaPhone, Step 12/1 How to disassemble Lenovo S920 IdeaPhone, Step 12/2

Step 12.

Peel off the protective layer with the inter-board cable.


How to disassemble Lenovo S920 IdeaPhone, Step 13/1 How to disassemble Lenovo S920 IdeaPhone, Step 13/2

Step 13.

Pry & remove the coaxial cable.


How to disassemble Lenovo S920 IdeaPhone, Step 14/1 How to disassemble Lenovo S920 IdeaPhone, Step 14/2

Step 14.

Pry and remove the earpiece (speaker).


How to disassemble Lenovo S920 IdeaPhone, Step 15/1 How to disassemble Lenovo S920 IdeaPhone, Step 15/2 How to disassemble Lenovo S920 IdeaPhone, Step 15/3

Step 15.

Parts are in the frame of the display module.

Detailed disassembly instructions of Lenovo S920 IdeaPhone in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo S920 IdeaPhone released for markets in different countries.
