Step 1

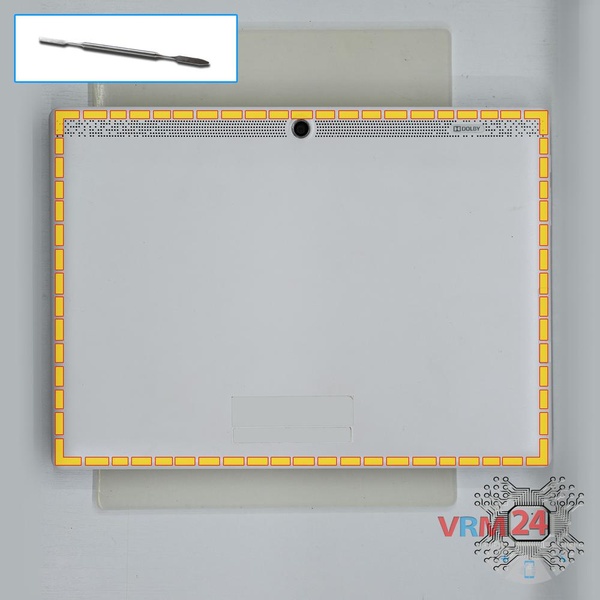

Open the back cover.


How to disassemble Lenovo Tab 2 A10-70L, Step 2/1 How to disassemble Lenovo Tab 2 A10-70L, Step 2/2

Step 2

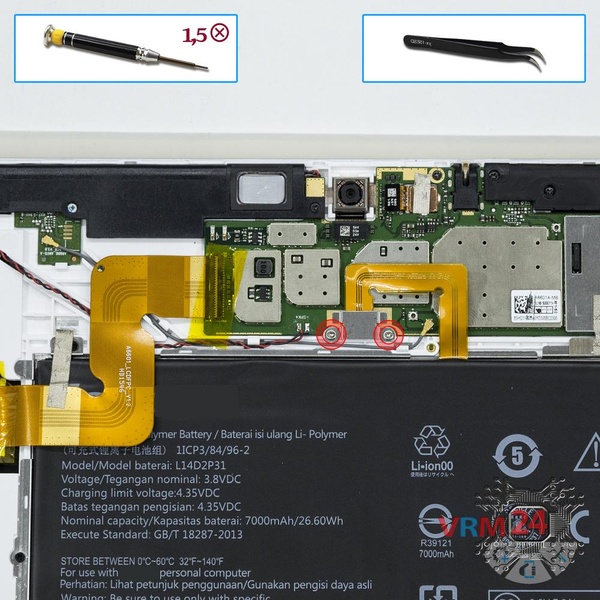

Using a screwdriver (1.5 mm Phillips cross-head), unscrew the 2 bolts and remove the holder of the battery connector.


How to disassemble Lenovo Tab 2 A10-70L, Step 3/1 How to disassemble Lenovo Tab 2 A10-70L, Step 3/2

Step 3

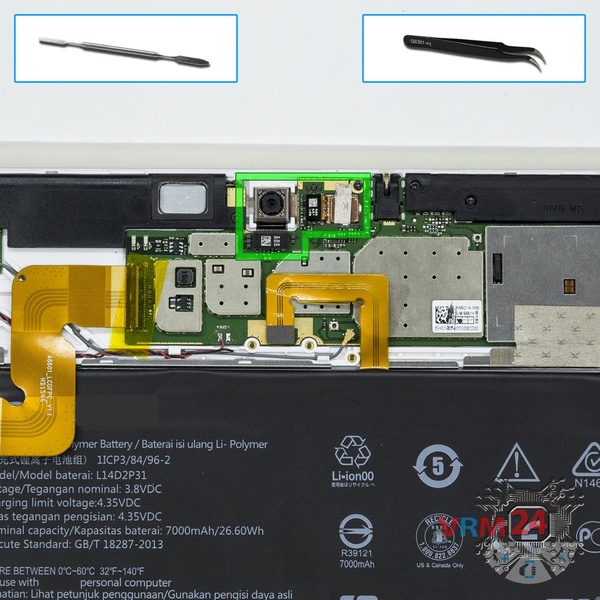

Disconnect the connectors on PCB and remove the main and front (selfie) cameras.


How to disassemble Lenovo Tab 2 A10-70L, Step 4/1 How to disassemble Lenovo Tab 2 A10-70L, Step 4/2 How to disassemble Lenovo Tab 2 A10-70L, Step 4/3

Step 4

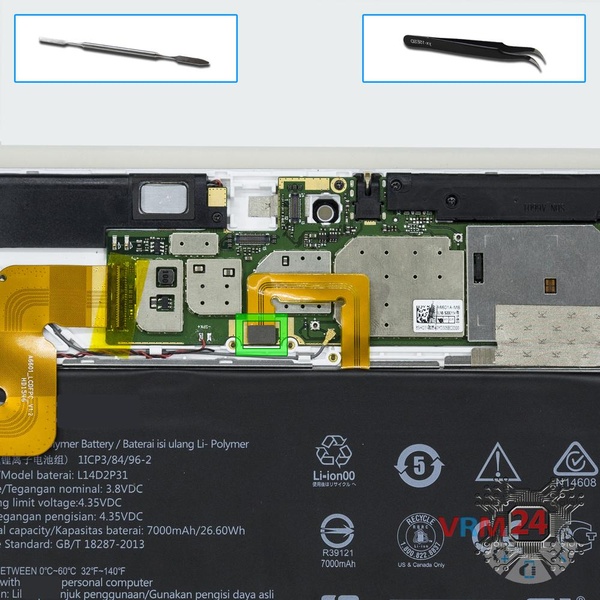

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Lenovo Tab 2 A10-70L, Step 5/1 How to disassemble Lenovo Tab 2 A10-70L, Step 5/2 How to disassemble Lenovo Tab 2 A10-70L, Step 5/3

Step 5

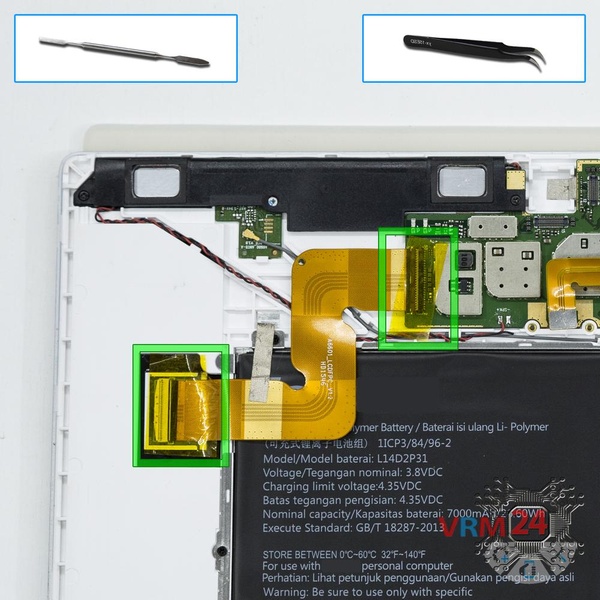

Disconnect the connectors and remove inter-board cable.


How to disassemble Lenovo Tab 2 A10-70L, Step 6/1 How to disassemble Lenovo Tab 2 A10-70L, Step 6/2 How to disassemble Lenovo Tab 2 A10-70L, Step 6/3

Step 6

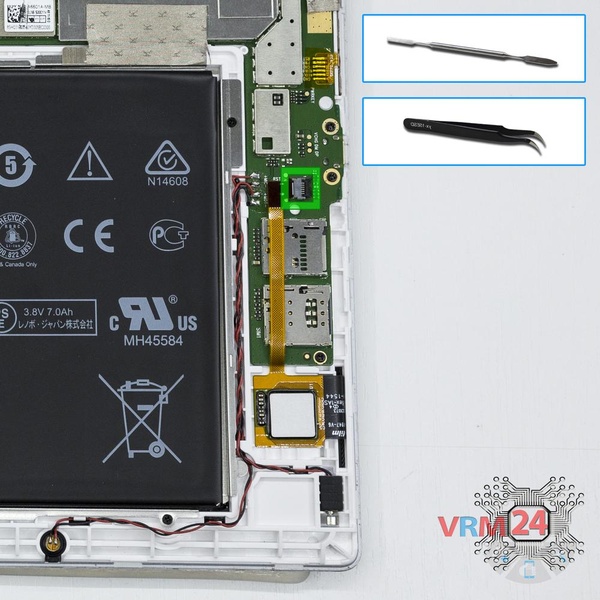

Disconnect the touch screen connector.


How to disassemble Lenovo Tab 2 A10-70L, Step 7/1 How to disassemble Lenovo Tab 2 A10-70L, Step 7/2 How to disassemble Lenovo Tab 2 A10-70L, Step 7/3

Step 7

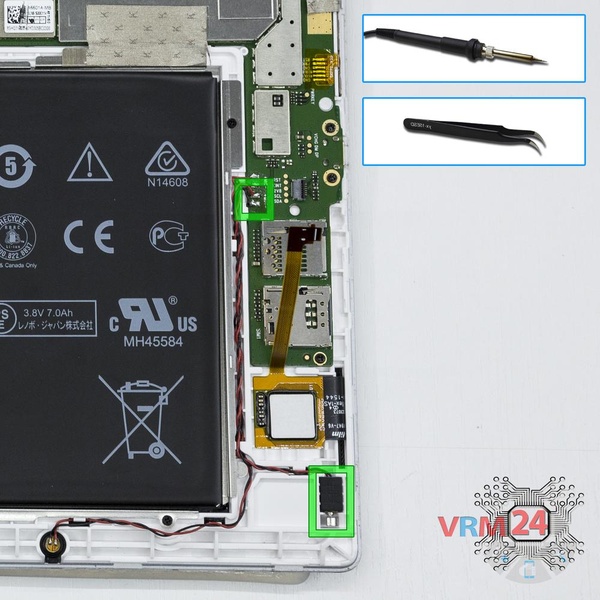

Unsolder the contacts and remove the vibration.


How to disassemble Lenovo Tab 2 A10-70L, Step 8/1 How to disassemble Lenovo Tab 2 A10-70L, Step 8/2 How to disassemble Lenovo Tab 2 A10-70L, Step 8/3

Step 8

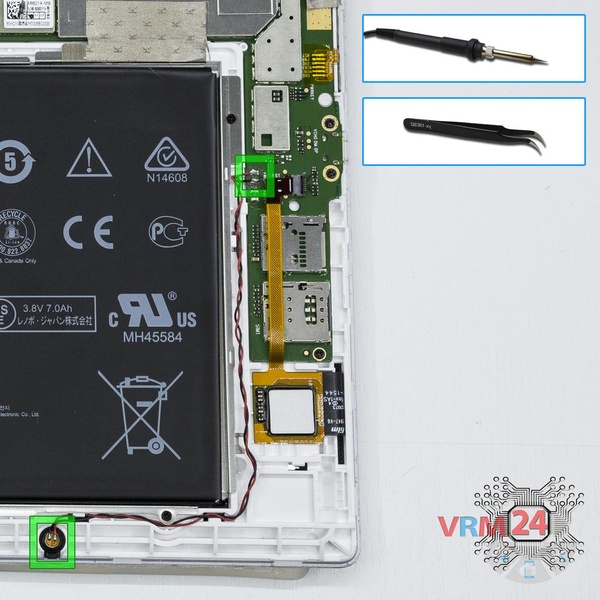

Unsolder the contacts and remove the microphone.


How to disassemble Lenovo Tab 2 A10-70L, Step 9/1 How to disassemble Lenovo Tab 2 A10-70L, Step 9/2

Step 9

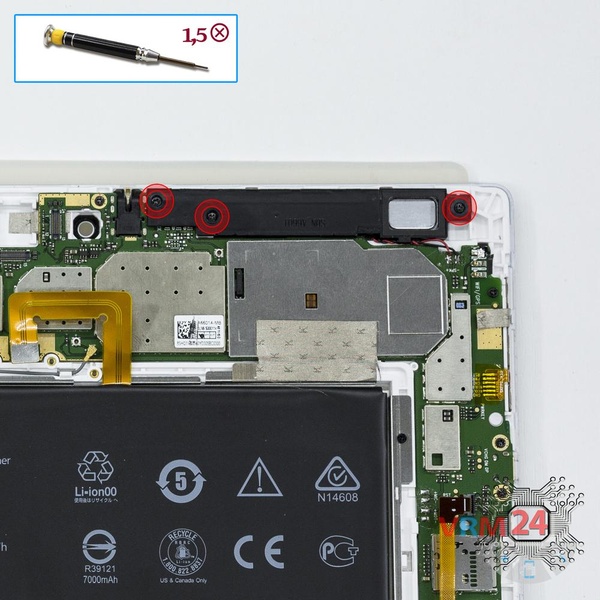

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew the 3 bolts in the part with the speaker.


How to disassemble Lenovo Tab 2 A10-70L, Step 10/1 How to disassemble Lenovo Tab 2 A10-70L, Step 10/2

Step 10

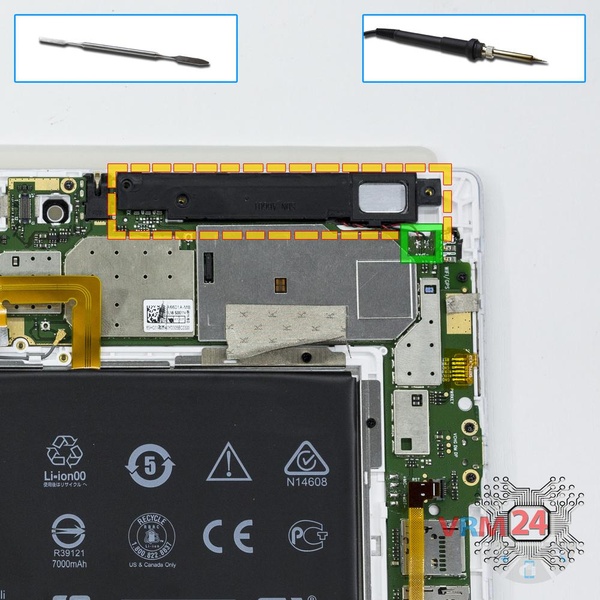

Unsolder the contacts and remove the part with the speaker.


How to disassemble Lenovo Tab 2 A10-70L, Step 11/1 How to disassemble Lenovo Tab 2 A10-70L, Step 11/2

Step 11

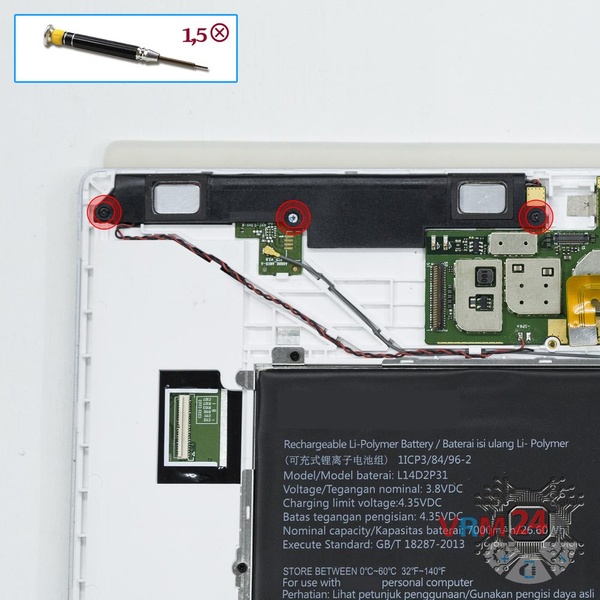

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew the 3 bolts in the part with the speakers.


How to disassemble Lenovo Tab 2 A10-70L, Step 12/1 How to disassemble Lenovo Tab 2 A10-70L, Step 12/2

Step 12

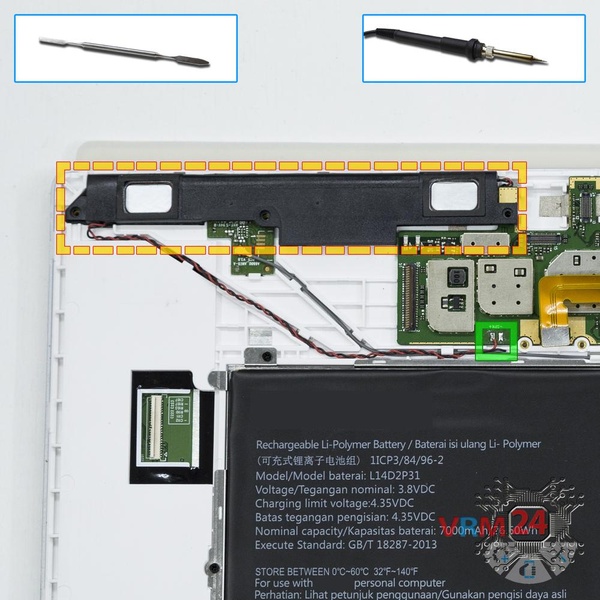

Unsolder the contacts and remove the part with the speakers. This part also soldered from the inside.

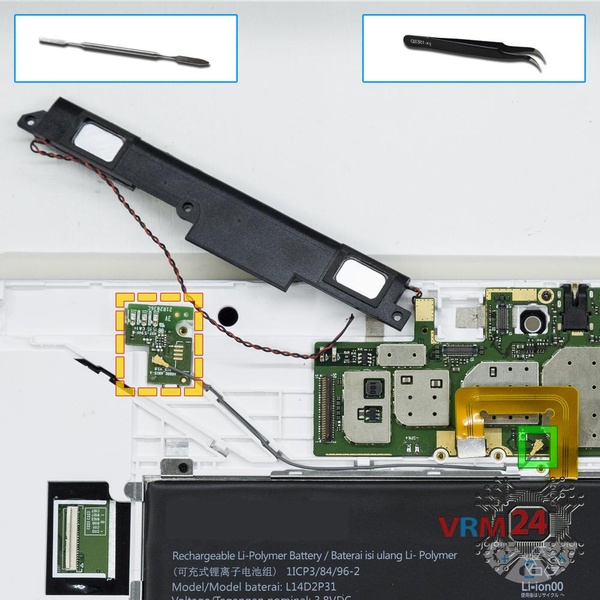

How to disassemble Lenovo Tab 2 A10-70L, Step 13/1 How to disassemble Lenovo Tab 2 A10-70L, Step 13/2 How to disassemble Lenovo Tab 2 A10-70L, Step 13/3

Step 13

Disconnect the contacts and remove the coaxial cable and a small board.


How to disassemble Lenovo Tab 2 A10-70L, Step 14/1 How to disassemble Lenovo Tab 2 A10-70L, Step 14/2

Step 14

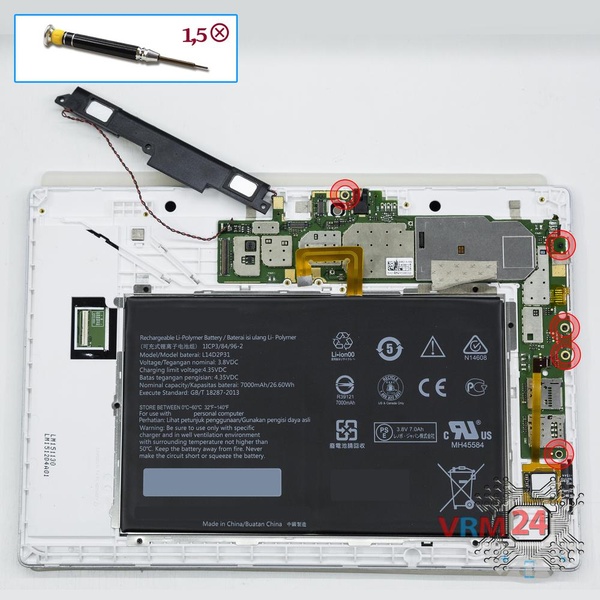

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 6 bolts in the PCB.

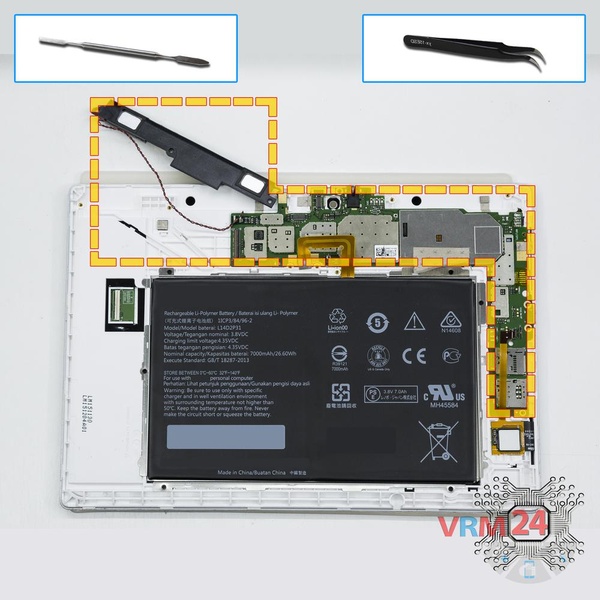

How to disassemble Lenovo Tab 2 A10-70L, Step 15/1 How to disassemble Lenovo Tab 2 A10-70L, Step 15/2

Step 15

Remove the PCB.


How to disassemble Lenovo Tab 2 A10-70L, Step 16/1 How to disassemble Lenovo Tab 2 A10-70L, Step 16/2 How to disassemble Lenovo Tab 2 A10-70L, Step 16/3

Step 16

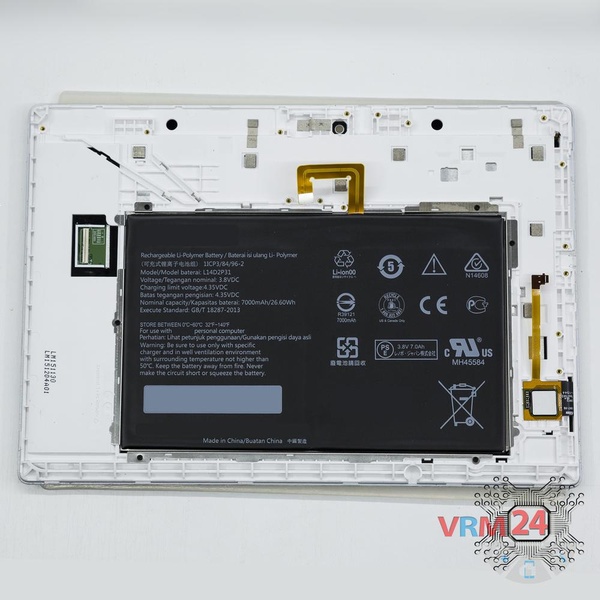

Parts in the frame of the display module.


How to disassemble Lenovo Tab 2 A10-70L, Step 17/1 How to disassemble Lenovo Tab 2 A10-70L, Step 17/2 How to disassemble Lenovo Tab 2 A10-70L, Step 17/3

Step 17

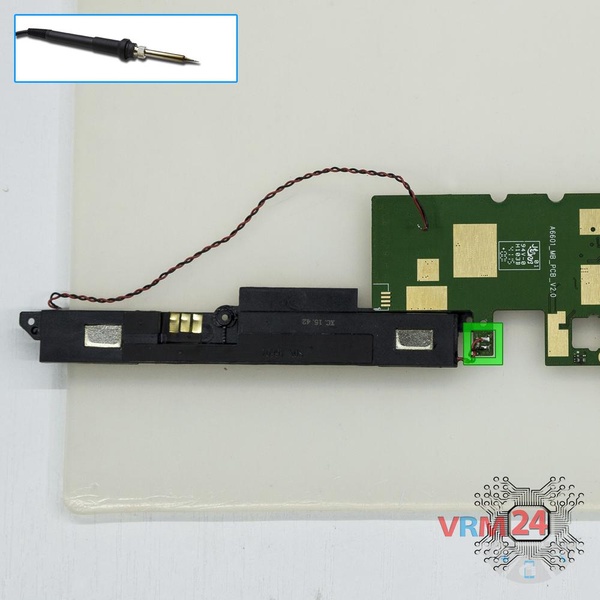

Unsolder the second pair of contacts and remove the parts with the speakers.
