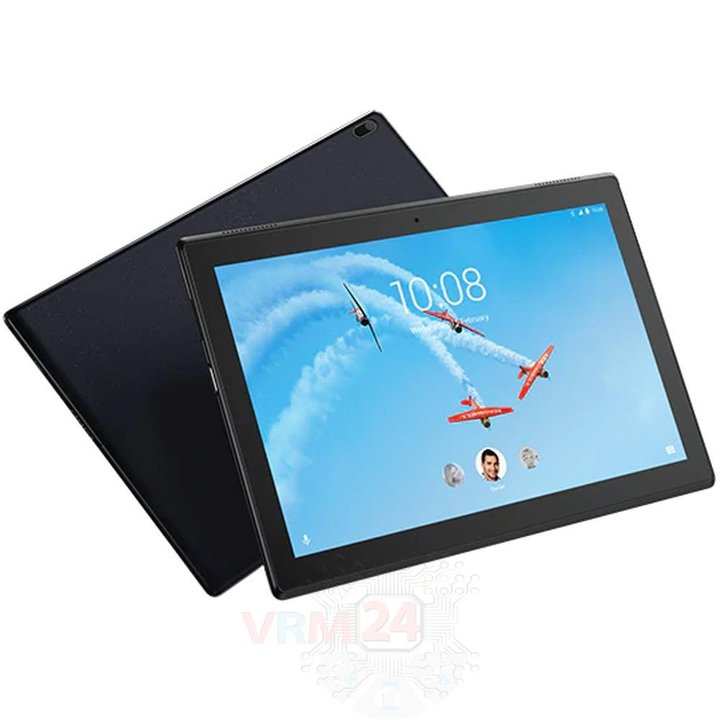

Lenovo Tab 4 TB-X304L
Lenovo Tab 4 TB-X304L
Teardown difficulty:
Easy
Duration:
13 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo Tab 4 TB-X304L (Lenovo Tab 4 10'' TB-X304F (Wi-Fi only)) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Lenovo Tab 4 TB-X304L, Step 1/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 1/2

Step 1.

Open the back cover.
How to disassemble Lenovo Tab 4 TB-X304L, Step 2/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 2/2

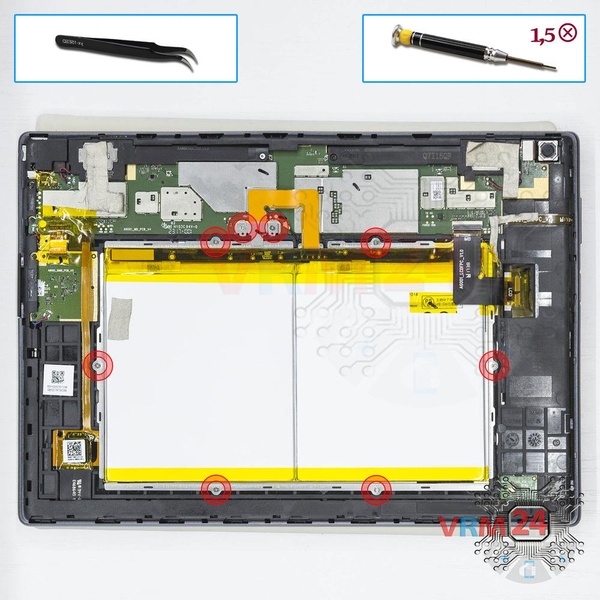

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts securing the battery.

How to disassemble Lenovo Tab 4 TB-X304L, Step 3/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 3/2

Step 3.

Disconnect the connector on PCB and remove the battery. The battery model of Lenovo Tab 4 10'' is L16D2P31.

How to disassemble Lenovo Tab 4 TB-X304L, Step 4/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo Tab 4 TB-X304L, Step 5/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 5/2

Step 5.

Peel back the protective layer and disconnect the headphone jack/socket connector.

How to disassemble Lenovo Tab 4 TB-X304L, Step 6/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 6/2

Step 6.

Pry up the connectors.

How to disassemble Lenovo Tab 4 TB-X304L, Step 7/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 7/2

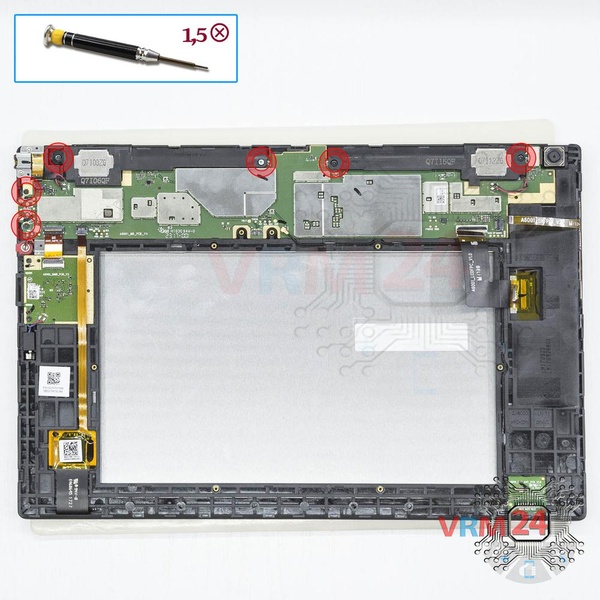

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Lenovo Tab 4 TB-X304L, Step 8/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the daughter board.

How to disassemble Lenovo Tab 4 TB-X304L, Step 9/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 9/2

Step 9.

Disconnect connectors on the daughterboard and remove it.

How to disassemble Lenovo Tab 4 TB-X304L, Step 10/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 10/2

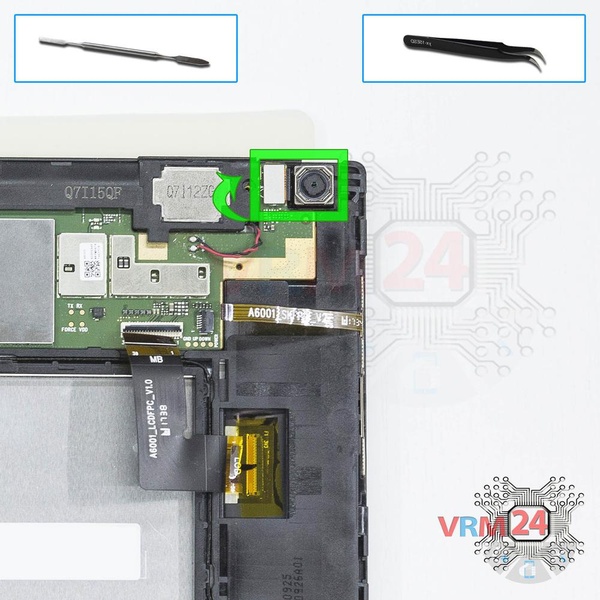

Step 10.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Lenovo Tab 4 TB-X304L, Step 11/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 11/2

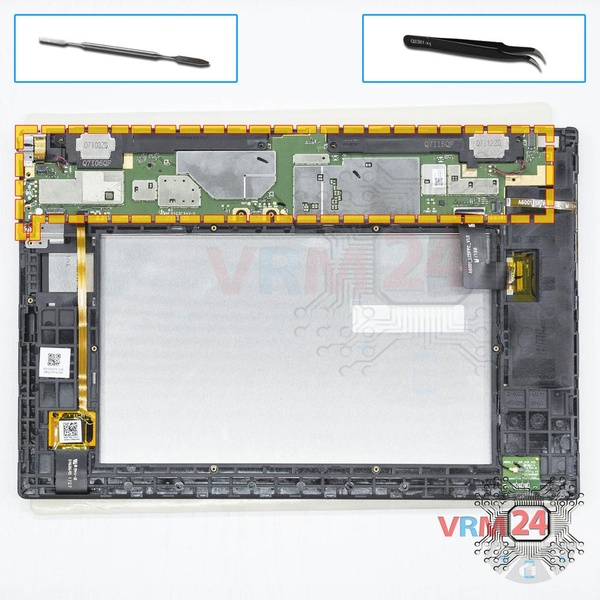

Step 11.

Remove the PCB.

How to disassemble Lenovo Tab 4 TB-X304L, Step 12/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 12/2

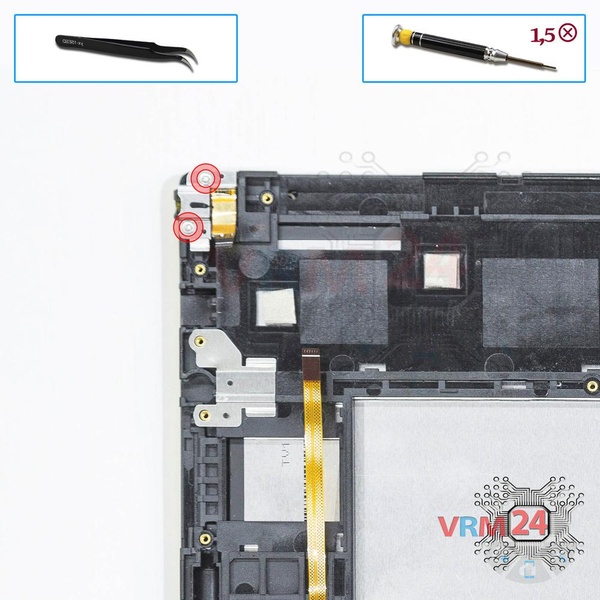

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holding the headphone jack/socket.

How to disassemble Lenovo Tab 4 TB-X304L, Step 13/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 13/2

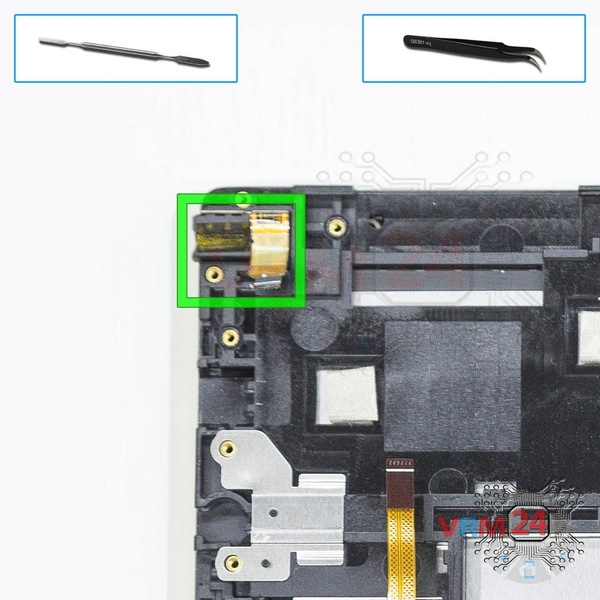

Step 13.

Remove the headphone jack/socket.

How to disassemble Lenovo Tab 4 TB-X304L, Step 14/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 14/2

Step 14.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Lenovo Tab 4 TB-X304L, Step 15/1 How to disassemble Lenovo Tab 4 TB-X304L, Step 15/2 How to disassemble Lenovo Tab 4 TB-X304L, Step 15/3

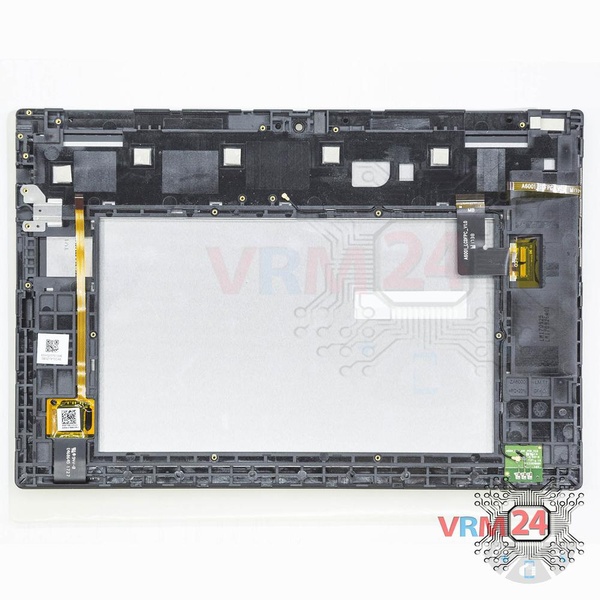

Step 15.

Parts are in the frame of the display module.

Detailed disassembly instructions of Lenovo Tab 4 TB-X304L in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo Tab 4 TB-X304L
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 13 minutes in time.
Our manual is suitable for all models Lenovo Tab 4 TB-X304L — Lenovo Tab 4 10'' TB-X304F (Wi-Fi only) released for markets in different countries.
