Lenovo Vibe K5 Plus
Lenovo Vibe K5 Plus
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

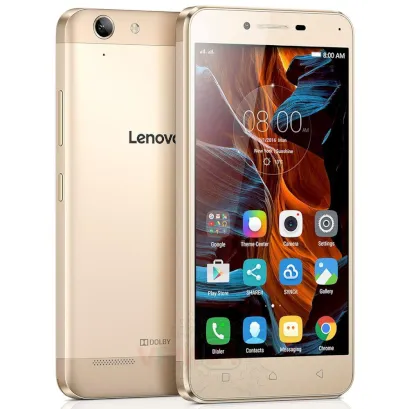

Disassembly/Repair of the mobile device Lenovo Vibe K5 Plus (Lenovo Vibe K5 Plus A6020) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Lenovo Vibe K5 Plus, Step 1/1 How to disassemble Lenovo Vibe K5 Plus, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo Vibe K5 Plus, Step 2/1 How to disassemble Lenovo Vibe K5 Plus, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo Vibe K5 Plus, Step 3/1 How to disassemble Lenovo Vibe K5 Plus, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Lenovo Vibe K5 Plus, Step 4/1 How to disassemble Lenovo Vibe K5 Plus, Step 4/2

Step 4.

Pry and remove the buzzers (speakers) assembly & microphone cover.

How to disassemble Lenovo Vibe K5 Plus, Step 5/1 How to disassemble Lenovo Vibe K5 Plus, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the upper side.

How to disassemble Lenovo Vibe K5 Plus, Step 6/1 How to disassemble Lenovo Vibe K5 Plus, Step 6/2

Step 6.

Pry and remove the upper cover.

How to disassemble Lenovo Vibe K5 Plus, Step 7/1 How to disassemble Lenovo Vibe K5 Plus, Step 7/2

Step 7.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Lenovo Vibe K5 Plus, Step 8/1 How to disassemble Lenovo Vibe K5 Plus, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Lenovo Vibe K5 Plus, Step 9/1 How to disassemble Lenovo Vibe K5 Plus, Step 9/2 How to disassemble Lenovo Vibe K5 Plus, Step 9/3

Step 9.

Disconnect connectors on the PCB and pry up vibration motor & power & volume buttons flex cable.

How to disassemble Lenovo Vibe K5 Plus, Step 10/1 How to disassemble Lenovo Vibe K5 Plus, Step 10/2

Step 10.

Turn over the PCB.

How to disassemble Lenovo Vibe K5 Plus, Step 11/1 How to disassemble Lenovo Vibe K5 Plus, Step 11/2 How to disassemble Lenovo Vibe K5 Plus, Step 11/3

Step 11.

Disconnect the connectors from the inside and remove it.

How to disassemble Lenovo Vibe K5 Plus, Step 12/1 How to disassemble Lenovo Vibe K5 Plus, Step 12/2

Step 12.

Pry and remove the earpiece (speaker).

How to disassemble Lenovo Vibe K5 Plus, Step 13/1 How to disassemble Lenovo Vibe K5 Plus, Step 13/2 How to disassemble Lenovo Vibe K5 Plus, Step 13/3

Step 13.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo Vibe K5 Plus in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo Vibe K5 Plus
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Lenovo Vibe K5 Plus — Lenovo Vibe K5 Plus A6020 released for markets in different countries.
