Lenovo Vibe P1m
Lenovo Vibe P1m
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

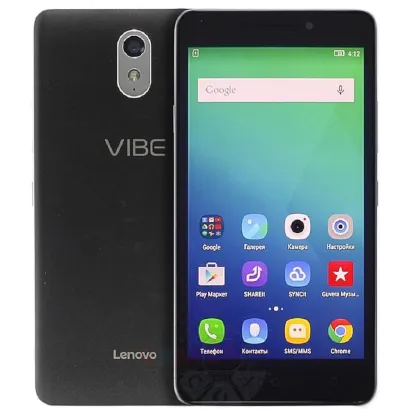

Disassembly/Repair of the mobile device Lenovo Vibe P1m (Lenovo Vibe P1m \ P1ma40) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Lenovo Vibe P1m, Step 1/1 How to disassemble Lenovo Vibe P1m, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo Vibe P1m, Step 2/1 How to disassemble Lenovo Vibe P1m, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Lenovo Vibe P1m, Step 3/1 How to disassemble Lenovo Vibe P1m, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Lenovo Vibe P1m, Step 4/1 How to disassemble Lenovo Vibe P1m, Step 4/2

Step 4.

Pry and remove the buzzer (speaker) assembly with antennas.

How to disassemble Lenovo Vibe P1m, Step 5/1 How to disassemble Lenovo Vibe P1m, Step 5/2 How to disassemble Lenovo Vibe P1m, Step 5/3 How to disassemble Lenovo Vibe P1m, Step 5/4

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Lenovo Vibe P1m, Step 6/1 How to disassemble Lenovo Vibe P1m, Step 6/2 How to disassemble Lenovo Vibe P1m, Step 6/3 How to disassemble Lenovo Vibe P1m, Step 6/4

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Lenovo Vibe P1m, Step 7/1 How to disassemble Lenovo Vibe P1m, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Lenovo Vibe P1m, Step 8/1 How to disassemble Lenovo Vibe P1m, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo Vibe P1m, Step 9/1 How to disassemble Lenovo Vibe P1m, Step 9/2 How to disassemble Lenovo Vibe P1m, Step 9/3 How to disassemble Lenovo Vibe P1m, Step 9/4 How to disassemble Lenovo Vibe P1m, Step 9/5

Step 9.

Disconnect connector and pry up the power & volume buttons flex cable.

How to disassemble Lenovo Vibe P1m, Step 10/1 How to disassemble Lenovo Vibe P1m, Step 10/2 How to disassemble Lenovo Vibe P1m, Step 10/3

Step 10.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble Lenovo Vibe P1m, Step 11/1 How to disassemble Lenovo Vibe P1m, Step 11/2 How to disassemble Lenovo Vibe P1m, Step 11/3

Step 11.

Remove the inter-board cable & coaxial cable & earpiece (speaker).

How to disassemble Lenovo Vibe P1m, Step 12/1 How to disassemble Lenovo Vibe P1m, Step 12/2 How to disassemble Lenovo Vibe P1m, Step 12/3

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo Vibe P1m in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo Vibe P1m
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Lenovo Vibe P1m — Lenovo Vibe P1m \ P1ma40 released for markets in different countries.
