Lenovo Vibe S1 Lite
Lenovo Vibe S1 Lite
Teardown difficulty:
Moderate
Duration:
9 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

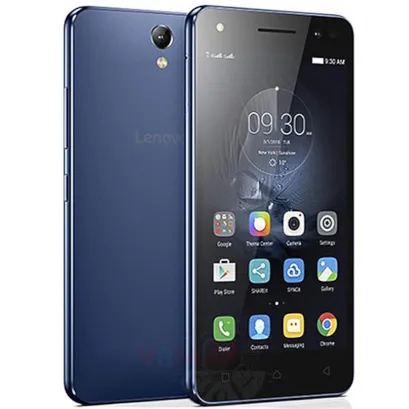

Disassembly/Repair of the mobile device Lenovo Vibe S1 Lite (Lenovo Vibe S1 Lite (S1La40)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Lenovo Vibe S1 Lite, Step 1/1 How to disassemble Lenovo Vibe S1 Lite, Step 1/2

Step 1.

Using the key tool, open the SIM and MMC cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Lenovo Vibe S1 Lite, Step 2/1 How to disassemble Lenovo Vibe S1 Lite, Step 2/2

Step 2.

Open the back cover.

How to disassemble Lenovo Vibe S1 Lite, Step 3/1 How to disassemble Lenovo Vibe S1 Lite, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Lenovo Vibe S1 Lite, Step 4/1 How to disassemble Lenovo Vibe S1 Lite, Step 4/2

Step 4.

Pry and remove the upper cover.

How to disassemble Lenovo Vibe S1 Lite, Step 5/1 How to disassemble Lenovo Vibe S1 Lite, Step 5/2 How to disassemble Lenovo Vibe S1 Lite, Step 5/3

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Lenovo Vibe S1 Lite, Step 6/1 How to disassemble Lenovo Vibe S1 Lite, Step 6/2

Step 6.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Lenovo Vibe S1 Lite, Step 7/1 How to disassemble Lenovo Vibe S1 Lite, Step 7/2

Step 7.

Pry and remove the battery.

How to disassemble Lenovo Vibe S1 Lite, Step 8/1 How to disassemble Lenovo Vibe S1 Lite, Step 8/2 How to disassemble Lenovo Vibe S1 Lite, Step 8/3 How to disassemble Lenovo Vibe S1 Lite, Step 8/4

Step 8.

Disconnect connectors on the lower PCB and pry up the vibration motor and remove the board.

How to disassemble Lenovo Vibe S1 Lite, Step 9/1 How to disassemble Lenovo Vibe S1 Lite, Step 9/2 How to disassemble Lenovo Vibe S1 Lite, Step 9/3

Step 9.

Disconnect connectors on the PCB.

How to disassemble Lenovo Vibe S1 Lite, Step 10/1 How to disassemble Lenovo Vibe S1 Lite, Step 10/2

Step 10.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Lenovo Vibe S1 Lite, Step 11/1 How to disassemble Lenovo Vibe S1 Lite, Step 11/2 How to disassemble Lenovo Vibe S1 Lite, Step 11/3 How to disassemble Lenovo Vibe S1 Lite, Step 11/4

Step 11.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble Lenovo Vibe S1 Lite, Step 12/1 How to disassemble Lenovo Vibe S1 Lite, Step 12/2

Step 12.

Pry & remove the coaxial cable.

How to disassemble Lenovo Vibe S1 Lite, Step 13/1 How to disassemble Lenovo Vibe S1 Lite, Step 13/2

Step 13.

Pry and remove the earpiece (speaker).

How to disassemble Lenovo Vibe S1 Lite, Step 14/1 How to disassemble Lenovo Vibe S1 Lite, Step 14/2 How to disassemble Lenovo Vibe S1 Lite, Step 14/3

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo Vibe S1 Lite in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo Vibe S1 Lite
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Lenovo Vibe S1 Lite — Lenovo Vibe S1 Lite (S1La40) released for markets in different countries.
