LG Class H650E
LG Class H650E
Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

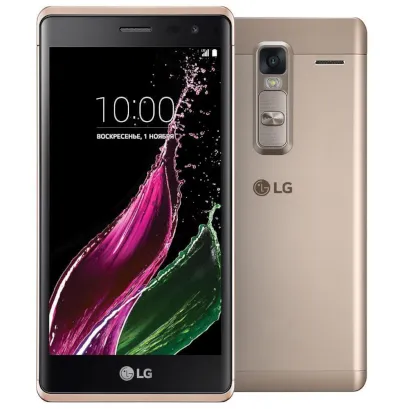

Disassembly/Repair of the mobile device LG Class H650E with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG Class H650E, Step 1/1 How to disassemble LG Class H650E, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble LG Class H650E, Step 2/1 How to disassemble LG Class H650E, Step 2/2

Step 2.

Using a screwdriver (hex T4), unscrew the 2 bolts on the end of the phone.

How to disassemble LG Class H650E, Step 3/1 How to disassemble LG Class H650E, Step 3/2

Step 3.

Remove the lower cover.

How to disassemble LG Class H650E, Step 4/1 How to disassemble LG Class H650E, Step 4/2

Step 4.

Using a screwdriver (hex T4), unscrew the 2 bolts on the end of the phone.

How to disassemble LG Class H650E, Step 5/1 How to disassemble LG Class H650E, Step 5/2

Step 5.

Open the back cover.

How to disassemble LG Class H650E, Step 6/1 How to disassemble LG Class H650E, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

How to disassemble LG Class H650E, Step 7/1 How to disassemble LG Class H650E, Step 7/2 How to disassemble LG Class H650E, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble LG Class H650E, Step 8/1 How to disassemble LG Class H650E, Step 8/2

Step 8.

Remove the PCB.

How to disassemble LG Class H650E, Step 9/1 How to disassemble LG Class H650E, Step 9/2

Step 9.

Disconnect connector on the PCB and remove the main camera.

How to disassemble LG Class H650E, Step 10/1 How to disassemble LG Class H650E, Step 10/2

Step 10.

Disconnect connector on the PCB and remove the front-facing camera.

How to disassemble LG Class H650E, Step 11/1 How to disassemble LG Class H650E, Step 11/2

Step 11.

Take out a flexible flat cable with connectors for cameras and a printed circuit board.

How to disassemble LG Class H650E, Step 12/1 How to disassemble LG Class H650E, Step 12/2

Step 12.

Pry & remove the jack socket.

How to disassemble LG Class H650E, Step 13/1 How to disassemble LG Class H650E, Step 13/2

Step 13.

Pry and remove the lower part with buzzer (speaker).

How to disassemble LG Class H650E, Step 14/1 How to disassemble LG Class H650E, Step 14/2 How to disassemble LG Class H650E, Step 14/3

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of LG Class H650E in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG Class H650E
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models LG Class H650E released for markets in different countries.
