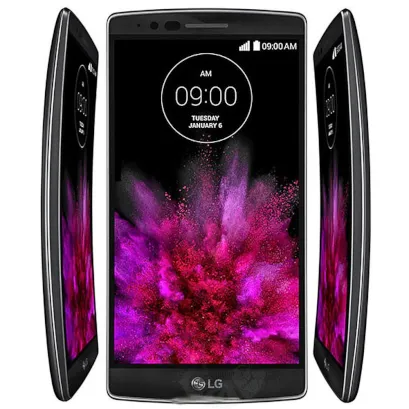

LG G Flex 2 H959
LG G Flex 2 H959
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG G Flex 2 H959 (LG H955 (EMEA), LG LS996 (Sprint), LG H950 (AT&T), LG US995 (U.S. Cellular)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG G Flex 2 H959, Step 1/1 How to disassemble LG G Flex 2 H959, Step 1/2

Step 1.

Open the back cover.

How to disassemble LG G Flex 2 H959, Step 2/1 How to disassemble LG G Flex 2 H959, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble LG G Flex 2 H959, Step 3/1 How to disassemble LG G Flex 2 H959, Step 3/2

Step 3.

Pry and remove the cover.

How to disassemble LG G Flex 2 H959, Step 4/1 How to disassemble LG G Flex 2 H959, Step 4/2 How to disassemble LG G Flex 2 H959, Step 4/3

Step 4.

Pry and remove the buzzer (speaker) assembly.

How to disassemble LG G Flex 2 H959, Step 5/1 How to disassemble LG G Flex 2 H959, Step 5/2 How to disassemble LG G Flex 2 H959, Step 5/3 How to disassemble LG G Flex 2 H959, Step 5/4

Step 5.

Disconnect connectors on the lower PCB and inter-board cable connector on the main board.

How to disassemble LG G Flex 2 H959, Step 6/1 How to disassemble LG G Flex 2 H959, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble LG G Flex 2 H959, Step 7/1 How to disassemble LG G Flex 2 H959, Step 7/2

Step 7.

Remove the lower PCB.

How to disassemble LG G Flex 2 H959, Step 8/1 How to disassemble LG G Flex 2 H959, Step 8/2

Step 8.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

Also, for careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble LG G Flex 2 H959, Step 9/1 How to disassemble LG G Flex 2 H959, Step 9/2 How to disassemble LG G Flex 2 H959, Step 9/3

Step 9.

Disconnect connectors on the PCB.

How to disassemble LG G Flex 2 H959, Step 10/1 How to disassemble LG G Flex 2 H959, Step 10/2

Step 10.

Remove the PCB.

How to disassemble LG G Flex 2 H959, Step 11/1 How to disassemble LG G Flex 2 H959, Step 11/2

Step 11.

Pry and remove the main and front (selfie) cameras.

How to disassemble LG G Flex 2 H959, Step 12/1 How to disassemble LG G Flex 2 H959, Step 12/2 How to disassemble LG G Flex 2 H959, Step 12/3

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG G Flex 2 H959 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG G Flex 2 H959
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models LG G Flex 2 H959 — LG H955 (EMEA), LG LS996 (Sprint), LG H950 (AT&T), LG US995 (U.S. Cellular) released for markets in different countries.
