Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

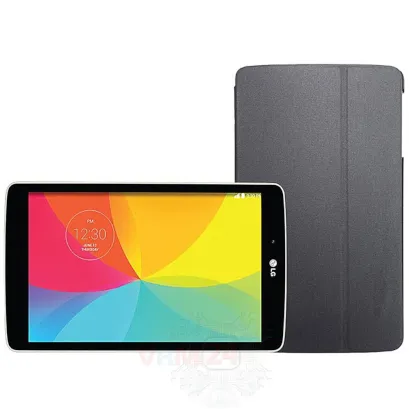

Disassembly/Repair of the mobile device LG G Pad 8.0'' V490 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG G Pad 8.0'' V490, Step 1/1 How to disassemble LG G Pad 8.0'' V490, Step 1/2 How to disassemble LG G Pad 8.0'' V490, Step 1/3

Step 1.

Open the back cover.


How to disassemble LG G Pad 8.0'' V490, Step 2/1 How to disassemble LG G Pad 8.0'' V490, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the buzzer (speaker).


How to disassemble LG G Pad 8.0'' V490, Step 3/1 How to disassemble LG G Pad 8.0'' V490, Step 3/2

Step 3.

Pry and remove the buzzer (speaker).


How to disassemble LG G Pad 8.0'' V490, Step 4/1 How to disassemble LG G Pad 8.0'' V490, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.


How to disassemble LG G Pad 8.0'' V490, Step 5/1 How to disassemble LG G Pad 8.0'' V490, Step 5/2 How to disassemble LG G Pad 8.0'' V490, Step 5/3 How to disassemble LG G Pad 8.0'' V490, Step 5/4

Step 5.

Disconnect connectors and remove the inter-board cable with the charging port.


How to disassemble LG G Pad 8.0'' V490, Step 6/1 How to disassemble LG G Pad 8.0'' V490, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the battery.


How to disassemble LG G Pad 8.0'' V490, Step 7/1 How to disassemble LG G Pad 8.0'' V490, Step 7/2

Step 7.

Disconnect connector on the PCB and remove the main camera.


How to disassemble LG G Pad 8.0'' V490, Step 8/1 How to disassemble LG G Pad 8.0'' V490, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the PCB.


How to disassemble LG G Pad 8.0'' V490, Step 9/1 How to disassemble LG G Pad 8.0'' V490, Step 9/2

Step 9.

Remove the PCB.


How to disassemble LG G Pad 8.0'' V490, Step 10/1 How to disassemble LG G Pad 8.0'' V490, Step 10/2

Step 10.

Pry and remove the headphone jack/socket.


How to disassemble LG G Pad 8.0'' V490, Step 11/1 How to disassemble LG G Pad 8.0'' V490, Step 11/2 How to disassemble LG G Pad 8.0'' V490, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG G Pad 8.0'' V490 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG G Pad 8.0'' V490 released for markets in different countries.
