Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

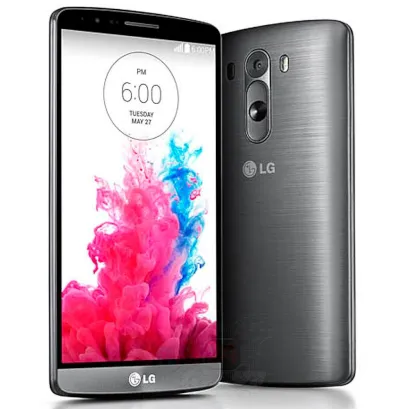

Disassembly/Repair of the mobile device LG G3s D724 (LG G3 Beat, LG G3 Vigor (AT&T, Sprint) Versions: LG D722 for Europe; LG D725 for AT&T; LG D728 for China; LG D722K for Taiwan, Hong Kong, India; LG D724 for CIS) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG G3s D724, Step 1/1 How to disassemble LG G3s D724, Step 1/2

Step 1.

Open the back cover.


How to disassemble LG G3s D724, Step 2/1 How to disassemble LG G3s D724, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble LG G3s D724, Step 3/1 How to disassemble LG G3s D724, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.


How to disassemble LG G3s D724, Step 4/1 How to disassemble LG G3s D724, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble LG G3s D724, Step 5/1

Step 5.

The middle frame.


How to disassemble LG G3s D724, Step 6/1 How to disassemble LG G3s D724, Step 6/2

Step 6.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.


How to disassemble LG G3s D724, Step 7/1 How to disassemble LG G3s D724, Step 7/2

Step 7.

Disconnect connectors on the PCB.


How to disassemble LG G3s D724, Step 8/1 How to disassemble LG G3s D724, Step 8/2

Step 8.

Remove the PCB.


How to disassemble LG G3s D724, Step 9/1 How to disassemble LG G3s D724, Step 9/2 How to disassemble LG G3s D724, Step 9/3

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG G3s D724 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG G3s D724 — LG G3 Beat, LG G3 Vigor (AT&T, Sprint) Versions: LG D722 for Europe; LG D725 for AT&T; LG D728 for China; LG D722K for Taiwan, Hong Kong, India; LG D724 for CIS released for markets in different countries.
