Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

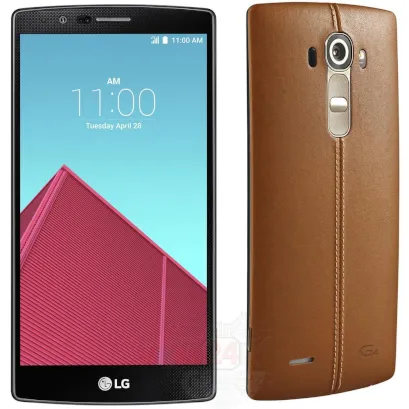

Disassembly/Repair of the mobile device LG G4 H818 with each step description and the required set of tools.


Author, currently - Quality Assurance Specialist


How to disassemble LG G4 H818, Step 1/1 How to disassemble LG G4 H818, Step 1/2

Step 1.

Open the back cover.


How to disassemble LG G4 H818, Step 2/1 How to disassemble LG G4 H818, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble LG G4 H818, Step 3/1 How to disassemble LG G4 H818, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.


How to disassemble LG G4 H818, Step 4/1 How to disassemble LG G4 H818, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble LG G4 H818, Step 5/1 How to disassemble LG G4 H818, Step 5/2 How to disassemble LG G4 H818, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the front (selfie) camera.


How to disassemble LG G4 H818, Step 6/1 How to disassemble LG G4 H818, Step 6/2 How to disassemble LG G4 H818, Step 6/3 How to disassemble LG G4 H818, Step 6/4

Step 6.

Disconnect connectors on the PCB and remove it.


How to disassemble LG G4 H818, Step 7/1 How to disassemble LG G4 H818, Step 7/2 How to disassemble LG G4 H818, Step 7/3

Step 7.

Pry and remove the main camera.


How to disassemble LG G4 H818, Step 8/1 How to disassemble LG G4 H818, Step 8/2 How to disassemble LG G4 H818, Step 8/3

Step 8.

Pry and remove the vibration motor and earpiece (speaker).


How to disassemble LG G4 H818, Step 9/1 How to disassemble LG G4 H818, Step 9/2 How to disassemble LG G4 H818, Step 9/3

Step 9.

The display module frame.

Detailed disassembly instructions of LG G4 H818 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG G4 H818 released for markets in different countries.
