Disassembly/Repair of the mobile device LG G4c H522y with each step description and the required set of tools.

3680

Views

—

Share

7

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

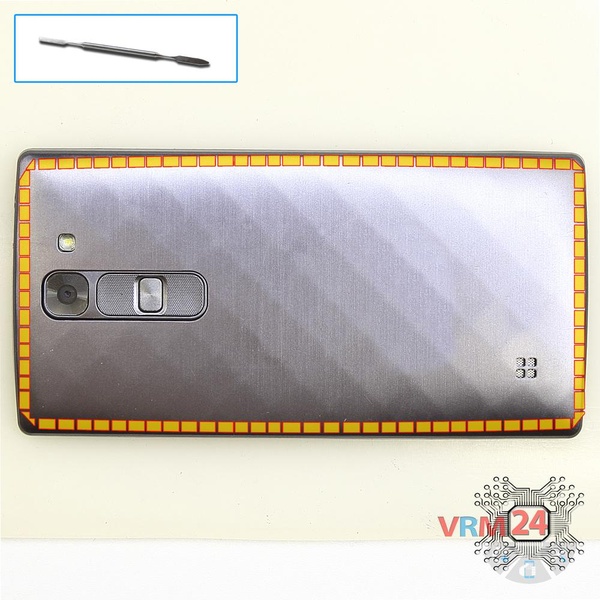

Open the back cover

Open the back cover.

Remove the battery

Step 2.

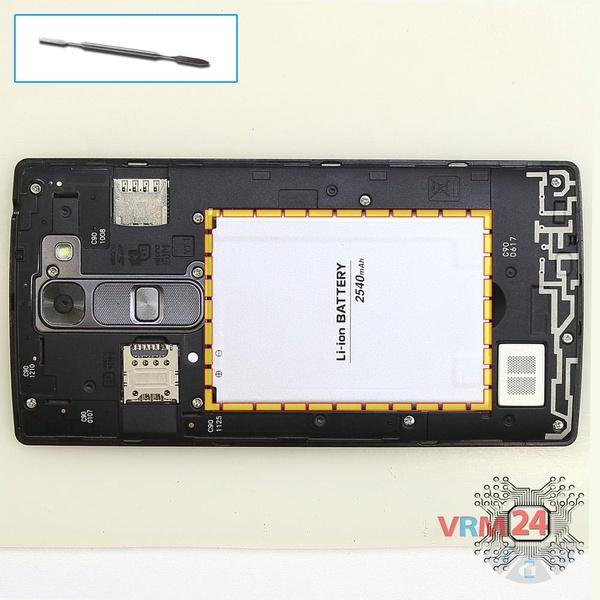

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

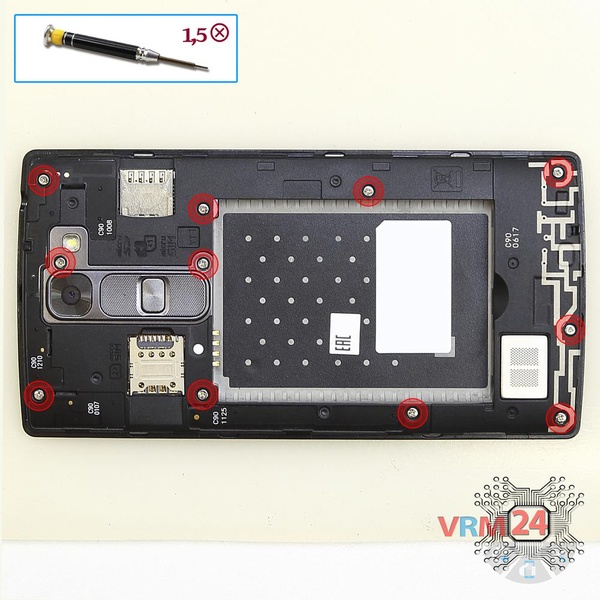

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

Open the mid-frame

Step 4.

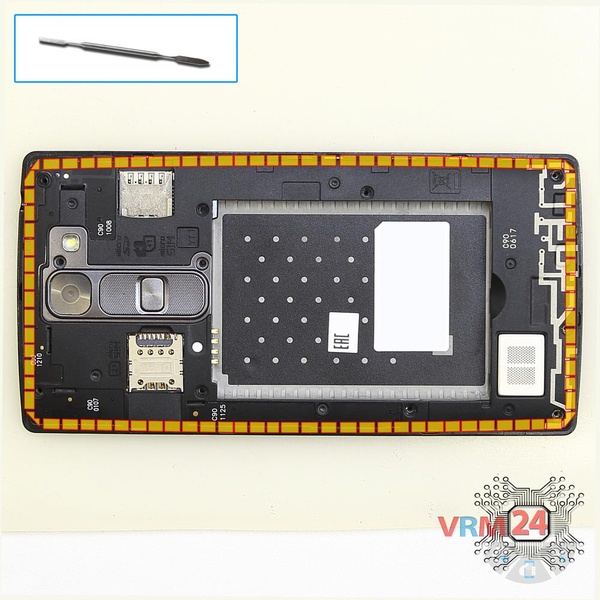

Open the mid-frame

Pry and remove the middle frame.

Remove the cameras

Step 5.

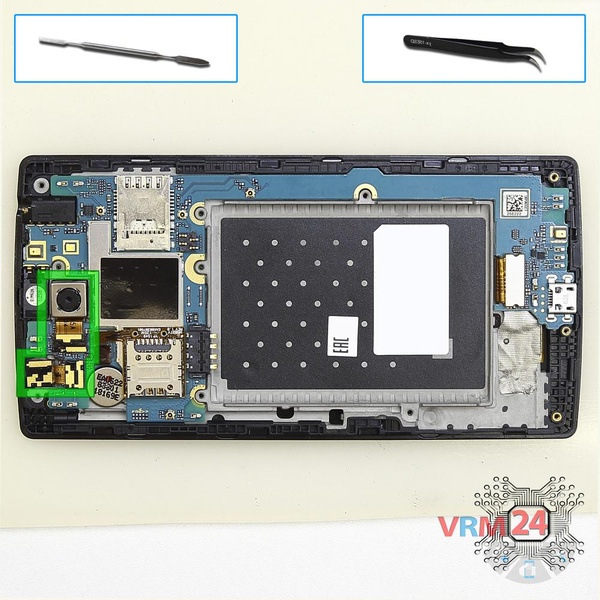

Remove the cameras

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

Disconnect the connector

Step 6.

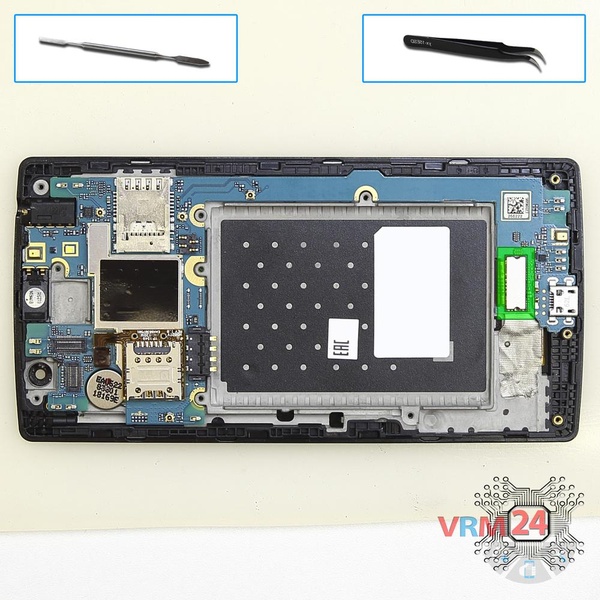

Disconnect the connector

Disconnect the connector on the PCB.

Remove the motherboard

Step 7.

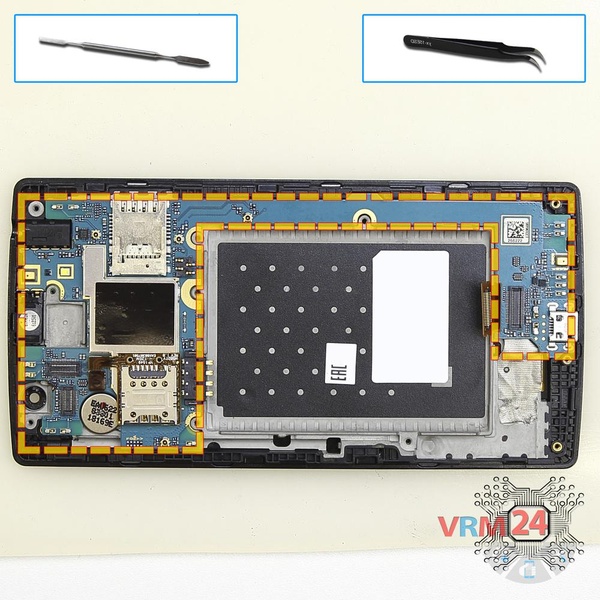

Remove the motherboard

Remove the PCB.

Remove the earpiece speaker

Step 8.

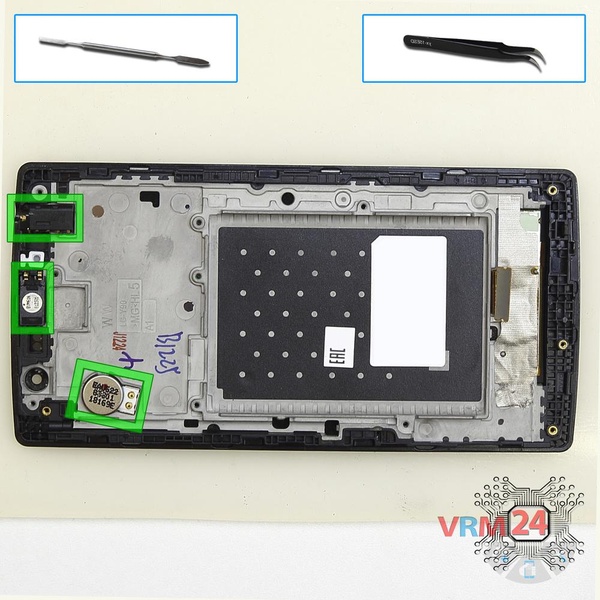

Remove the earpiece speaker

Pry and remove the earpiece (speaker), headphone jack/socket and vibration motor.

In the display frame remained

Step 9.

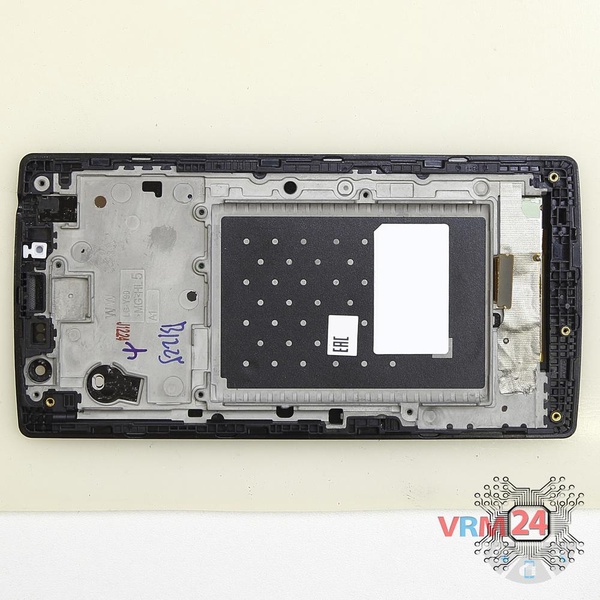

In the display frame remained

The display module frame.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 4 minutes in time. Our manual is suitable for all models LG G4c H522y or ЛГ Г4с released for markets in different countries.
#instructions #LG #LG G4c H522y
Detailed disassembly instructions of LG G4c H522y in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
