LG G6 H870
LG G6 H870 355 0
Teardown difficulty:
Moderate

Recommended tools

Disassembly of the mobile device LG G6 H870 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG G6 H870, Step 1/1 How to disassemble LG G6 H870, Step 1/2

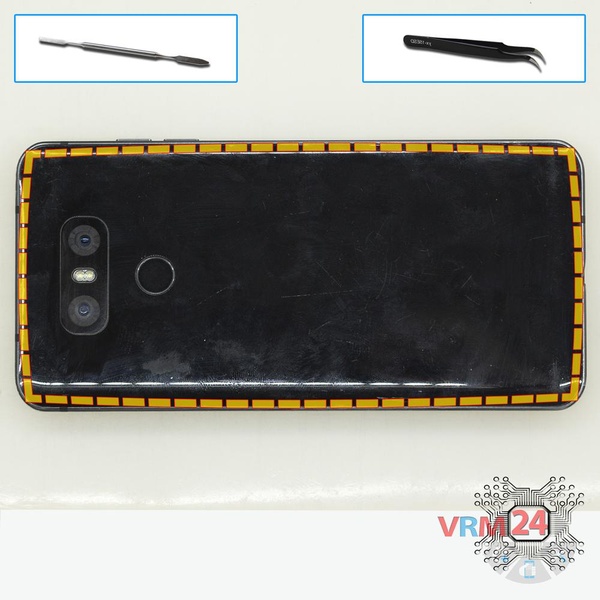

Step 1

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble LG G6 H870, Step 2/1 How to disassemble LG G6 H870, Step 2/2

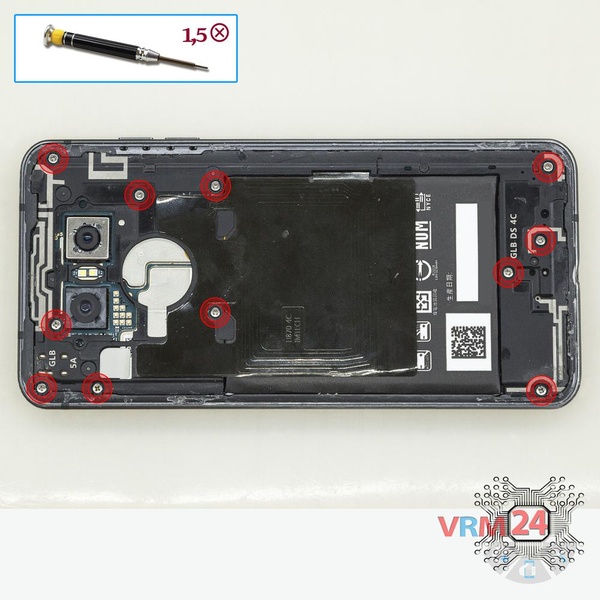

Step 2

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble LG G6 H870, Step 3/1 How to disassemble LG G6 H870, Step 3/2

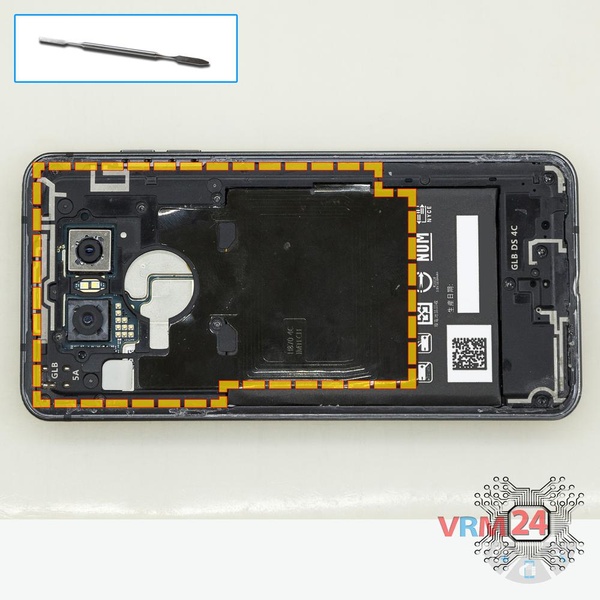

Step 3

Pry and remove the middle frame with an NFC tag.

How to disassemble LG G6 H870, Step 4/1 How to disassemble LG G6 H870, Step 4/2

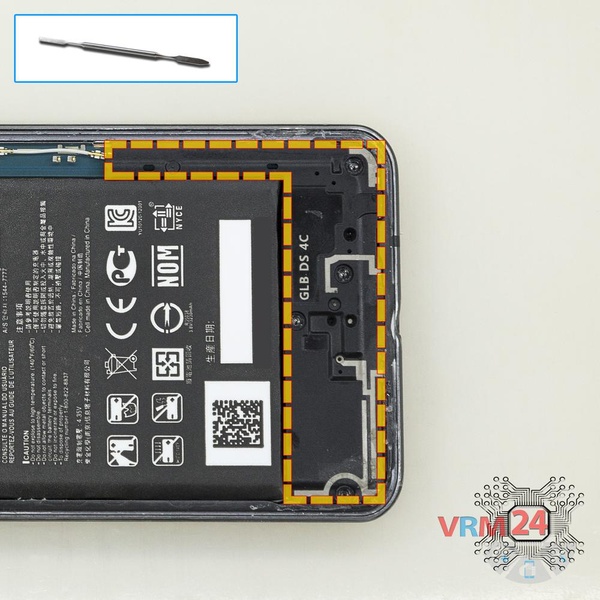

Step 4

Pry and remove the buzzer (speaker) assembly.

How to disassemble LG G6 H870, Step 5/1 How to disassemble LG G6 H870, Step 5/2 How to disassemble LG G6 H870, Step 5/3

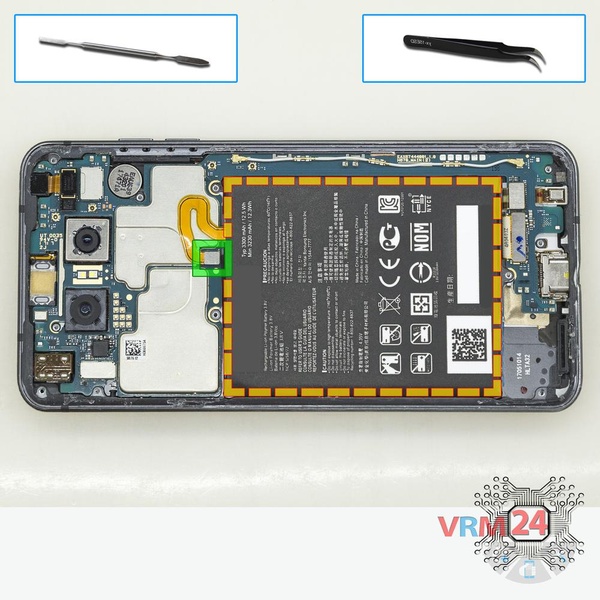

Step 5

Disconnect the connector on PCB and remove the battery.

How to disassemble LG G6 H870, Step 6/1 How to disassemble LG G6 H870, Step 6/2

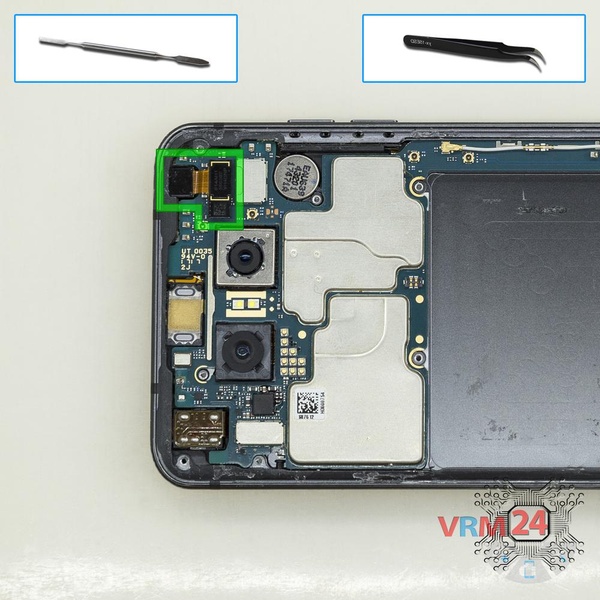

Step 6

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble LG G6 H870, Step 7/1 How to disassemble LG G6 H870, Step 7/2

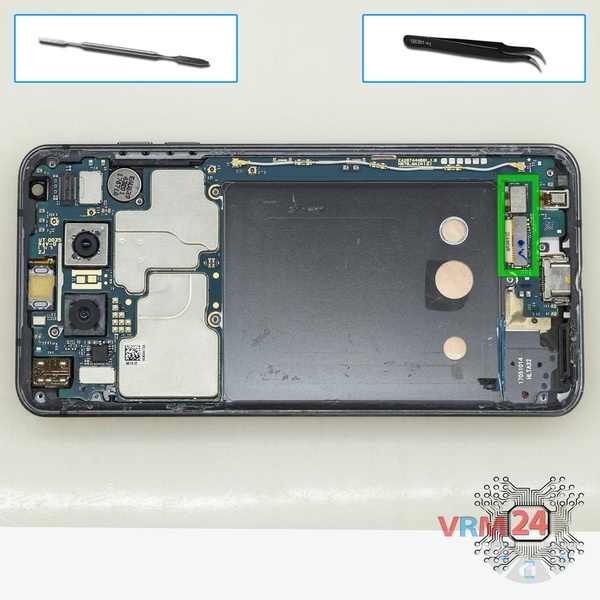

Step 7

Disconnect connectors on the PCB.

How to disassemble LG G6 H870, Step 8/1 How to disassemble LG G6 H870, Step 8/2

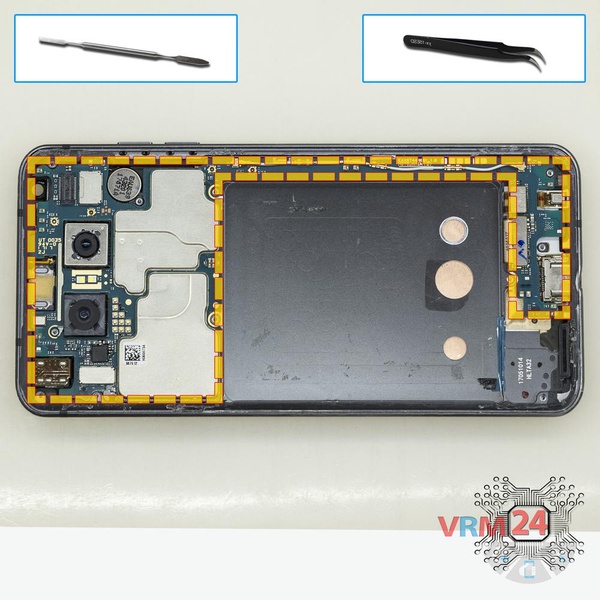

Step 8

Remove the PCB.

How to disassemble LG G6 H870, Step 9/1 How to disassemble LG G6 H870, Step 9/2

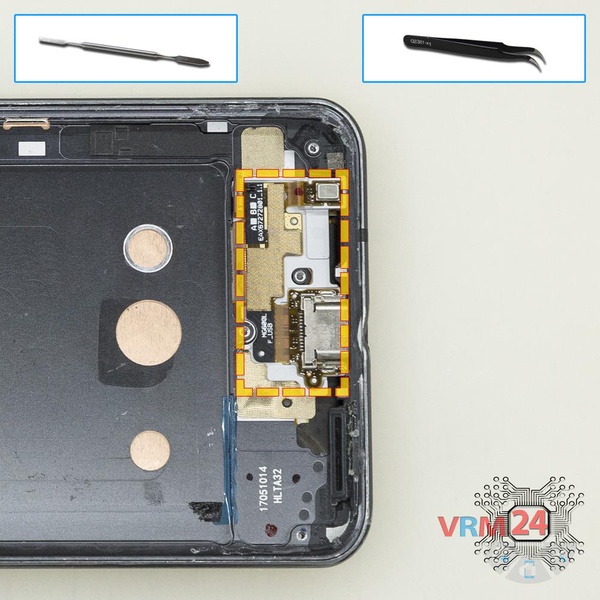

Step 9

Remove the lower PCB with a charging port and microphone.

How to disassemble LG G6 H870, Step 10/1 How to disassemble LG G6 H870, Step 10/2 How to disassemble LG G6 H870, Step 10/3

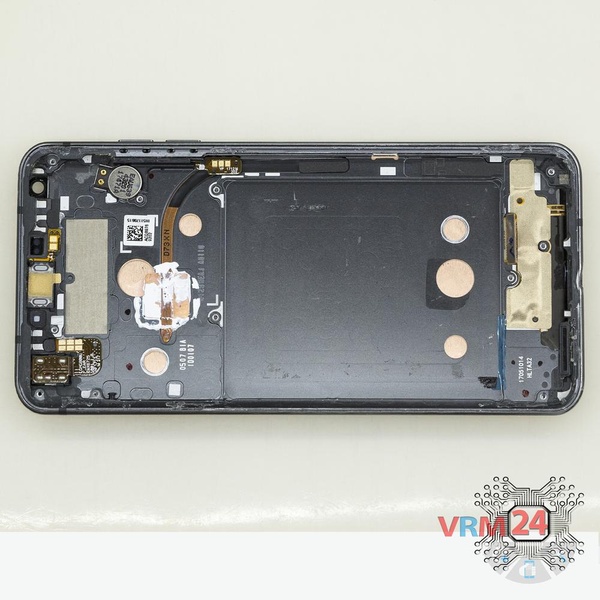

Step 10

Parts are in the frame of the display module.

Detailed disassembly instructions of LG G6 H870 in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG G6 H870 released for markets in different countries.
