Disassembly/Repair of the mobile device LG K10 K430DS (LG K420N (Europe); K430DS (Russia); K430DSF (LATAM); K430DSY (Taiwan)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG K10 K430DS, Step 1/1 How to disassemble LG K10 K430DS, Step 1/2

Step 1.

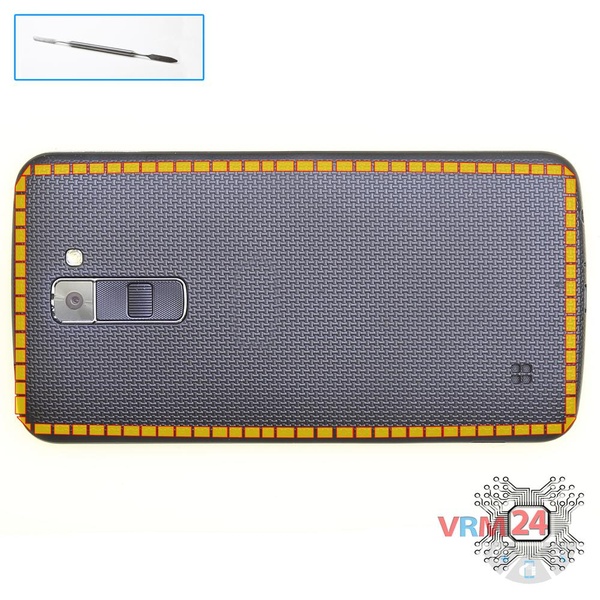

Open the back cover.


How to disassemble LG K10 K430DS, Step 2/1 How to disassemble LG K10 K430DS, Step 2/2

Step 2.

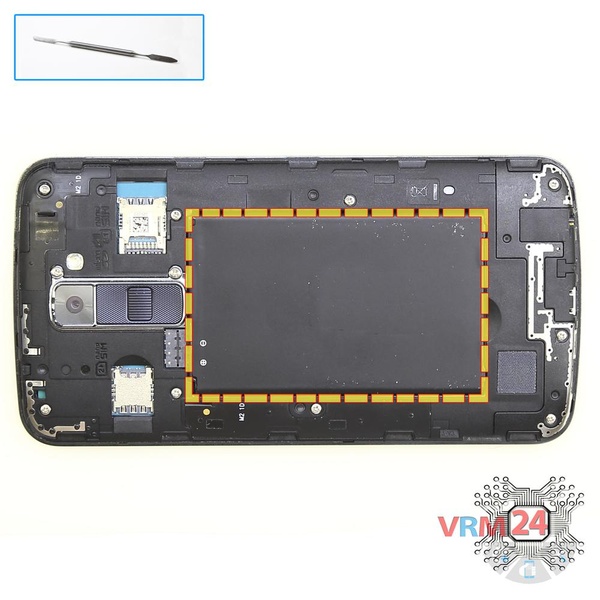

Lift and remove the battery.


How to disassemble LG K10 K430DS, Step 3/1 How to disassemble LG K10 K430DS, Step 3/2

Step 3.

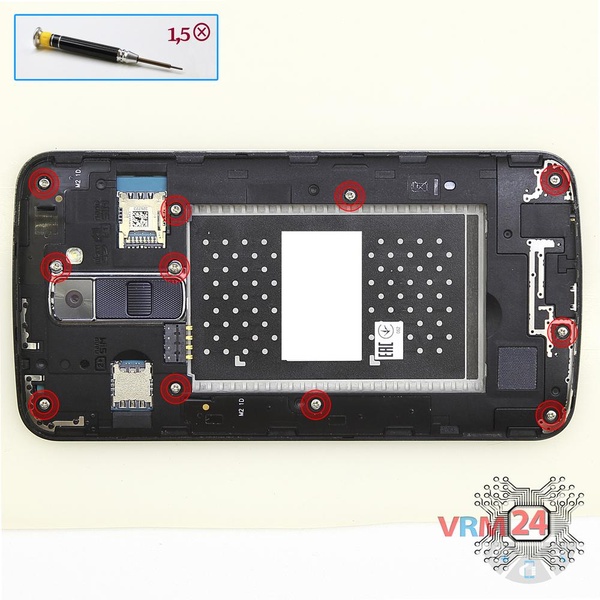

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.


How to disassemble LG K10 K430DS, Step 4/1 How to disassemble LG K10 K430DS, Step 4/2 How to disassemble LG K10 K430DS, Step 4/3

Step 4.

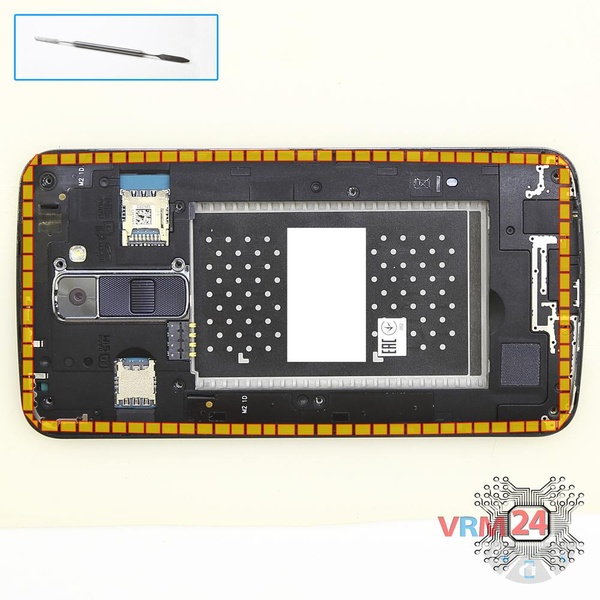

Pry and remove the middle frame.


How to disassemble LG K10 K430DS, Step 5/1 How to disassemble LG K10 K430DS, Step 5/2 How to disassemble LG K10 K430DS, Step 5/3

Step 5.

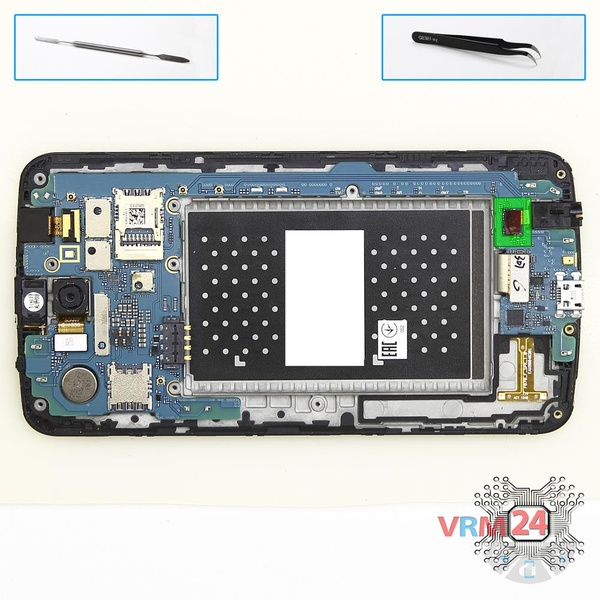

Disconnect connector on the PCB and remove the headphone jack/socket.


How to disassemble LG K10 K430DS, Step 6/1 How to disassemble LG K10 K430DS, Step 6/2 How to disassemble LG K10 K430DS, Step 6/3

Step 6.

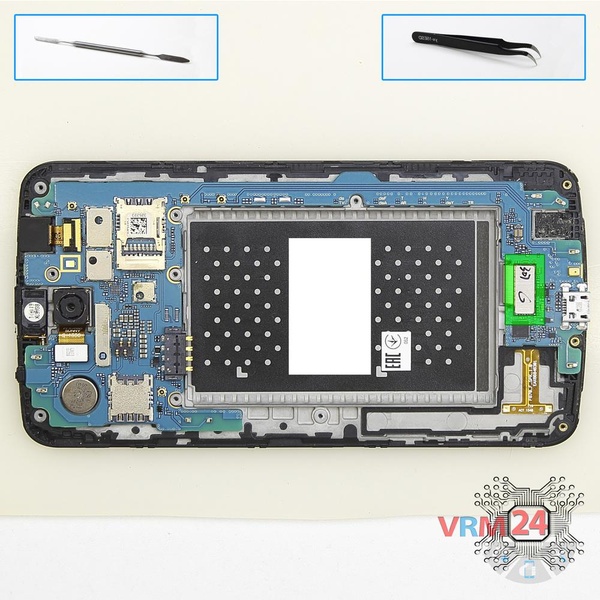

Disconnect the connector on the PCB.


How to disassemble LG K10 K430DS, Step 7/1 How to disassemble LG K10 K430DS, Step 7/2 How to disassemble LG K10 K430DS, Step 7/3

Step 7.

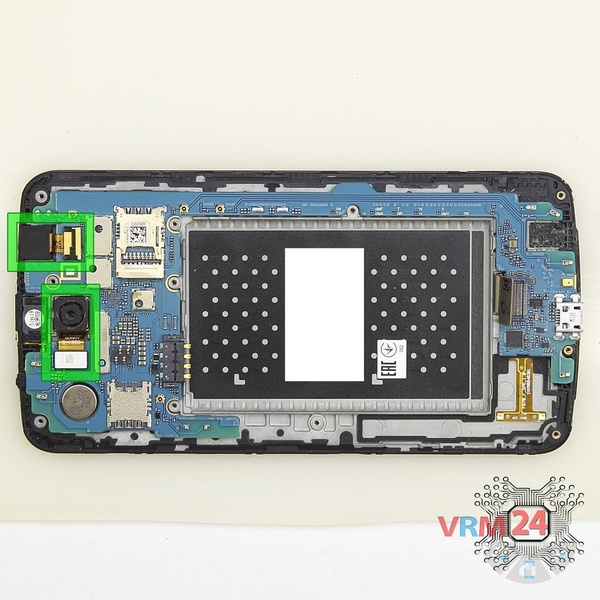

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.


How to disassemble LG K10 K430DS, Step 8/1 How to disassemble LG K10 K430DS, Step 8/2

Step 8.

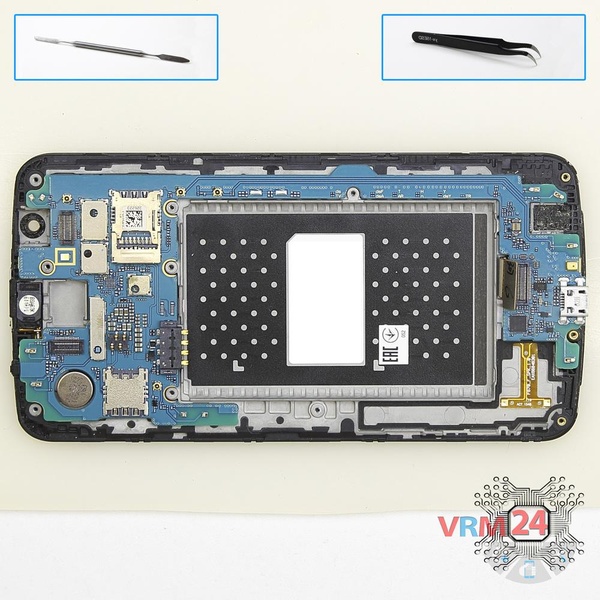

Remove the PCB.


How to disassemble LG K10 K430DS, Step 9/1 How to disassemble LG K10 K430DS, Step 9/2

Step 9.

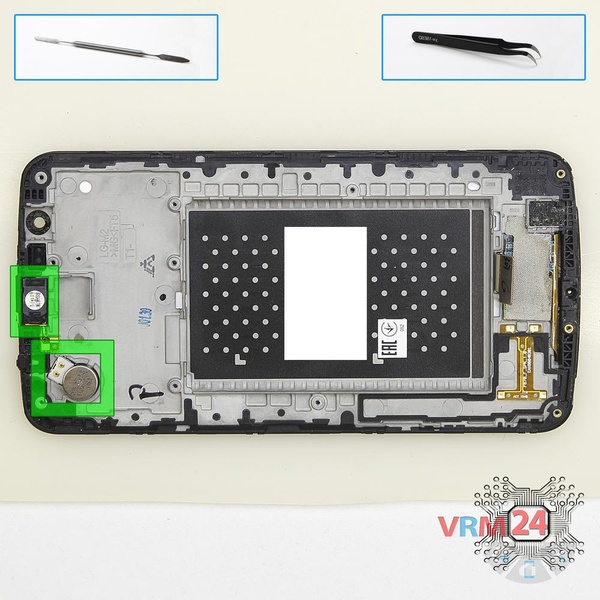

Pry and remove the earpiece (speaker) and vibration motor.


How to disassemble LG K10 K430DS, Step 10/1 How to disassemble LG K10 K430DS, Step 10/2

Step 10.

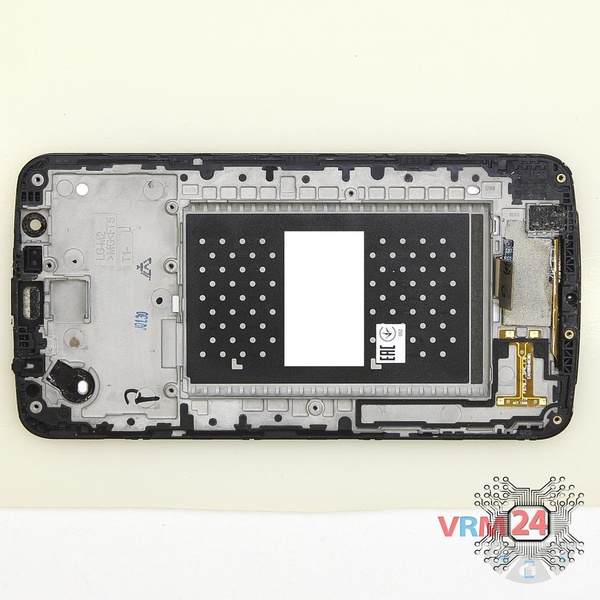

Parts are in the frame of the display module.

Detailed disassembly instructions of LG K10 K430DS in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models LG K10 K430DS — LG K420N (Europe); K430DS (Russia); K430DSF (LATAM); K430DSY (Taiwan) released for markets in different countries.
