Teardown difficulty:
Moderate

Recommended tools

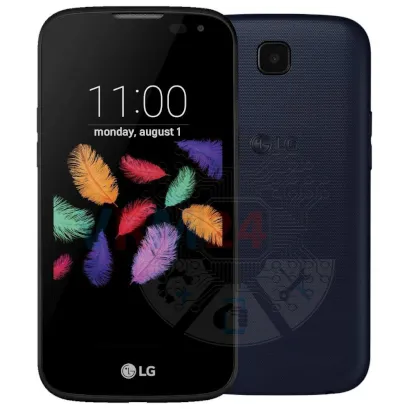

Disassembly/Repair of the mobile device LG K3 K100 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG K3 K100, Step 1/1 How to disassemble LG K3 K100, Step 1/2

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble LG K3 K100, Step 2/1 How to disassemble LG K3 K100, Step 2/2 How to disassemble LG K3 K100, Step 2/3 How to disassemble LG K3 K100, Step 2/4

Step 2. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.


How to disassemble LG K3 K100, Step 3/1 How to disassemble LG K3 K100, Step 3/2 How to disassemble LG K3 K100, Step 3/3

Step 3. Remove the battery

Carefully remove the battery.

ℹ️️ The LG K3 K100 model has a battery BL-49JH with 1940 mAh capacity (aka rechargeable battery).


How to disassemble LG K3 K100, Step 4/1 How to disassemble LG K3 K100, Step 4/2 How to disassemble LG K3 K100, Step 4/3

Step 4. Open the cover

Remove the cover with antennas.


How to disassemble LG K3 K100, Step 5/1 How to disassemble LG K3 K100, Step 5/2

Step 5. Disconnect the connectors

Pry up the connectors of the display and touchscreen.


How to disassemble LG K3 K100, Step 6/1 How to disassemble LG K3 K100, Step 6/2 How to disassemble LG K3 K100, Step 6/3

Step 6. Open the display module

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

The process can be seen in our video entirely so as well as in detail, at the end of the instructions.


How to disassemble LG K3 K100, Step 7/1 How to disassemble LG K3 K100, Step 7/2 How to disassemble LG K3 K100, Step 7/3 How to disassemble LG K3 K100, Step 7/4

Step 7. Open the covers

Open two covers securing the motherboard.


How to disassemble LG K3 K100, Step 8/1 How to disassemble LG K3 K100, Step 8/2 How to disassemble LG K3 K100, Step 8/3 How to disassemble LG K3 K100, Step 8/4

Step 8. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble LG K3 K100, Step 9/1 How to disassemble LG K3 K100, Step 9/2 How to disassemble LG K3 K100, Step 9/3

Step 9. Remove the cameras

Pry up the connectors and remove the front (selfie) and rear cameras.

Detailed disassembly instructions of LG K3 K100 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 9 minutes in time. Our manual is suitable for all models LG K3 K100 released for markets in different countries.
