Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Disassembly/Repair of the mobile device LG K5 X220 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG K5 X220, Step 1/1 How to disassemble LG K5 X220, Step 1/2

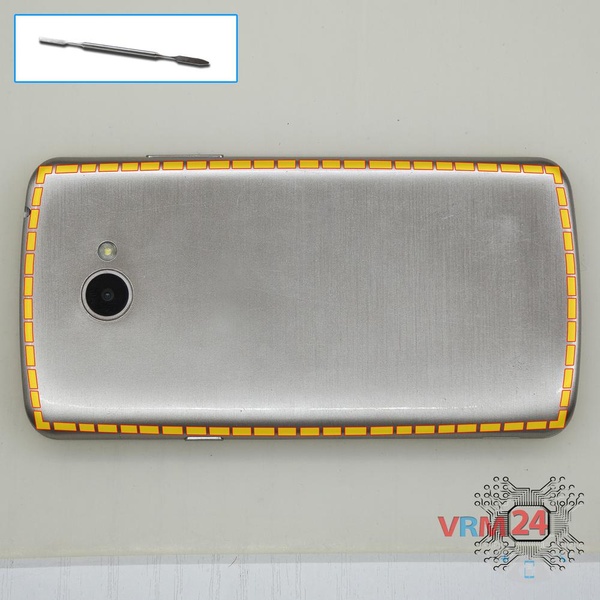

Step 1.

Open the back cover.


How to disassemble LG K5 X220, Step 2/1 How to disassemble LG K5 X220, Step 2/2

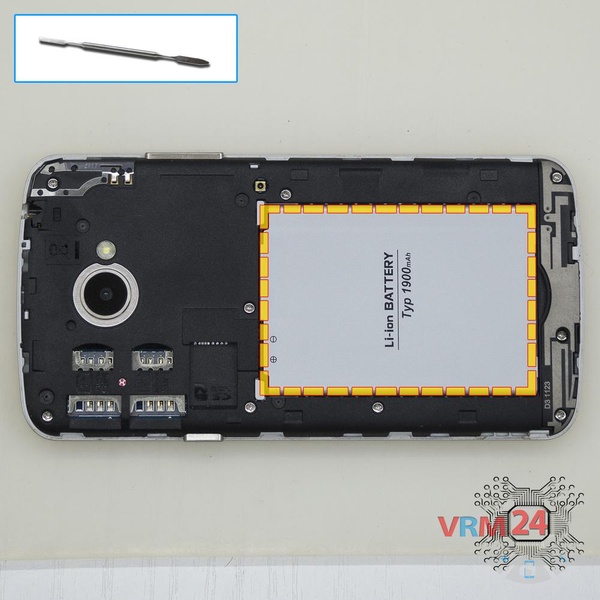

Step 2.

Lift and remove the battery.


How to disassemble LG K5 X220, Step 3/1 How to disassemble LG K5 X220, Step 3/2

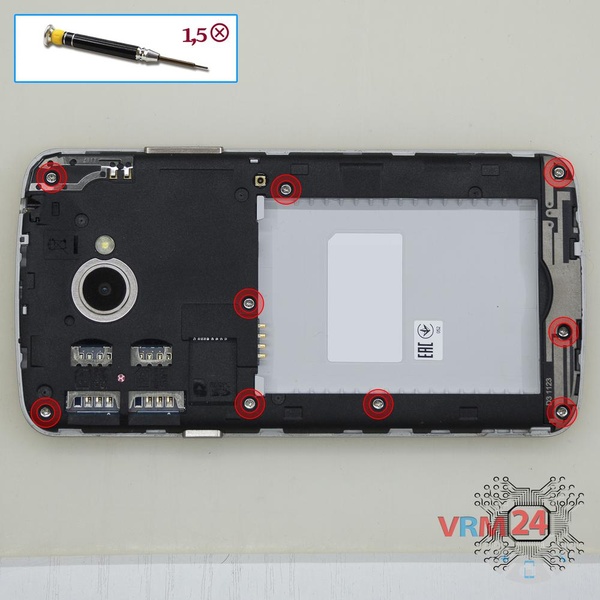

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble LG K5 X220, Step 4/1 How to disassemble LG K5 X220, Step 4/2

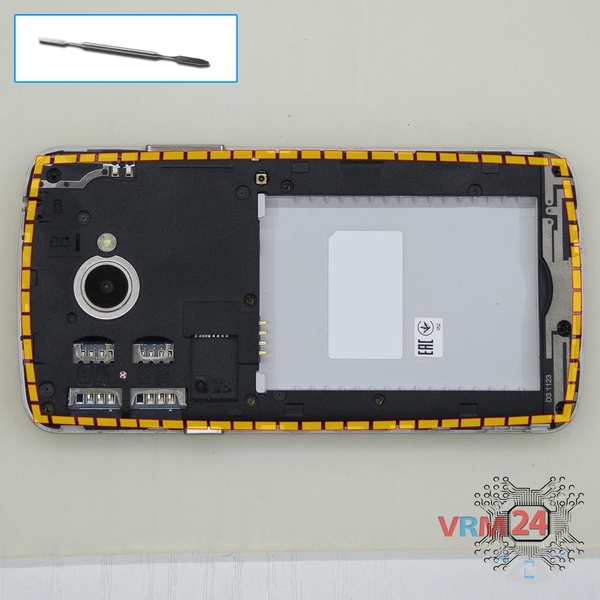

Step 4.

Pry and remove the middle frame.


How to disassemble LG K5 X220, Step 5/1 How to disassemble LG K5 X220, Step 5/2 How to disassemble LG K5 X220, Step 5/3

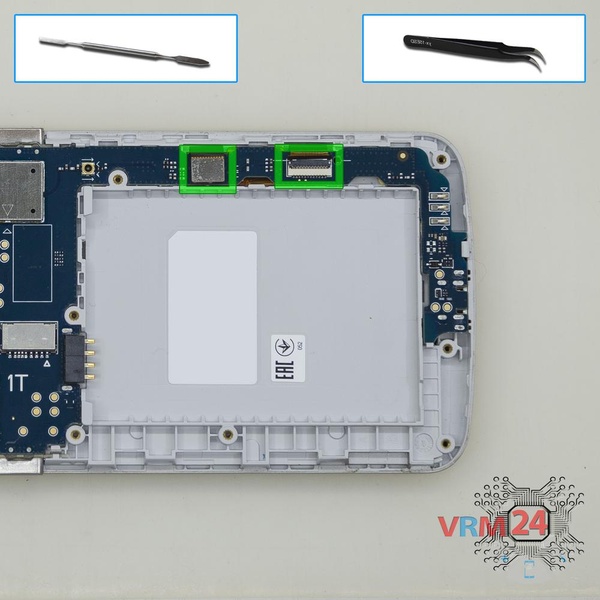

Step 5.

Disconnect connectors on the PCB.


How to disassemble LG K5 X220, Step 6/1 How to disassemble LG K5 X220, Step 6/2

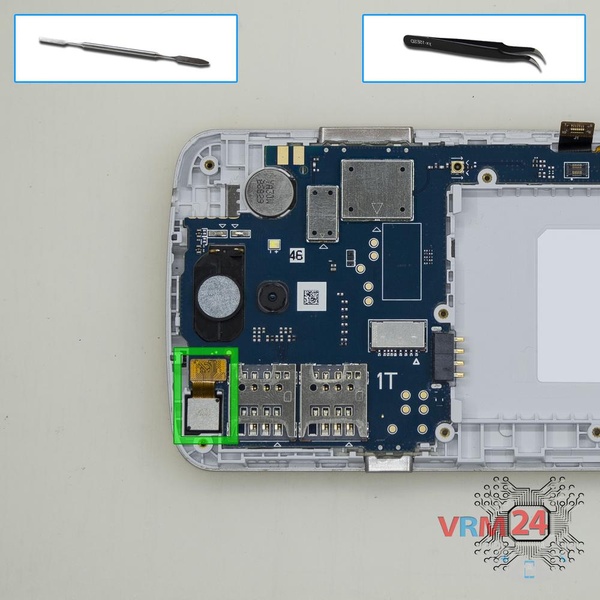

Step 6.

Disconnect connector on the PCB and remove the front-facing camera.


How to disassemble LG K5 X220, Step 7/1 How to disassemble LG K5 X220, Step 7/2

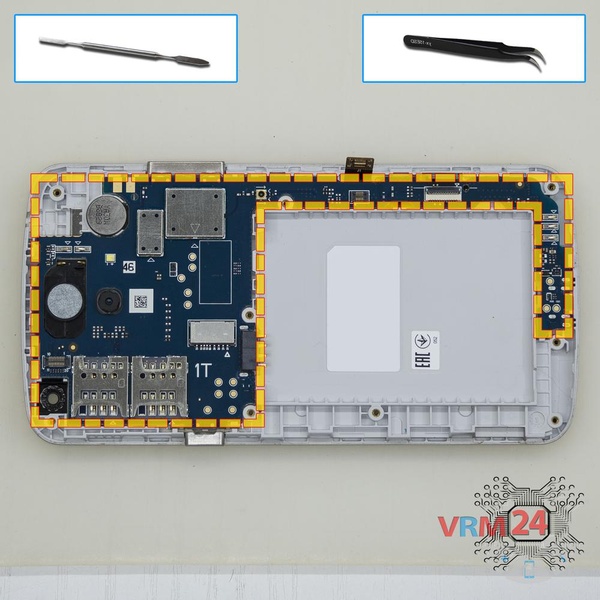

Step 7.

Remove the PCB.


How to disassemble LG K5 X220, Step 8/1 How to disassemble LG K5 X220, Step 8/2 How to disassemble LG K5 X220, Step 8/3

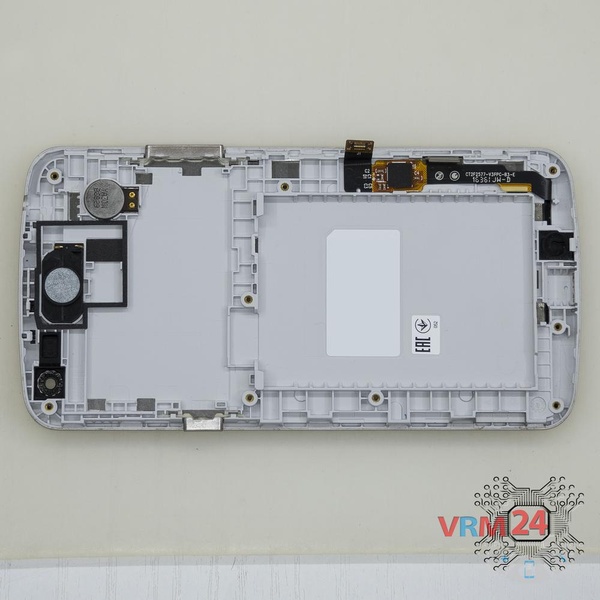

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of LG K5 X220 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG K5 X220 released for markets in different countries.
