Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

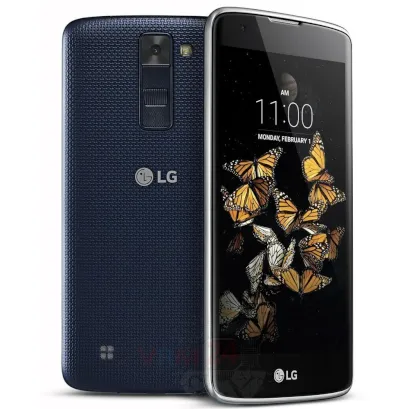

Disassembly/Repair of the mobile device LG K8 K350E (LG K8 K350N) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG K8 K350E, Step 1/1 How to disassemble LG K8 K350E, Step 1/2

Step 1.

Open the back cover.


How to disassemble LG K8 K350E, Step 2/1 How to disassemble LG K8 K350E, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble LG K8 K350E, Step 3/1 How to disassemble LG K8 K350E, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble LG K8 K350E, Step 4/1 How to disassemble LG K8 K350E, Step 4/2 How to disassemble LG K8 K350E, Step 4/3

Step 4.

Pry and remove the middle frame.


How to disassemble LG K8 K350E, Step 5/1 How to disassemble LG K8 K350E, Step 5/2

Step 5.

Disconnect connector on the PCB and remove the front (selfie) camera.


How to disassemble LG K8 K350E, Step 6/1 How to disassemble LG K8 K350E, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble LG K8 K350E, Step 7/1 How to disassemble LG K8 K350E, Step 7/2 How to disassemble LG K8 K350E, Step 7/3

Step 7.

Disconnect connectors on the PCB.


How to disassemble LG K8 K350E, Step 8/1 How to disassemble LG K8 K350E, Step 8/2

Step 8.

Remove the PCB.


How to disassemble LG K8 K350E, Step 9/1 How to disassemble LG K8 K350E, Step 9/2 How to disassemble LG K8 K350E, Step 9/3 How to disassemble LG K8 K350E, Step 9/4

Step 9.

Pry and remove the earpiece (speaker) and headphone jack/socket.


How to disassemble LG K8 K350E, Step 10/1 How to disassemble LG K8 K350E, Step 10/2 How to disassemble LG K8 K350E, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG K8 K350E in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG K8 K350E — LG K8 K350N released for markets in different countries.
