Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

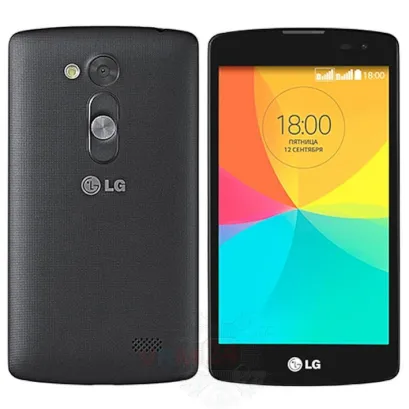

Disassembly/Repair of the mobile device LG L Fino D295 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG L Fino D295, Step 1/1 How to disassemble LG L Fino D295, Step 1/2

Step 1.

Open the back cover.


How to disassemble LG L Fino D295, Step 2/1 How to disassemble LG L Fino D295, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble LG L Fino D295, Step 3/1 How to disassemble LG L Fino D295, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.


How to disassemble LG L Fino D295, Step 4/1 How to disassemble LG L Fino D295, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble LG L Fino D295, Step 5/1 How to disassemble LG L Fino D295, Step 5/2 How to disassemble LG L Fino D295, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the front (selfie) camera.


How to disassemble LG L Fino D295, Step 6/1 How to disassemble LG L Fino D295, Step 6/2 How to disassemble LG L Fino D295, Step 6/3 How to disassemble LG L Fino D295, Step 6/4

Step 6.

Remove the PCB.


How to disassemble LG L Fino D295, Step 7/1 How to disassemble LG L Fino D295, Step 7/2 How to disassemble LG L Fino D295, Step 7/3

Step 7.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG L Fino D295 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models LG L Fino D295 released for markets in different countries.
