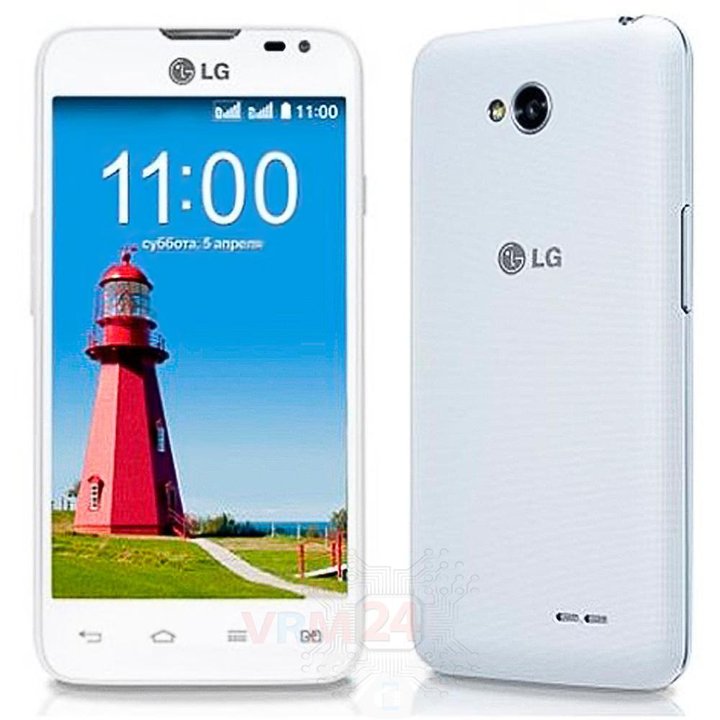

LG L65 D285
LG L65 D285
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG L65 D285 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG L65 D285, Step 1/1 How to disassemble LG L65 D285, Step 1/2

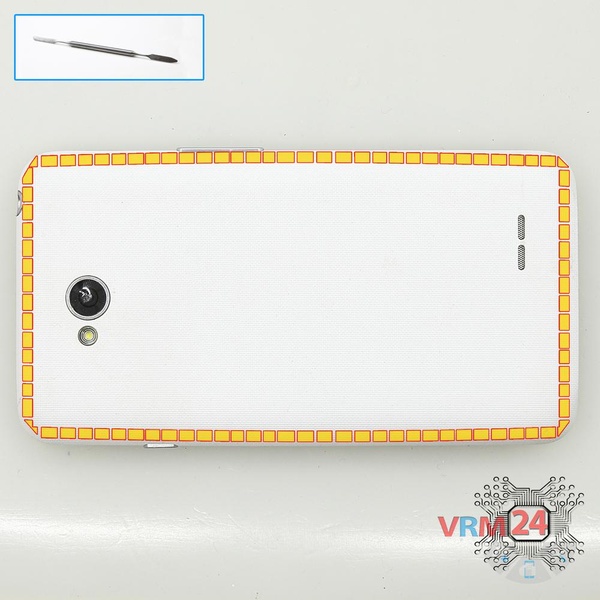

Step 1.

Open the back cover.

How to disassemble LG L65 D285, Step 2/1 How to disassemble LG L65 D285, Step 2/2

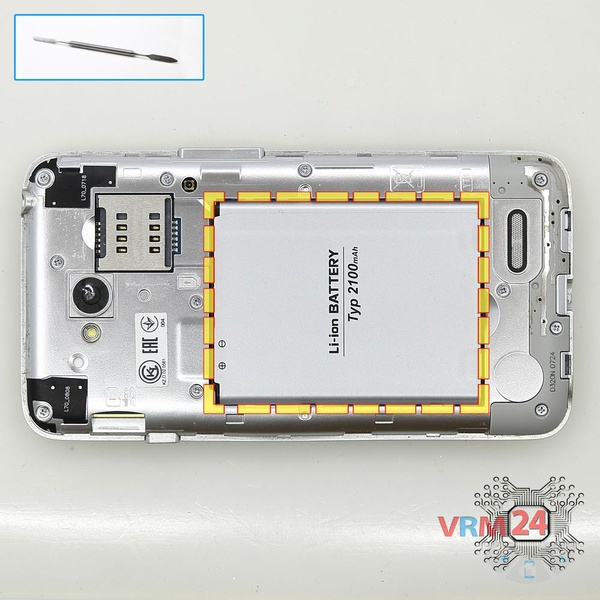

Step 2.

Lift and remove the battery.

How to disassemble LG L65 D285, Step 3/1 How to disassemble LG L65 D285, Step 3/2

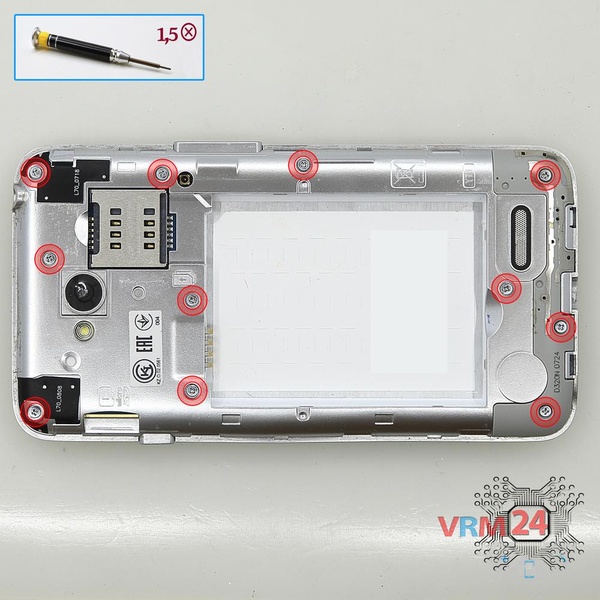

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble LG L65 D285, Step 4/1 How to disassemble LG L65 D285, Step 4/2

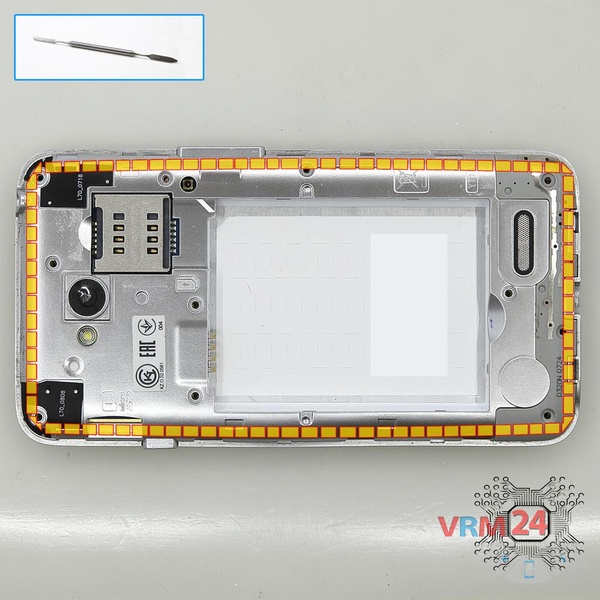

Step 4.

Pry and remove the middle frame.

How to disassemble LG L65 D285, Step 5/1 How to disassemble LG L65 D285, Step 5/2 How to disassemble LG L65 D285, Step 5/3 How to disassemble LG L65 D285, Step 5/4

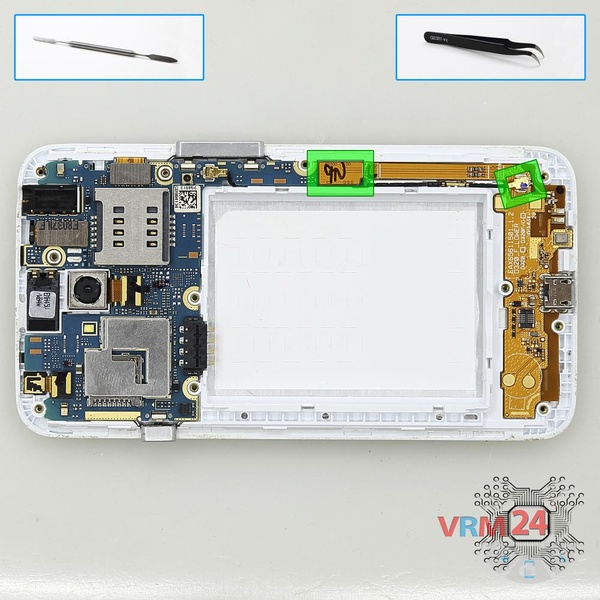

Step 5.

Disconnect the connector that connects the boards, the connector of the coaxial cable and remove the lower PCB with a charging port.

How to disassemble LG L65 D285, Step 6/1 How to disassemble LG L65 D285, Step 6/2 How to disassemble LG L65 D285, Step 6/3

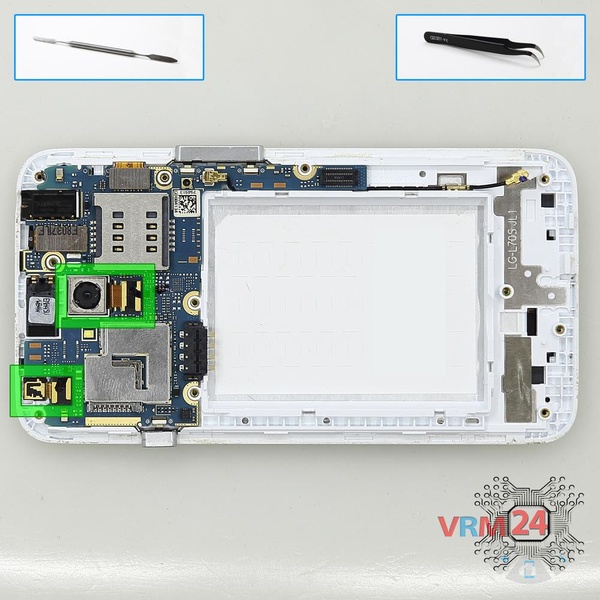

Step 6.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble LG L65 D285, Step 7/1 How to disassemble LG L65 D285, Step 7/2 How to disassemble LG L65 D285, Step 7/3

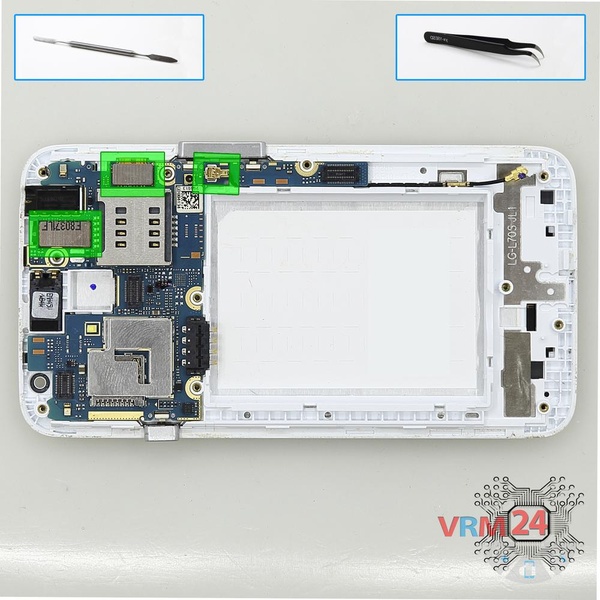

Step 7.

Disconnect connectors on the PCB and remove it.

How to disassemble LG L65 D285, Step 8/1 How to disassemble LG L65 D285, Step 8/2 How to disassemble LG L65 D285, Step 8/3 How to disassemble LG L65 D285, Step 8/4 How to disassemble LG L65 D285, Step 8/5 How to disassemble LG L65 D285, Step 8/6

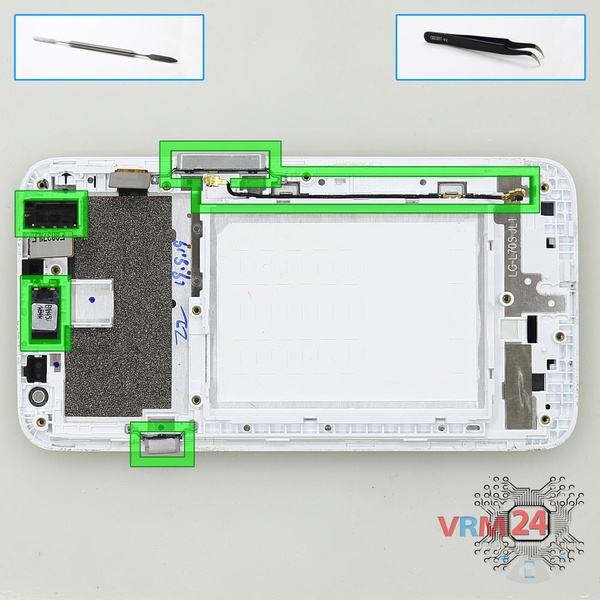

Step 8.

Pry and remove the earpiece (speaker), coaxial cable,headphone jack/socket and keys of the power and volume buttons.

How to disassemble LG L65 D285, Step 9/1 How to disassemble LG L65 D285, Step 9/2

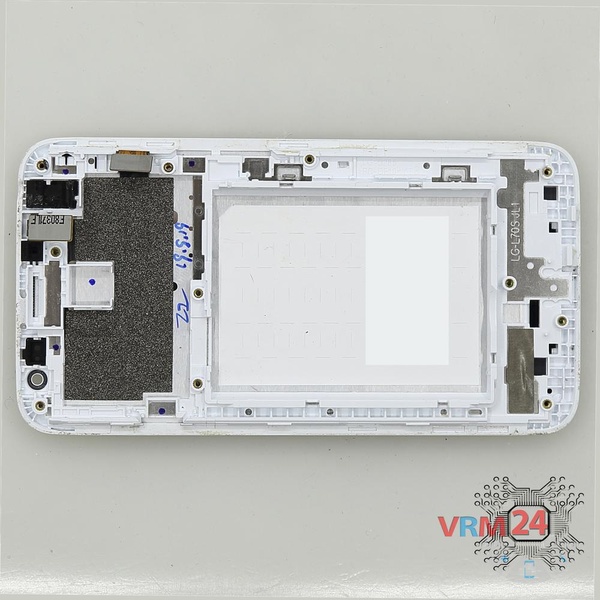

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG L65 D285 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG L65 D285
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG L65 D285 released for markets in different countries.
