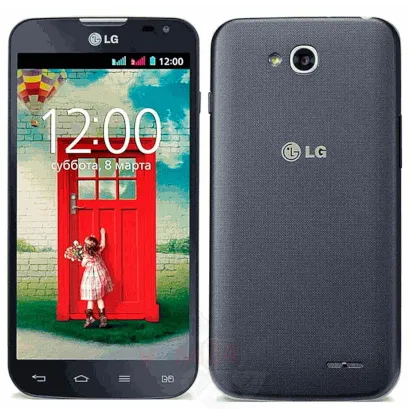

LG L90 D410
LG L90 D410
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG L90 D410 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble LG L90 D410, Step 1/1

Step 1.

Open the back cover.

How to disassemble LG L90 D410, Step 2/1 How to disassemble LG L90 D410, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble LG L90 D410, Step 3/1 How to disassemble LG L90 D410, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble LG L90 D410, Step 4/1 How to disassemble LG L90 D410, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble LG L90 D410, Step 5/1 How to disassemble LG L90 D410, Step 5/2 How to disassemble LG L90 D410, Step 5/3

Step 5.

Disconnect connectors on the lower PCB and remove it.

How to disassemble LG L90 D410, Step 6/1 How to disassemble LG L90 D410, Step 6/2 How to disassemble LG L90 D410, Step 6/3

Step 6.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble LG L90 D410, Step 7/1 How to disassemble LG L90 D410, Step 7/2 How to disassemble LG L90 D410, Step 7/3 How to disassemble LG L90 D410, Step 7/4

Step 7.

Disconnect connectors on the PCB.

How to disassemble LG L90 D410, Step 8/1 How to disassemble LG L90 D410, Step 8/2

Step 8.

Remove the PCB.

How to disassemble LG L90 D410, Step 9/1 How to disassemble LG L90 D410, Step 9/2 How to disassemble LG L90 D410, Step 9/3

Step 9.

Pry and remove the earpiece (speaker) and headphone jack/socket.

How to disassemble LG L90 D410, Step 10/1 How to disassemble LG L90 D410, Step 10/2 How to disassemble LG L90 D410, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG L90 D410 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG L90 D410
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG L90 D410 released for markets in different countries.
