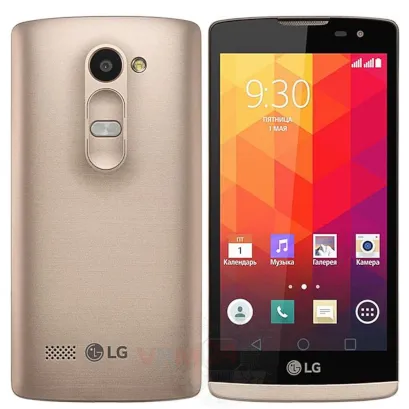

LG Leon H324
LG Leon H324
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG Leon H324 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble LG Leon H324, Step 1/1 How to disassemble LG Leon H324, Step 1/2

Step 1.

Open the back cover.

How to disassemble LG Leon H324, Step 2/1 How to disassemble LG Leon H324, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble LG Leon H324, Step 3/1 How to disassemble LG Leon H324, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble LG Leon H324, Step 4/1 How to disassemble LG Leon H324, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble LG Leon H324, Step 5/1 How to disassemble LG Leon H324, Step 5/2 How to disassemble LG Leon H324, Step 5/3

Step 5.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble LG Leon H324, Step 6/1 How to disassemble LG Leon H324, Step 6/2 How to disassemble LG Leon H324, Step 6/3

Step 6.

Disconnect connectors on the PCB and remove it.

How to disassemble LG Leon H324, Step 7/1 How to disassemble LG Leon H324, Step 7/2

Step 7.

Pry and remove the earpiece (speaker).

How to disassemble LG Leon H324, Step 8/1

Step 8.

The display module frame.

Detailed disassembly instructions of LG Leon H324 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG Leon H324
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG Leon H324 released for markets in different countries.
