Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

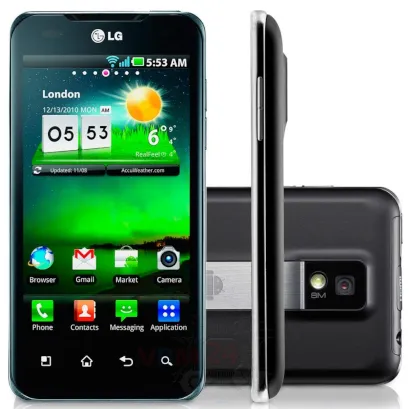

Disassembly/Repair of the mobile device LG Optimus 2X P990 (LG P990 Star, LG P990 Optimus Speed) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG Optimus 2X P990, Step 1/1 How to disassemble LG Optimus 2X P990, Step 1/2

Step 1.

Open the back cover.


How to disassemble LG Optimus 2X P990, Step 2/1 How to disassemble LG Optimus 2X P990, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble LG Optimus 2X P990, Step 3/1 How to disassemble LG Optimus 2X P990, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.


How to disassemble LG Optimus 2X P990, Step 4/1 How to disassemble LG Optimus 2X P990, Step 4/2

Step 4.

Pry and remove the upper cover.


How to disassemble LG Optimus 2X P990, Step 5/1 How to disassemble LG Optimus 2X P990, Step 5/2

Step 5.

Pry and remove the buzzer (speaker) assembly.


How to disassemble LG Optimus 2X P990, Step 6/1 How to disassemble LG Optimus 2X P990, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble LG Optimus 2X P990, Step 7/1 How to disassemble LG Optimus 2X P990, Step 7/2

Step 7.

Disconnect connectors on the PCB.


How to disassemble LG Optimus 2X P990, Step 8/1 How to disassemble LG Optimus 2X P990, Step 8/2

Step 8.

Remove the PCB.


How to disassemble LG Optimus 2X P990, Step 9/1 How to disassemble LG Optimus 2X P990, Step 9/2

Step 9.

Remove the laying.


How to disassemble LG Optimus 2X P990, Step 10/1 How to disassemble LG Optimus 2X P990, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.


How to disassemble LG Optimus 2X P990, Step 11/1 How to disassemble LG Optimus 2X P990, Step 11/2

Step 11.

Pry and remove the frame with lower board.


How to disassemble LG Optimus 2X P990, Step 12/1 How to disassemble LG Optimus 2X P990, Step 12/2 How to disassemble LG Optimus 2X P990, Step 12/3

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG Optimus 2X P990 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG Optimus 2X P990 — LG P990 Star, LG P990 Optimus Speed released for markets in different countries.
