LG Optimus F5 P875
LG Optimus F5 P875
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG Optimus F5 P875 (ЛГ Оптимус Ф5) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

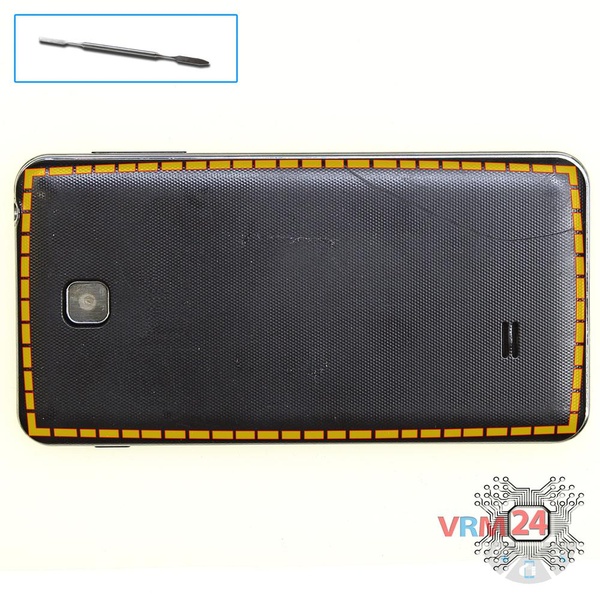

How to disassemble LG Optimus F5 P875, Step 1/1 How to disassemble LG Optimus F5 P875, Step 1/2

Step 1.

Open the back cover.

How to disassemble LG Optimus F5 P875, Step 2/1 How to disassemble LG Optimus F5 P875, Step 2/2

Step 2.

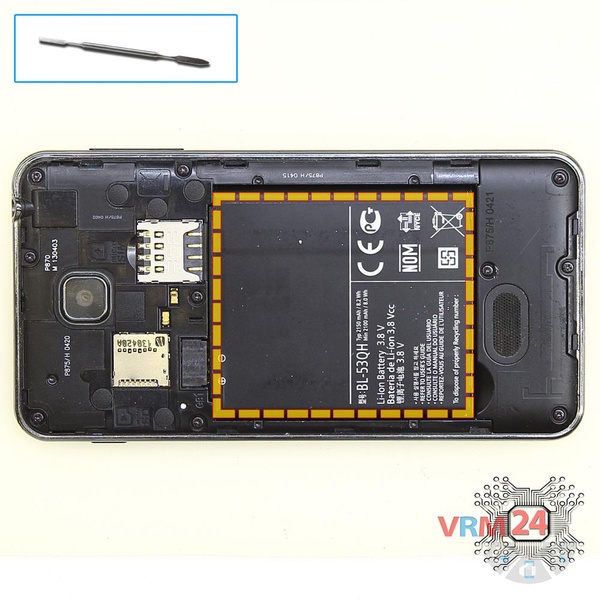

Lift and remove the battery.

How to disassemble LG Optimus F5 P875, Step 3/1 How to disassemble LG Optimus F5 P875, Step 3/2

Step 3.

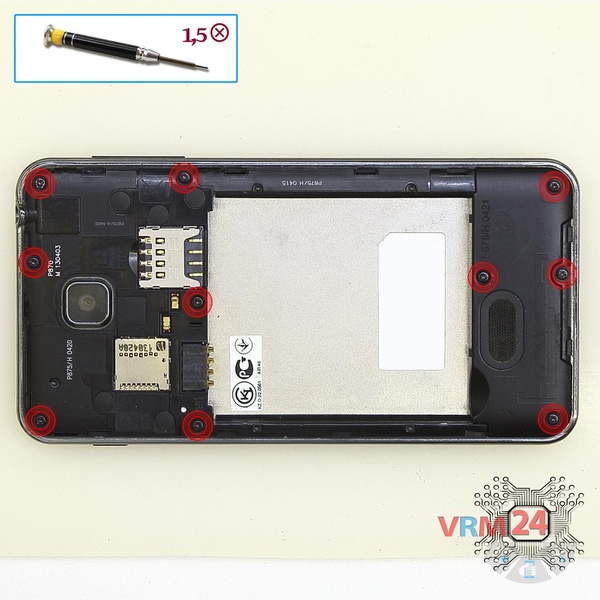

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble LG Optimus F5 P875, Step 4/1 How to disassemble LG Optimus F5 P875, Step 4/2

Step 4.

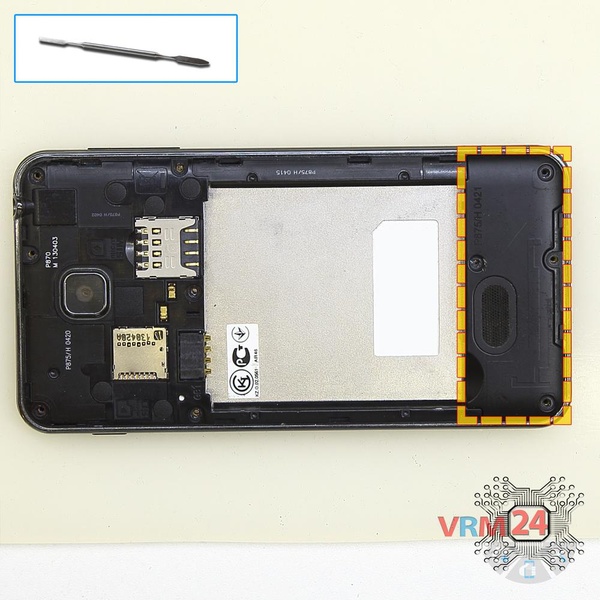

Pry and remove the buzzer (speaker) assembly.

How to disassemble LG Optimus F5 P875, Step 5/1 How to disassemble LG Optimus F5 P875, Step 5/2

Step 5.

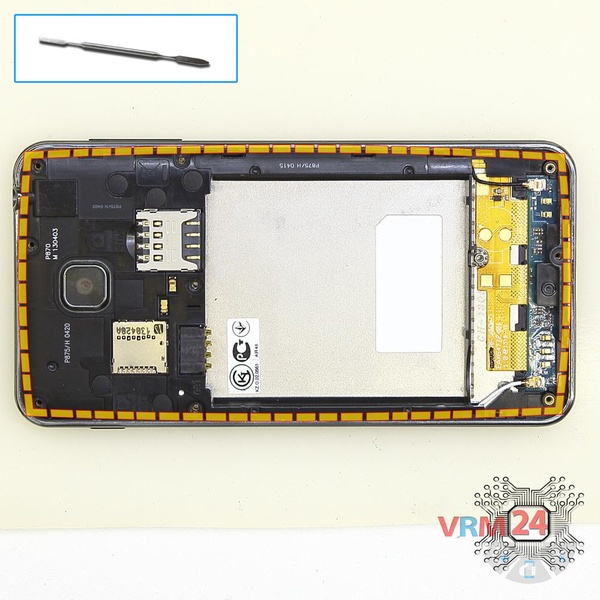

Pry and remove the middle frame.

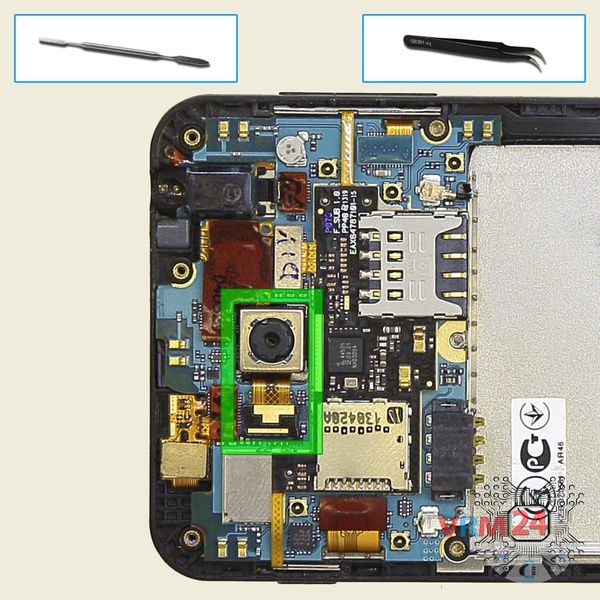

How to disassemble LG Optimus F5 P875, Step 6/1 How to disassemble LG Optimus F5 P875, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble LG Optimus F5 P875, Step 7/1 How to disassemble LG Optimus F5 P875, Step 7/2 How to disassemble LG Optimus F5 P875, Step 7/3

Step 7.

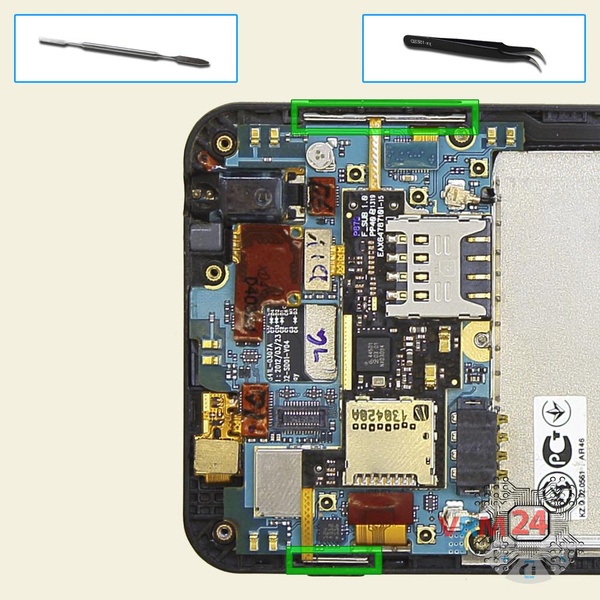

Pry & remove the power & volume buttons flex.

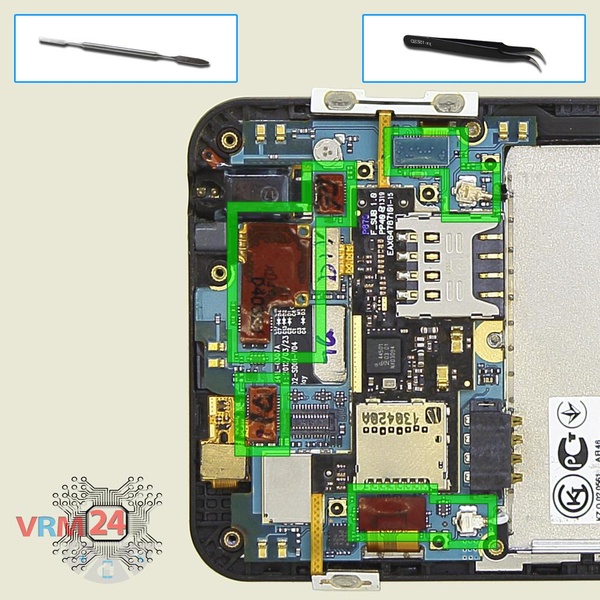

How to disassemble LG Optimus F5 P875, Step 8/1 How to disassemble LG Optimus F5 P875, Step 8/2 How to disassemble LG Optimus F5 P875, Step 8/3

Step 8.

Disconnect connectors on the PCB.

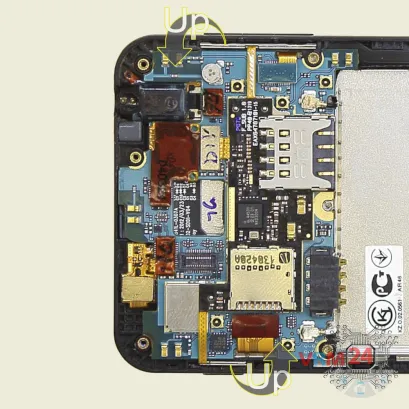

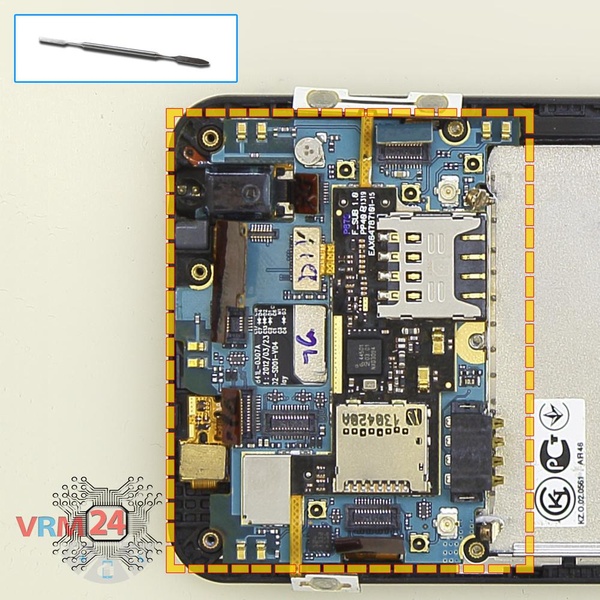

How to disassemble LG Optimus F5 P875, Step 9/1 How to disassemble LG Optimus F5 P875, Step 9/2

Step 9.

Remove the PCB.

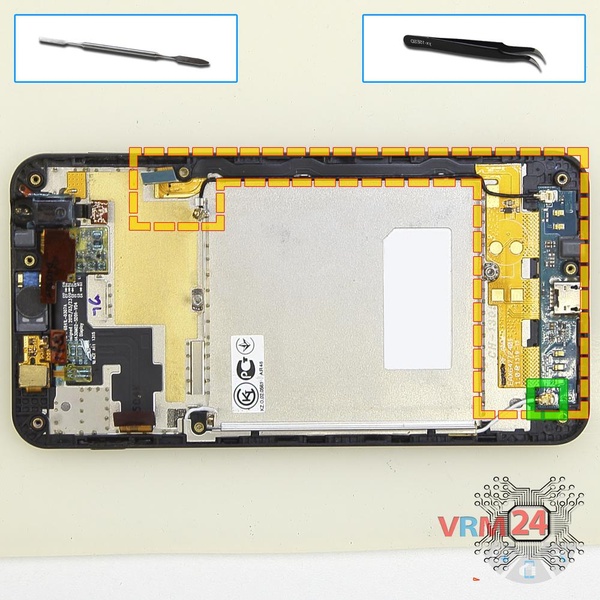

How to disassemble LG Optimus F5 P875, Step 10/1 How to disassemble LG Optimus F5 P875, Step 10/2 How to disassemble LG Optimus F5 P875, Step 10/3

Step 10.

Disconnect the coaxial cable connector on the lower board and remove the PCB with inter-board cable and coaxial cable.

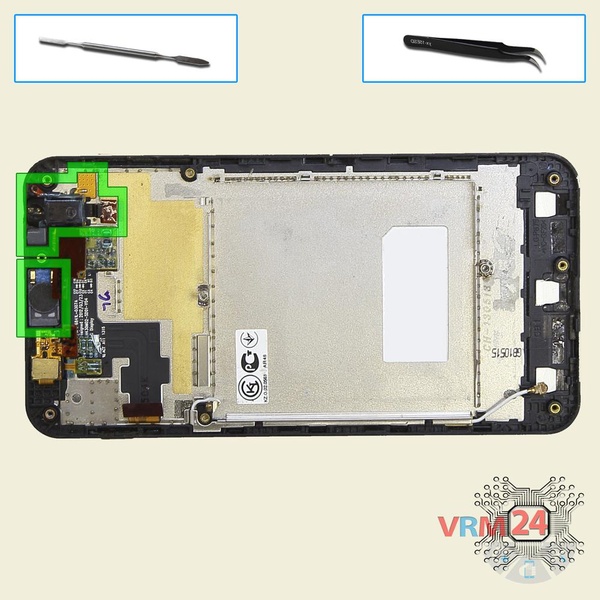

How to disassemble LG Optimus F5 P875, Step 11/1 How to disassemble LG Optimus F5 P875, Step 11/2

Step 11.

Pry and remove the earpiece (speaker) and headphone jack/socket.

Detailed disassembly instructions of LG Optimus F5 P875 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG Optimus F5 P875
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG Optimus F5 P875 — ЛГ Оптимус Ф5 released for markets in different countries.
