LG Optimus L5 E610
LG Optimus L5 E610
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

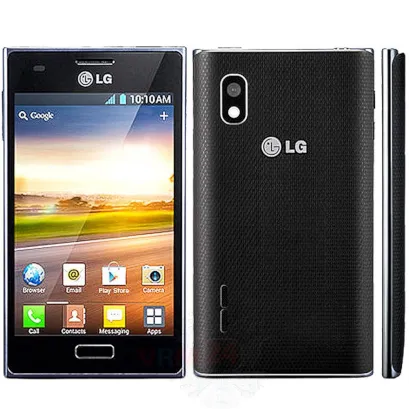

Disassembly/Repair of the mobile device LG Optimus L5 E610 (LG Optimus L5 Dual E612) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG Optimus L5 E610, Step 1/1 How to disassemble LG Optimus L5 E610, Step 1/2

Step 1.

Open the back cover.

How to disassemble LG Optimus L5 E610, Step 2/1 How to disassemble LG Optimus L5 E610, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble LG Optimus L5 E610, Step 3/1 How to disassemble LG Optimus L5 E610, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble LG Optimus L5 E610, Step 4/1 How to disassemble LG Optimus L5 E610, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble LG Optimus L5 E610, Step 5/1

Step 5.

The middle frame.

How to disassemble LG Optimus L5 E610, Step 6/1 How to disassemble LG Optimus L5 E610, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble LG Optimus L5 E610, Step 7/1 How to disassemble LG Optimus L5 E610, Step 7/2 How to disassemble LG Optimus L5 E610, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble LG Optimus L5 E610, Step 8/1 How to disassemble LG Optimus L5 E610, Step 8/2

Step 8.

Remove the PCB.

How to disassemble LG Optimus L5 E610, Step 9/1 How to disassemble LG Optimus L5 E610, Step 9/2

Step 9.

Separate the frame and display module.

How to disassemble LG Optimus L5 E610, Step 10/1 How to disassemble LG Optimus L5 E610, Step 10/2

Step 10.

Disconnect the connector of the coaxial cable and with a screwdriver (Phillips 1.5 mm PH000) unscrew 1 bolt fixing the cable in the upper part. Also turn over the part with a vibration motor.

How to disassemble LG Optimus L5 E610, Step 11/1 How to disassemble LG Optimus L5 E610, Step 11/2

Step 11.

Pry & remove the flat cable with a vibration motor, microphone, charging port and buttons.

Detailed disassembly instructions of LG Optimus L5 E610 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG Optimus L5 E610
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models LG Optimus L5 E610 — LG Optimus L5 Dual E612 released for markets in different countries.
