Teardown difficulty:
Moderate
Duration:
10 min

Recommended tools

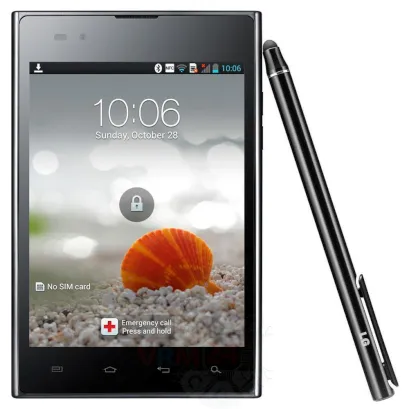

Disassembly/Repair of the mobile device LG Optimus Vu P895 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG Optimus Vu P895, Step 1/1 How to disassemble LG Optimus Vu P895, Step 1/2

Step 1.

Using a screwdriver (hex T5), unscrew the 2 bolts on the end of the phone.


How to disassemble LG Optimus Vu P895, Step 2/1 How to disassemble LG Optimus Vu P895, Step 2/2

Step 2.

Open the back cover.


How to disassemble LG Optimus Vu P895, Step 3/1 How to disassemble LG Optimus Vu P895, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket. Pry up the connector and remove the battery.


How to disassemble LG Optimus Vu P895, Step 4/1 How to disassemble LG Optimus Vu P895, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.


How to disassemble LG Optimus Vu P895, Step 5/1 How to disassemble LG Optimus Vu P895, Step 5/2

Step 5.

Pry and remove the middle frame.


How to disassemble LG Optimus Vu P895, Step 6/1 How to disassemble LG Optimus Vu P895, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble LG Optimus Vu P895, Step 7/1 How to disassemble LG Optimus Vu P895, Step 7/2 How to disassemble LG Optimus Vu P895, Step 7/3

Step 7.

Disconnect the connector and remove the volume buttons flex cable.


How to disassemble LG Optimus Vu P895, Step 8/1 How to disassemble LG Optimus Vu P895, Step 8/2 How to disassemble LG Optimus Vu P895, Step 8/3 How to disassemble LG Optimus Vu P895, Step 8/4

Step 8.

Disconnect connectors on the PCB.


How to disassemble LG Optimus Vu P895, Step 9/1 How to disassemble LG Optimus Vu P895, Step 9/2

Step 9.

Remove the PCB.


How to disassemble LG Optimus Vu P895, Step 10/1 How to disassemble LG Optimus Vu P895, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the lower part.


How to disassemble LG Optimus Vu P895, Step 11/1 How to disassemble LG Optimus Vu P895, Step 11/2

Step 11.

Pry and remove the buzzer (speaker) assembly.


How to disassemble LG Optimus Vu P895, Step 12/1

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.


How to disassemble LG Optimus Vu P895, Step 13/1 How to disassemble LG Optimus Vu P895, Step 13/2 How to disassemble LG Optimus Vu P895, Step 13/3

Step 13.

Remove the power button flex cable.


How to disassemble LG Optimus Vu P895, Step 14/1 How to disassemble LG Optimus Vu P895, Step 14/2

Step 14.

The frame with the display.


How to disassemble LG Optimus Vu P895, Step 15/1

Step 15.

The frame with the touchscreen.

Detailed disassembly instructions of LG Optimus Vu P895 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models LG Optimus Vu P895 released for markets in different countries.
