Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

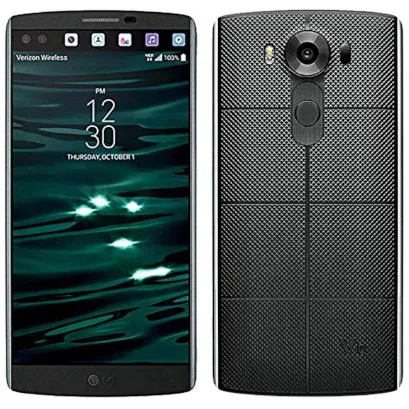

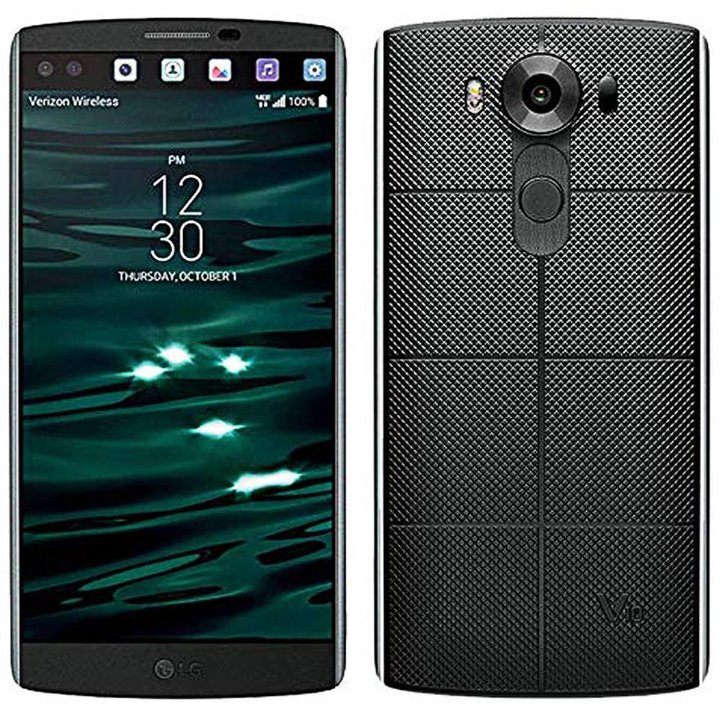

Disassembly/Repair of the mobile device LG V10 H900 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble LG V10 H900, Step 1/1 How to disassemble LG V10 H900, Step 1/2

Step 1.

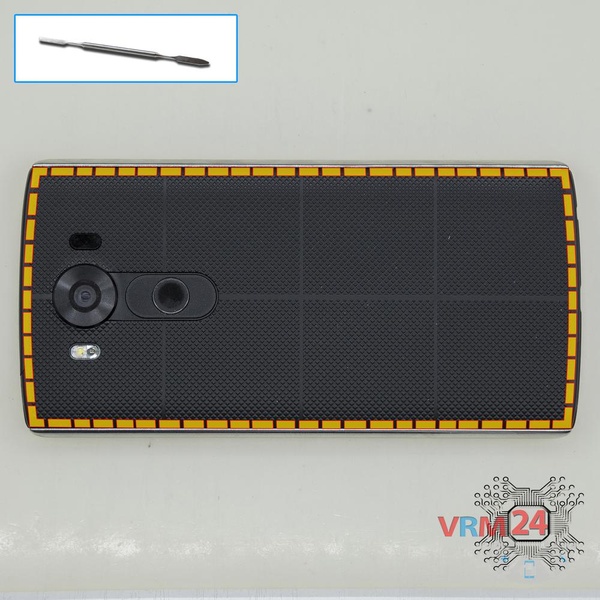

Open the back cover.


How to disassemble LG V10 H900, Step 2/1 How to disassemble LG V10 H900, Step 2/2

Step 2.

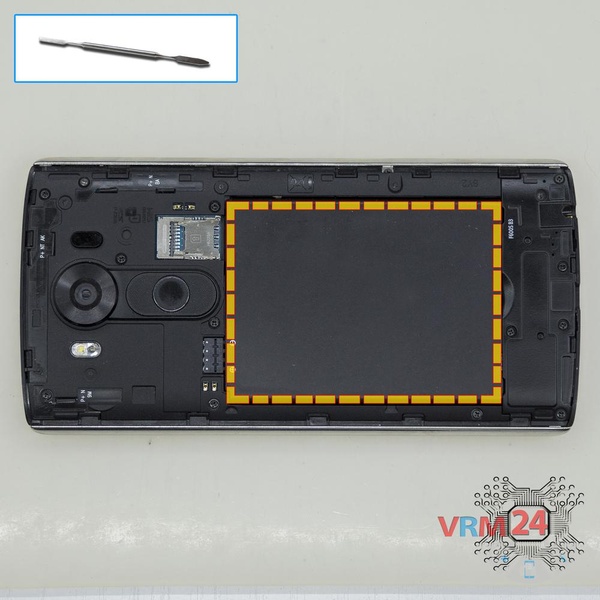

Lift and remove the battery.


How to disassemble LG V10 H900, Step 3/1 How to disassemble LG V10 H900, Step 3/2

Step 3.

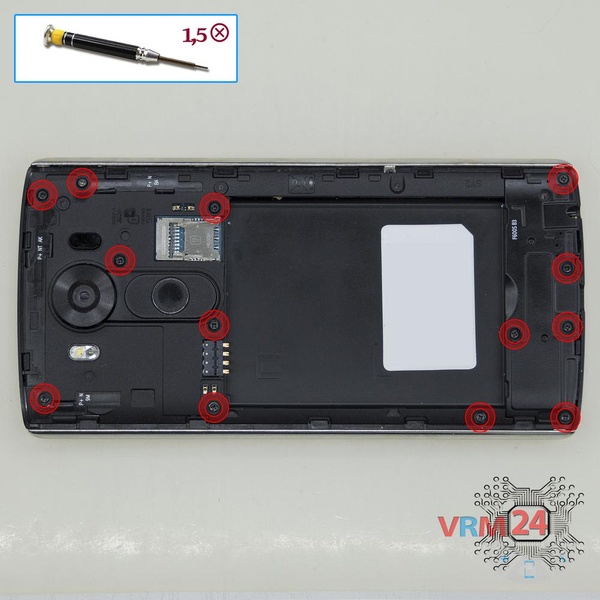

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 13 bolts in the frame of the phone.


How to disassemble LG V10 H900, Step 4/1 How to disassemble LG V10 H900, Step 4/2

Step 4.

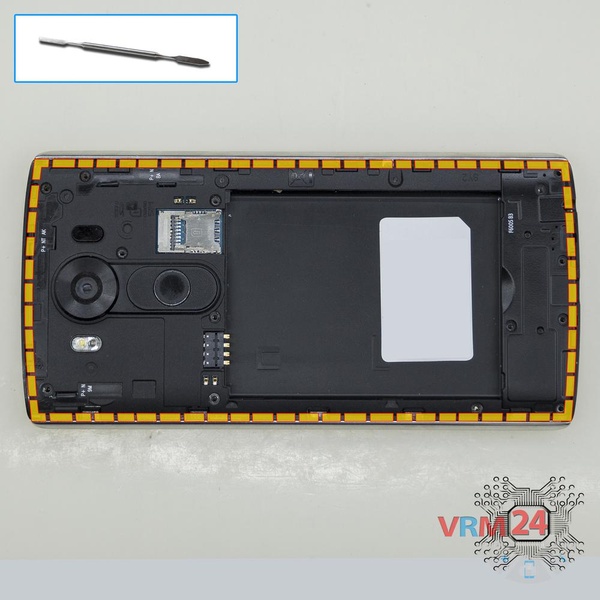

Pry and remove the middle frame.


How to disassemble LG V10 H900, Step 5/1 How to disassemble LG V10 H900, Step 5/2

Step 5.

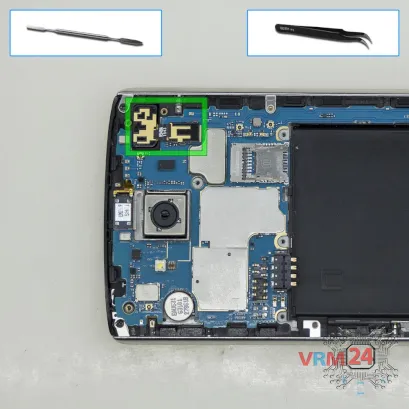

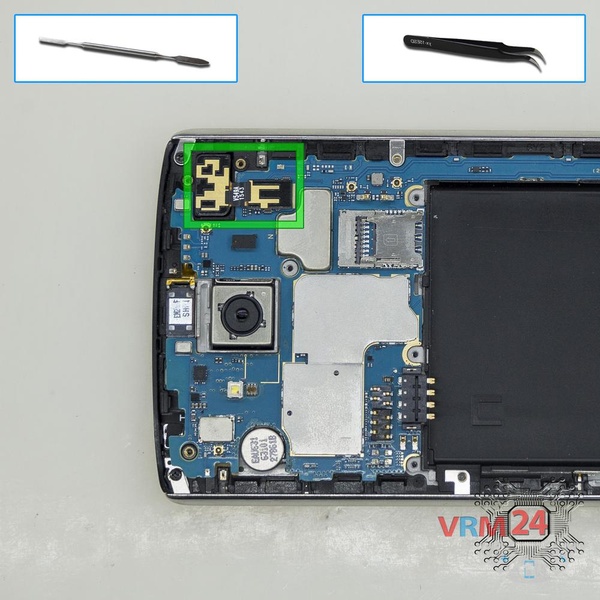

Disconnect the connector on PCB and remove the front (selfie) paired camera.


How to disassemble LG V10 H900, Step 6/1 How to disassemble LG V10 H900, Step 6/2 How to disassemble LG V10 H900, Step 6/3

Step 6.

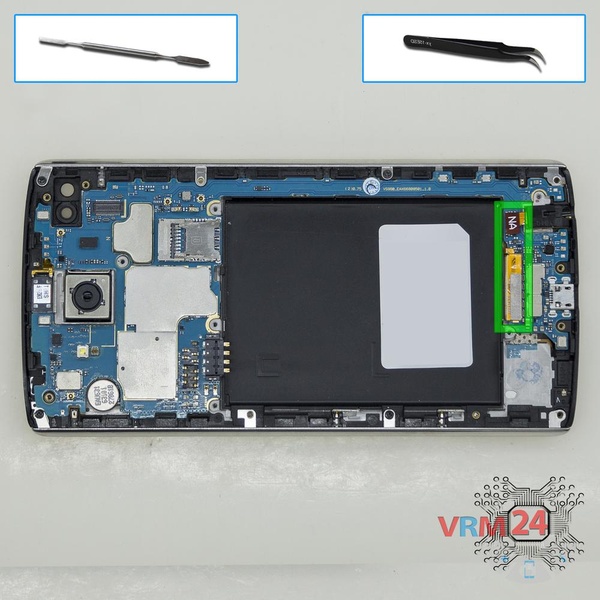

Disconnect the connector on the PCB.


How to disassemble LG V10 H900, Step 7/1 How to disassemble LG V10 H900, Step 7/2

Step 7.

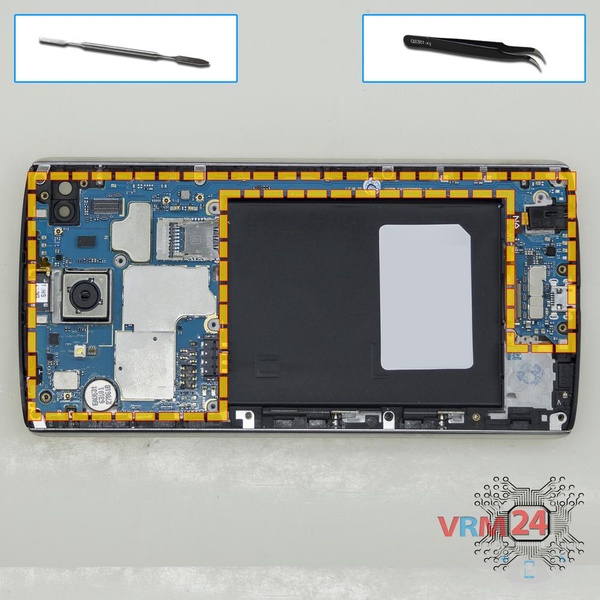

Remove the PCB.


How to disassemble LG V10 H900, Step 8/1 How to disassemble LG V10 H900, Step 8/2

Step 8.

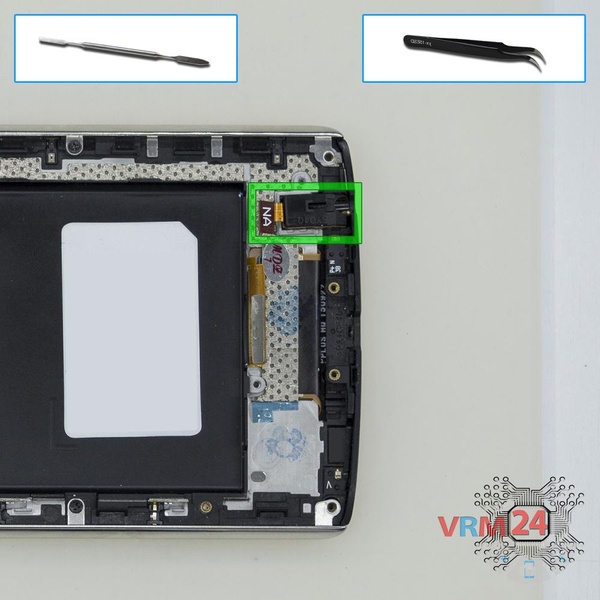

Pry & remove the jack socket.


How to disassemble LG V10 H900, Step 9/1 How to disassemble LG V10 H900, Step 9/2 How to disassemble LG V10 H900, Step 9/3

Step 9.

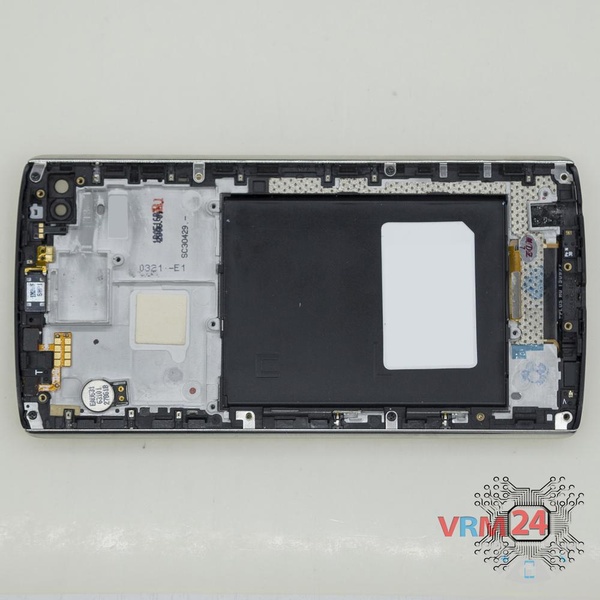

Parts in the frame of the display module.

Detailed disassembly instructions of LG V10 H900 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG V10 H900 released for markets in different countries.
