LG X cam K580
LG X cam K580
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG X cam K580 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG X cam K580, Step 1/1 How to disassemble LG X cam K580, Step 1/2

Step 1.

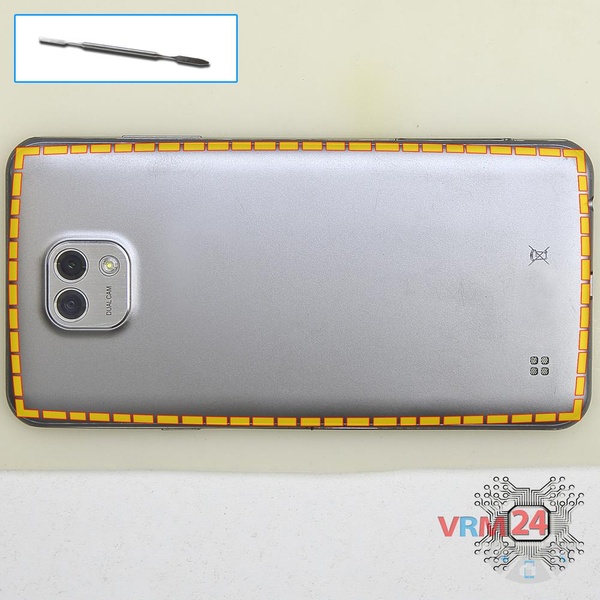

Open the back cover.

How to disassemble LG X cam K580, Step 2/1 How to disassemble LG X cam K580, Step 2/2

Step 2.

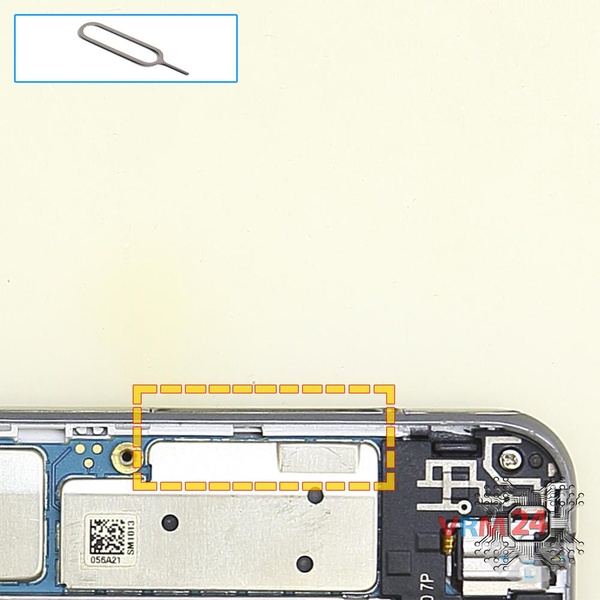

Using the key tool, open the SIM and MMC cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble LG X cam K580, Step 3/1 How to disassemble LG X cam K580, Step 3/2

Step 3.

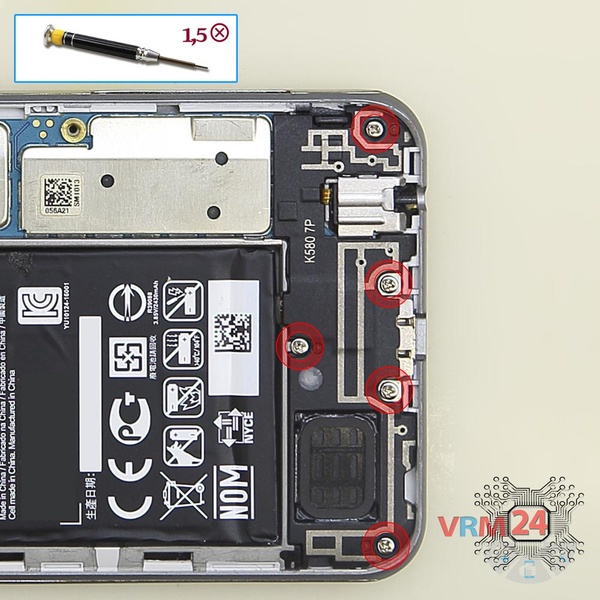

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the lower part.

How to disassemble LG X cam K580, Step 4/1 How to disassemble LG X cam K580, Step 4/2

Step 4.

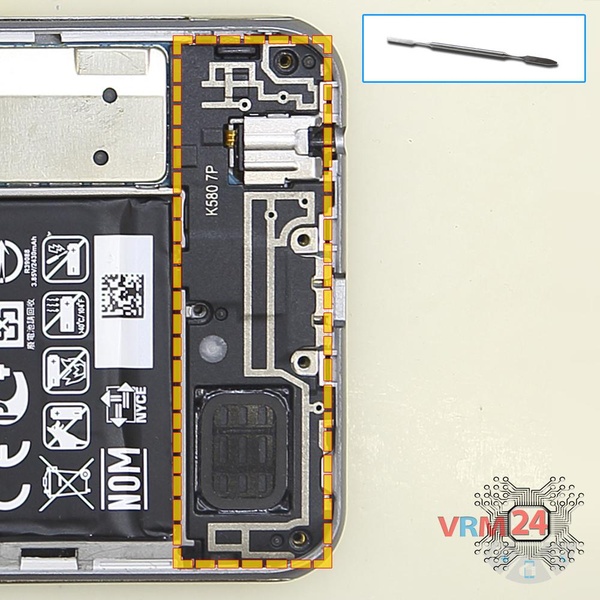

Pry and remove the buzzer (speaker) assembly.

How to disassemble LG X cam K580, Step 5/1 How to disassemble LG X cam K580, Step 5/2

Step 5.

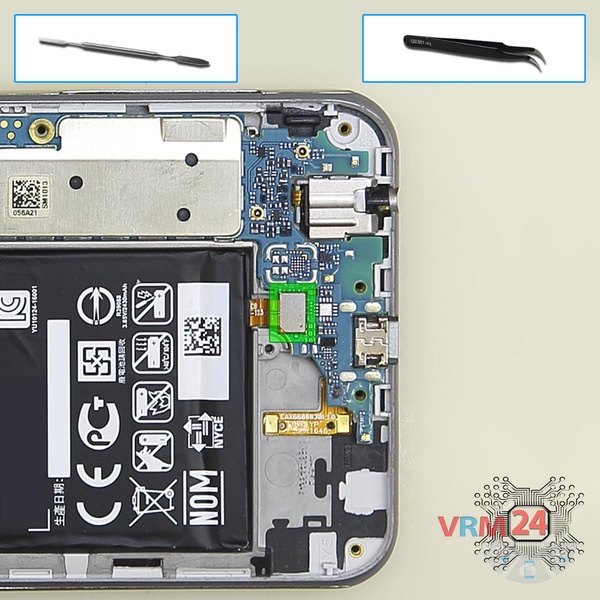

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble LG X cam K580, Step 6/1 How to disassemble LG X cam K580, Step 6/2

Step 6.

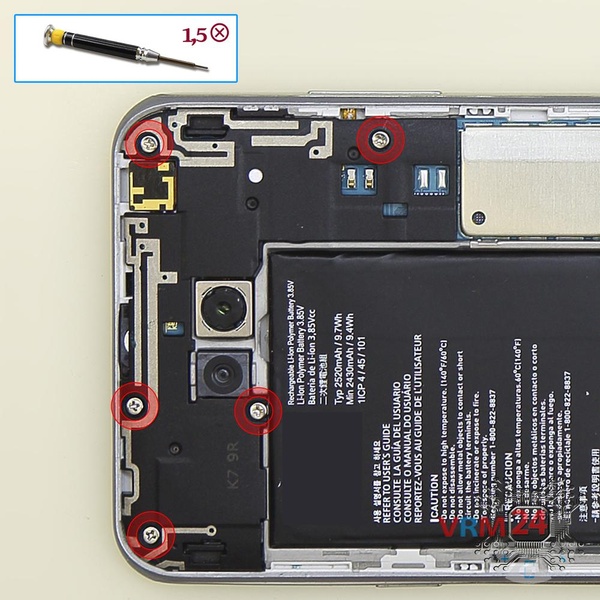

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the upper part.

How to disassemble LG X cam K580, Step 7/1 How to disassemble LG X cam K580, Step 7/2

Step 7.

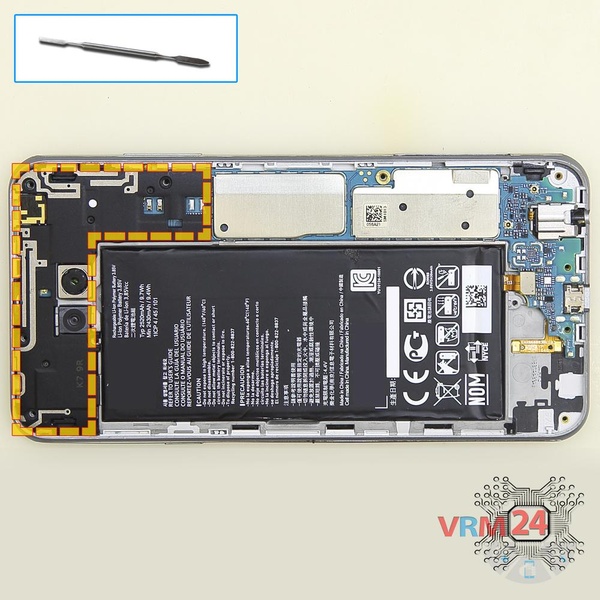

Pry and remove the upper cover.

How to disassemble LG X cam K580, Step 8/1 How to disassemble LG X cam K580, Step 8/2

Step 8.

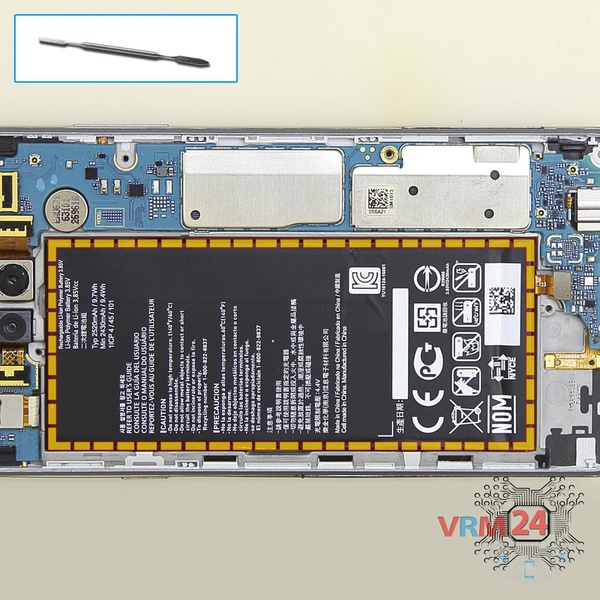

Pry and remove the battery.

How to disassemble LG X cam K580, Step 9/1 How to disassemble LG X cam K580, Step 9/2

Step 9.

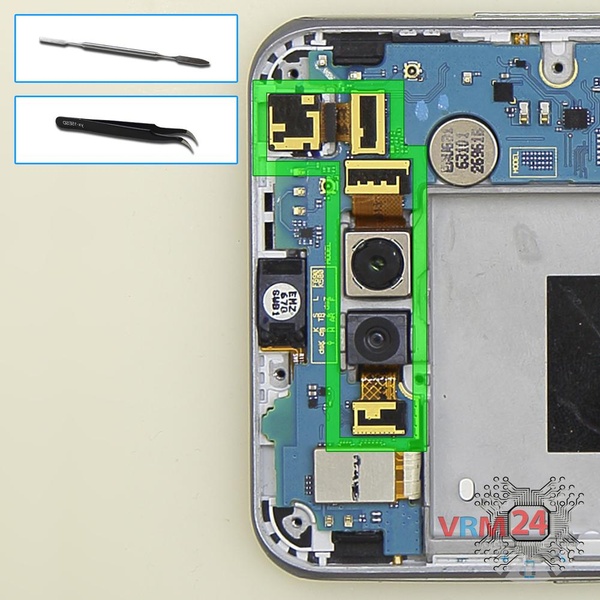

Disconnect connector on the PCB and remove the 3 cameras.

How to disassemble LG X cam K580, Step 10/1 How to disassemble LG X cam K580, Step 10/2 How to disassemble LG X cam K580, Step 10/3

Step 10.

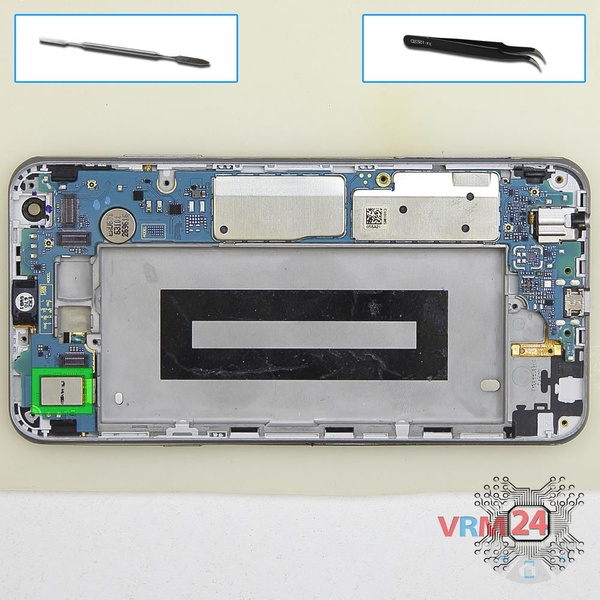

Disconnect the connector on the PCB.

How to disassemble LG X cam K580, Step 11/1 How to disassemble LG X cam K580, Step 11/2

Step 11.

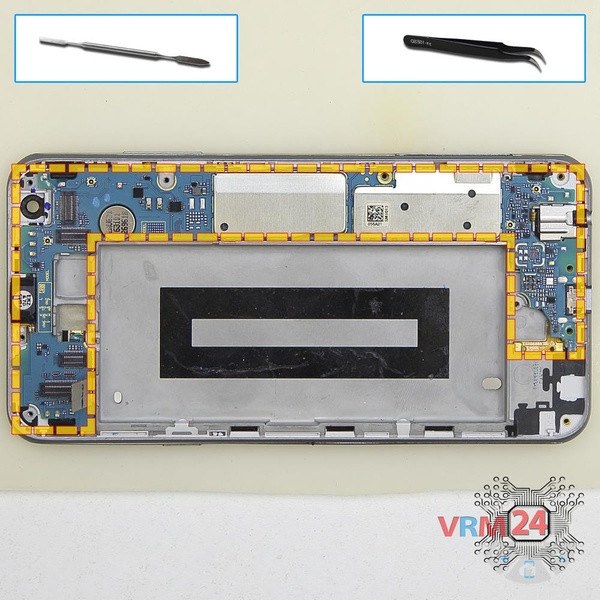

Remove the PCB.

How to disassemble LG X cam K580, Step 12/1 How to disassemble LG X cam K580, Step 12/2

Step 12.

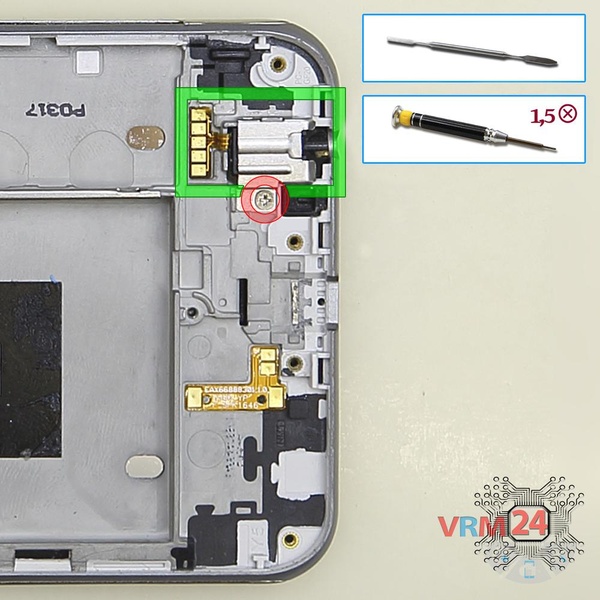

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the headphone jack/socket.

How to disassemble LG X cam K580, Step 13/1 How to disassemble LG X cam K580, Step 13/2

Step 13.

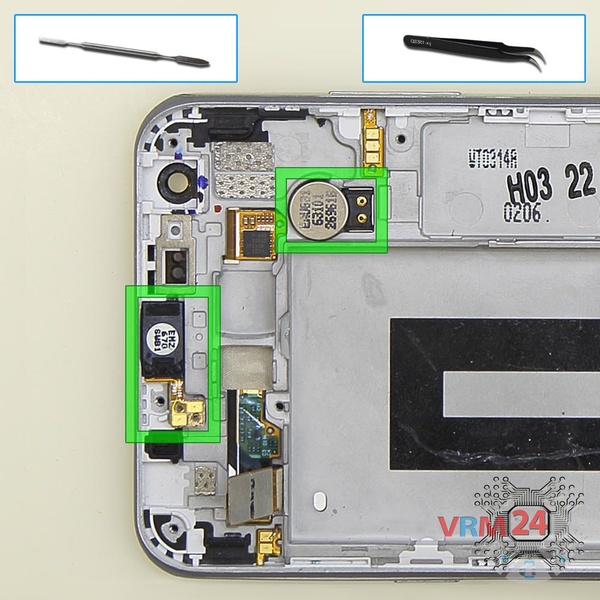

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble LG X cam K580, Step 14/1 How to disassemble LG X cam K580, Step 14/2 How to disassemble LG X cam K580, Step 14/3

Step 14.

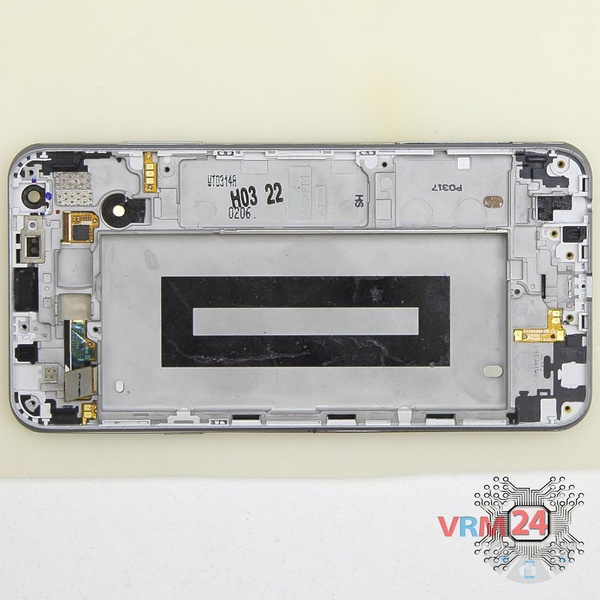

Parts are in the frame of the display module.

Detailed disassembly instructions of LG X cam K580 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG X cam K580
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG X cam K580 released for markets in different countries.
