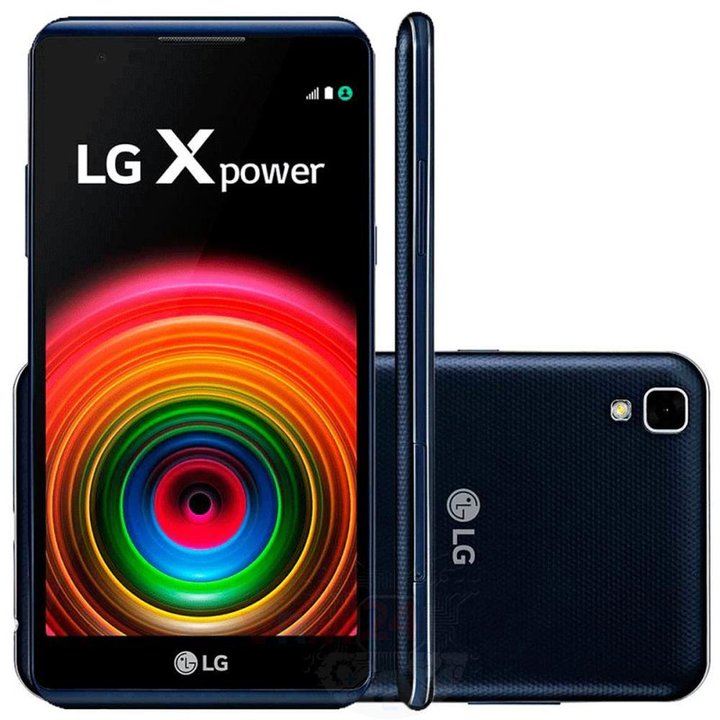

LG X Power K220
LG X Power K220
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG X Power K220 (LG K220DS (Russia, UAE); K220 (Europe); LS755 (Boost Mobile); US610 (U.S. Cellular); K450 (Cricket)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG X Power K220, Step 1/1 How to disassemble LG X Power K220, Step 1/2

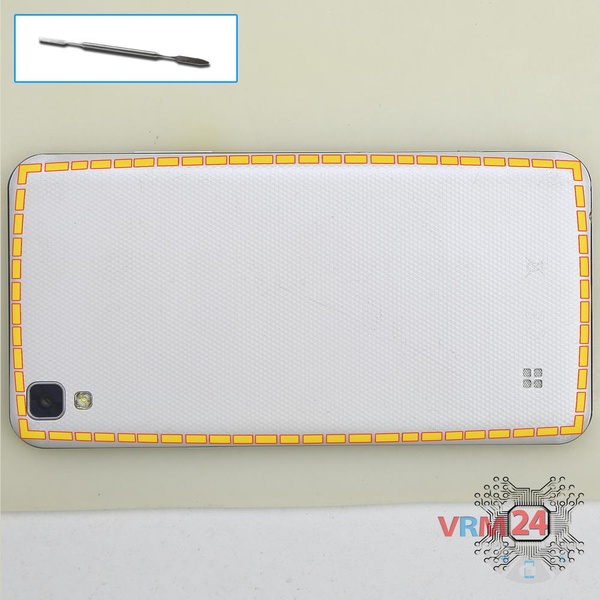

Step 1.

Open the back cover.

How to disassemble LG X Power K220, Step 2/1 How to disassemble LG X Power K220, Step 2/2

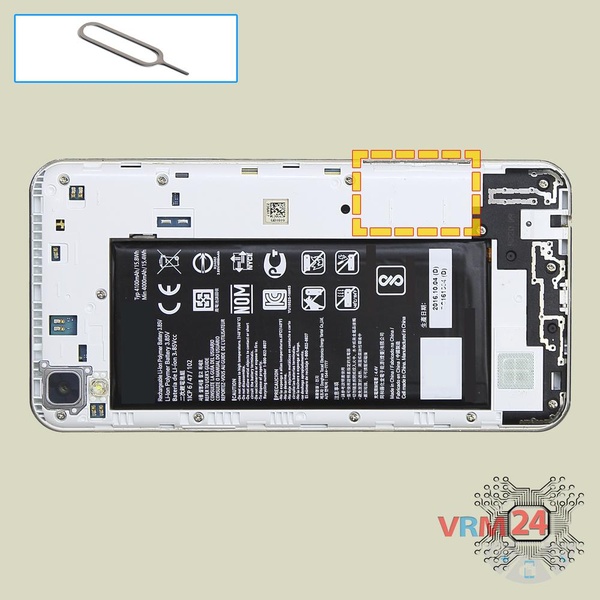

Step 2.

Using the key tool, open the SIM and MMC cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble LG X Power K220, Step 3/1 How to disassemble LG X Power K220, Step 3/2

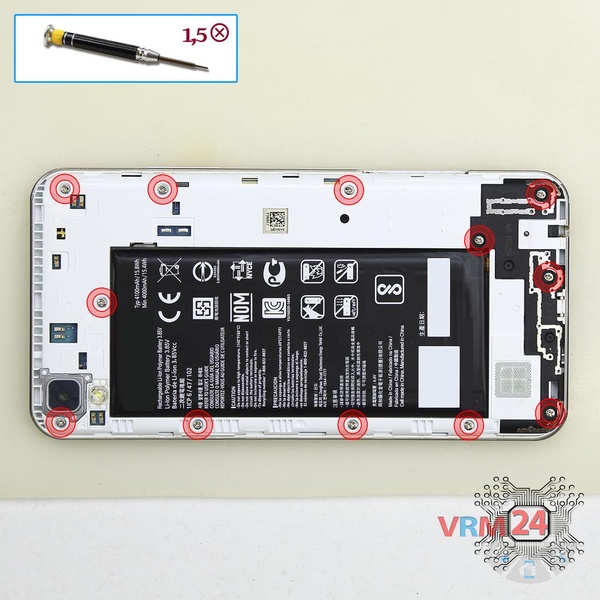

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble LG X Power K220, Step 4/1 How to disassemble LG X Power K220, Step 4/2 How to disassemble LG X Power K220, Step 4/3

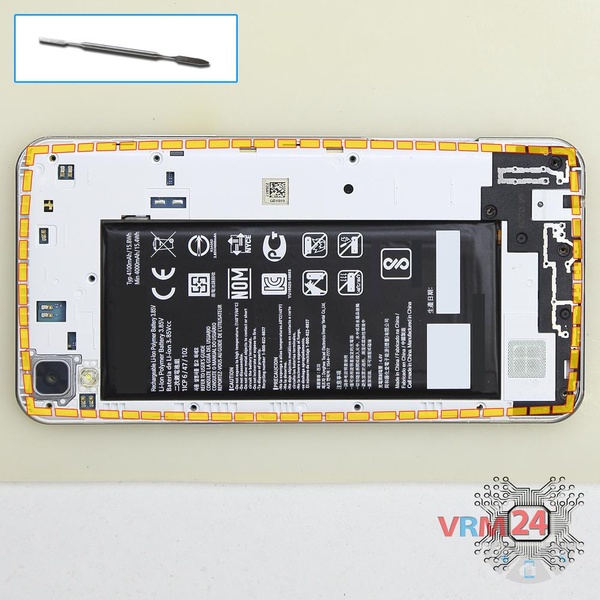

Step 4.

Pry and remove the middle frame.

How to disassemble LG X Power K220, Step 5/1 How to disassemble LG X Power K220, Step 5/2

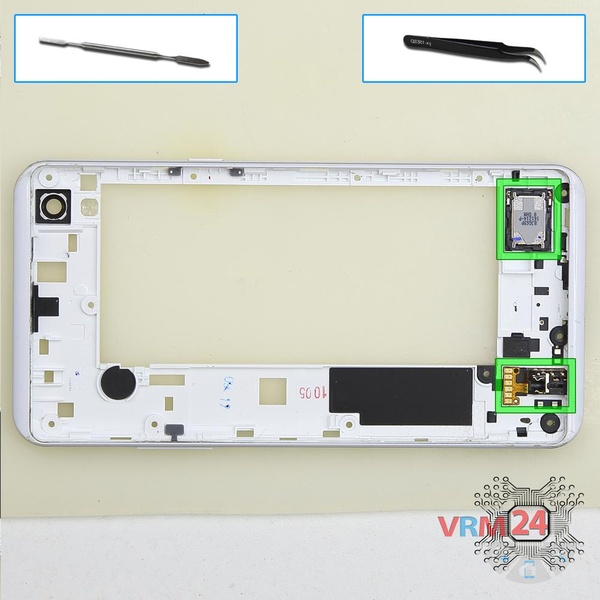

Step 5.

Pry and remove the headphone jack/socket and buzzer (speaker)

How to disassemble LG X Power K220, Step 6/1 How to disassemble LG X Power K220, Step 6/2 How to disassemble LG X Power K220, Step 6/3

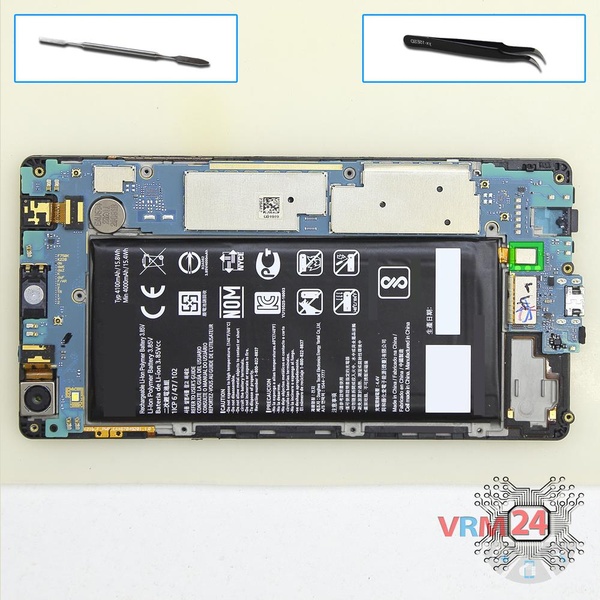

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble LG X Power K220, Step 7/1 How to disassemble LG X Power K220, Step 7/2

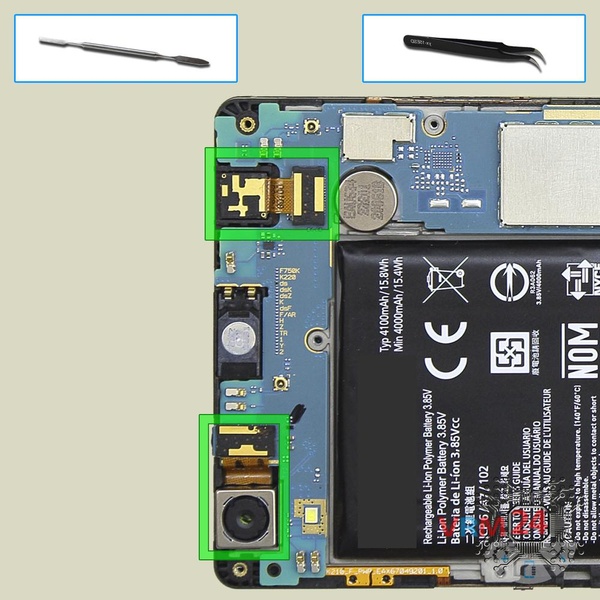

Step 7.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble LG X Power K220, Step 8/1 How to disassemble LG X Power K220, Step 8/2 How to disassemble LG X Power K220, Step 8/3

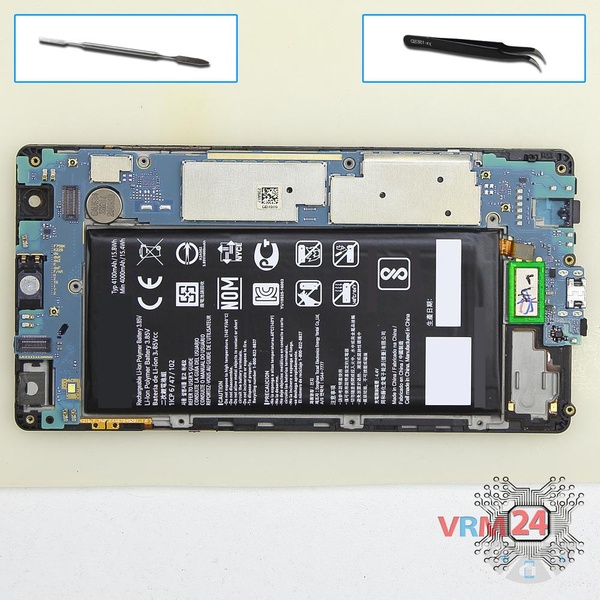

Step 8.

Disconnect connectors on the PCB.

How to disassemble LG X Power K220, Step 9/1 How to disassemble LG X Power K220, Step 9/2

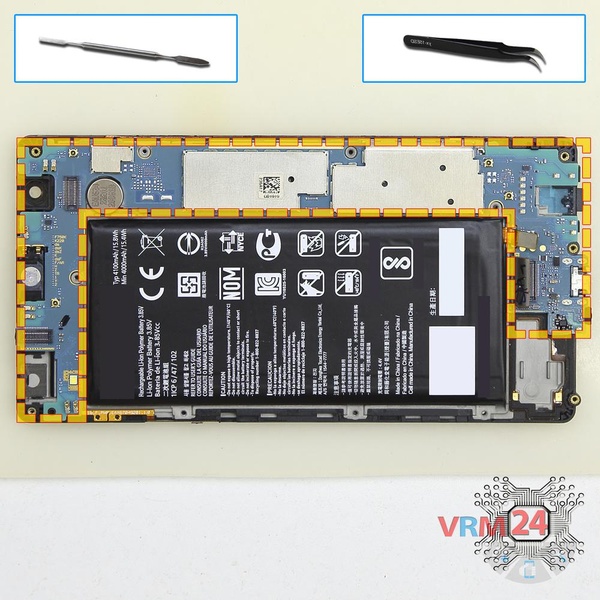

Step 9.

Remove the PCB.

How to disassemble LG X Power K220, Step 10/1 How to disassemble LG X Power K220, Step 10/2

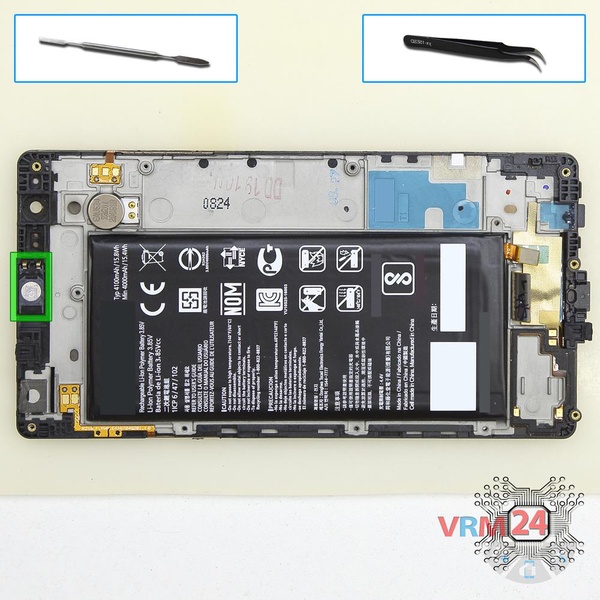

Step 10.

Pry and remove the earpiece (speaker).

How to disassemble LG X Power K220, Step 11/1 How to disassemble LG X Power K220, Step 11/2

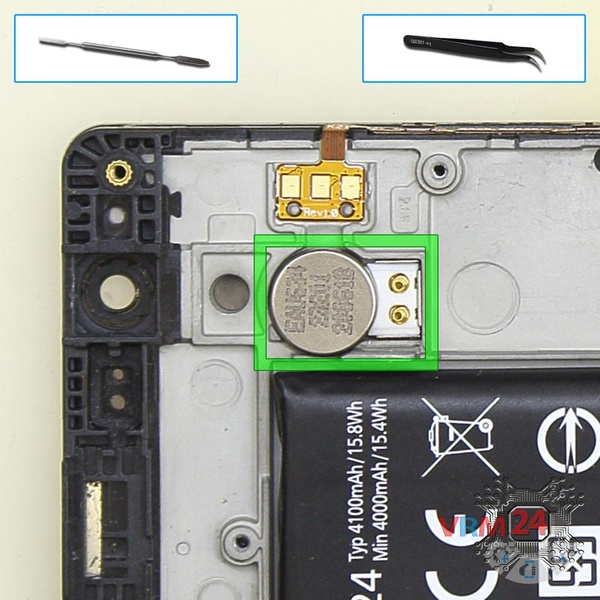

Step 11.

Pry and remove the vibration motor.

How to disassemble LG X Power K220, Step 12/1 How to disassemble LG X Power K220, Step 12/2 How to disassemble LG X Power K220, Step 12/3

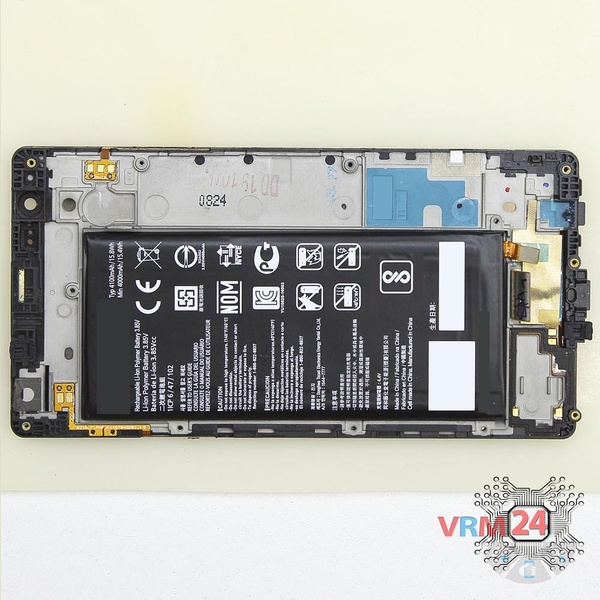

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG X Power K220 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG X Power K220
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models LG X Power K220 — LG K220DS (Russia, UAE); K220 (Europe); LS755 (Boost Mobile); US610 (U.S. Cellular); K450 (Cricket) released for markets in different countries.
