Meizu 15 Lite M871H
Meizu 15 Lite M871H
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu 15 Lite M871H with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Meizu 15 Lite M871H, Step 1/1

Step 1.

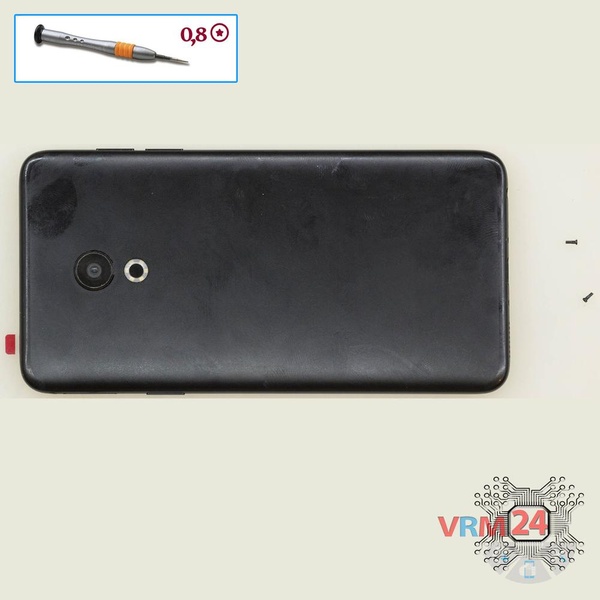

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts on the end of the phone.

How to disassemble Meizu 15 Lite M871H, Step 2/1

Step 2.

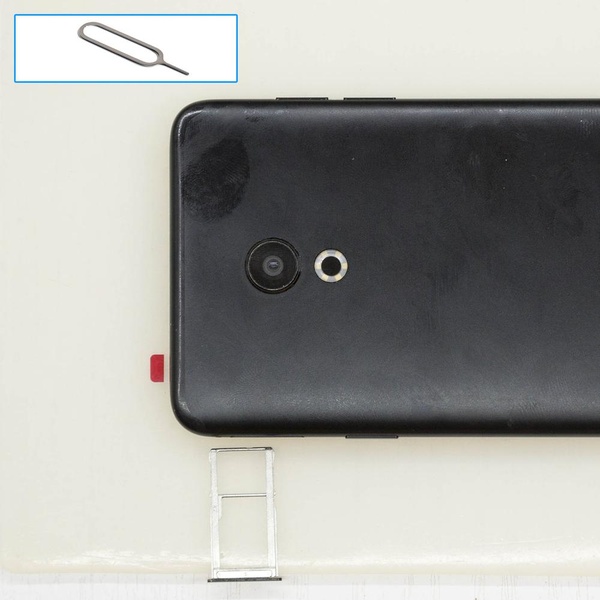

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu 15 Lite M871H, Step 3/1 How to disassemble Meizu 15 Lite M871H, Step 3/2

Step 3.

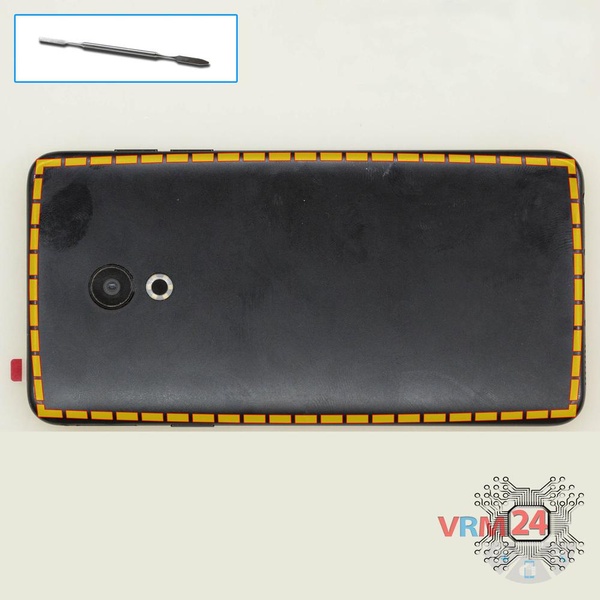

Open the back cover.

How to disassemble Meizu 15 Lite M871H, Step 4/1 How to disassemble Meizu 15 Lite M871H, Step 4/2

Step 4.

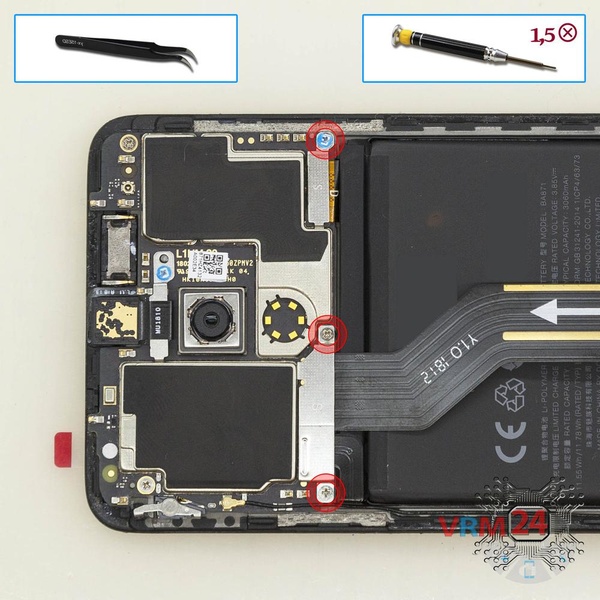

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the brackets holding the connectors.

How to disassemble Meizu 15 Lite M871H, Step 5/1 How to disassemble Meizu 15 Lite M871H, Step 5/2 How to disassemble Meizu 15 Lite M871H, Step 5/3

Step 5.

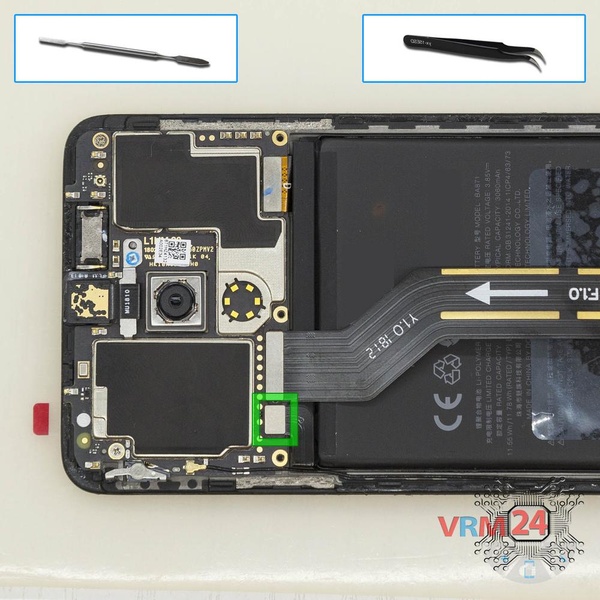

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu 15 Lite M871H, Step 6/1 How to disassemble Meizu 15 Lite M871H, Step 6/2

Step 6.

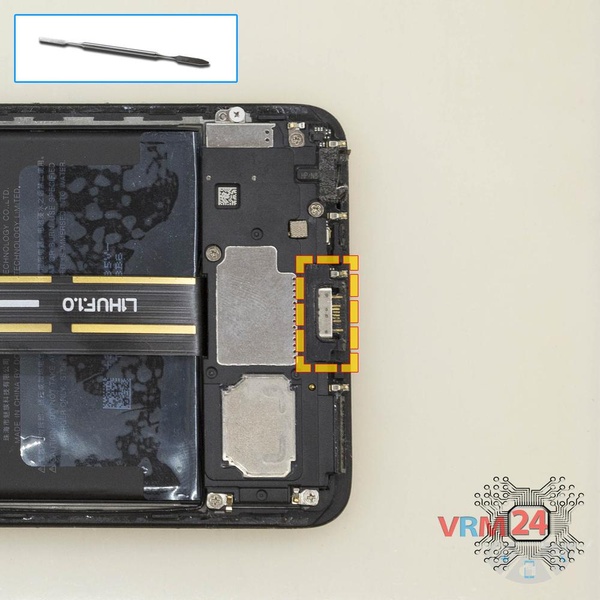

Remove the cover hiding the screws.

How to disassemble Meizu 15 Lite M871H, Step 7/1 How to disassemble Meizu 15 Lite M871H, Step 7/2

Step 7.

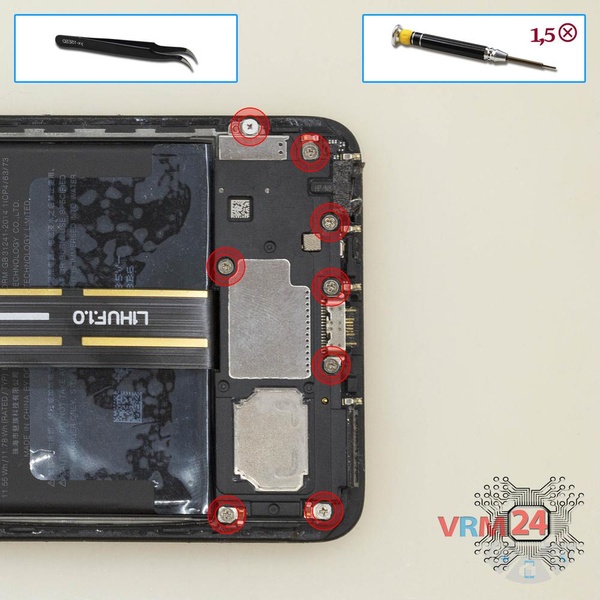

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts and remove three grounding lug washers.

How to disassemble Meizu 15 Lite M871H, Step 8/1 How to disassemble Meizu 15 Lite M871H, Step 8/2

Step 8.

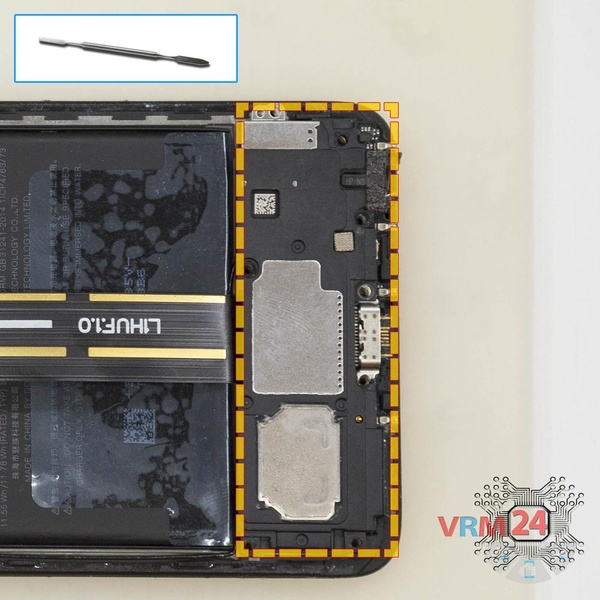

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu 15 Lite M871H, Step 9/1 How to disassemble Meizu 15 Lite M871H, Step 9/2 How to disassemble Meizu 15 Lite M871H, Step 9/3

Step 9.

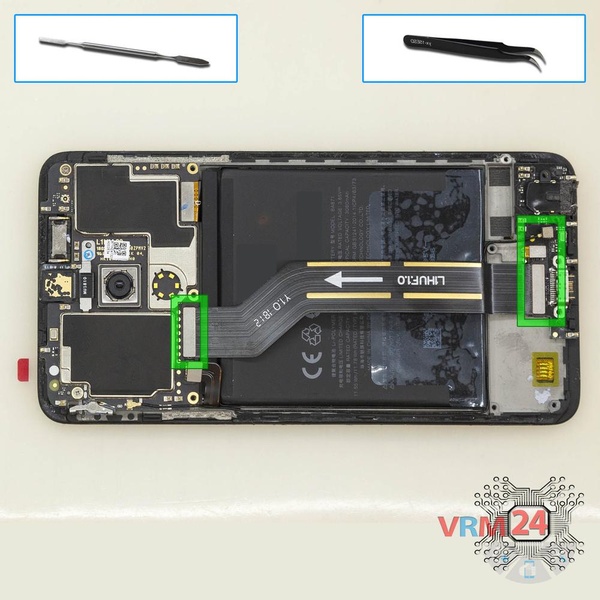

Pry up the connectors.

How to disassemble Meizu 15 Lite M871H, Step 10/1 How to disassemble Meizu 15 Lite M871H, Step 10/2

Step 10.

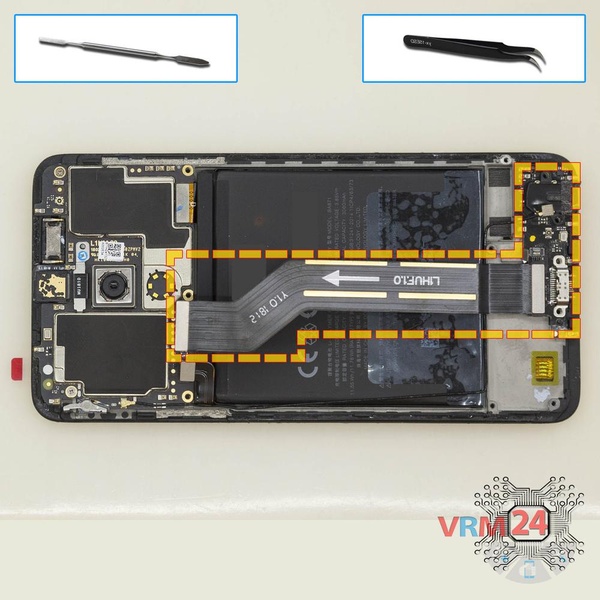

Remove the daughterboard with an inter-board cable.

How to disassemble Meizu 15 Lite M871H, Step 11/1 How to disassemble Meizu 15 Lite M871H, Step 11/2

Step 11.

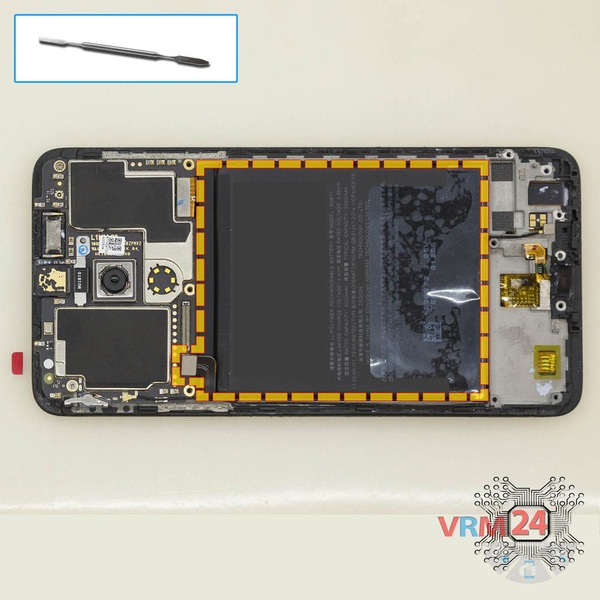

Remove the battery.

How to disassemble Meizu 15 Lite M871H, Step 12/1 How to disassemble Meizu 15 Lite M871H, Step 12/2 How to disassemble Meizu 15 Lite M871H, Step 12/3

Step 12.

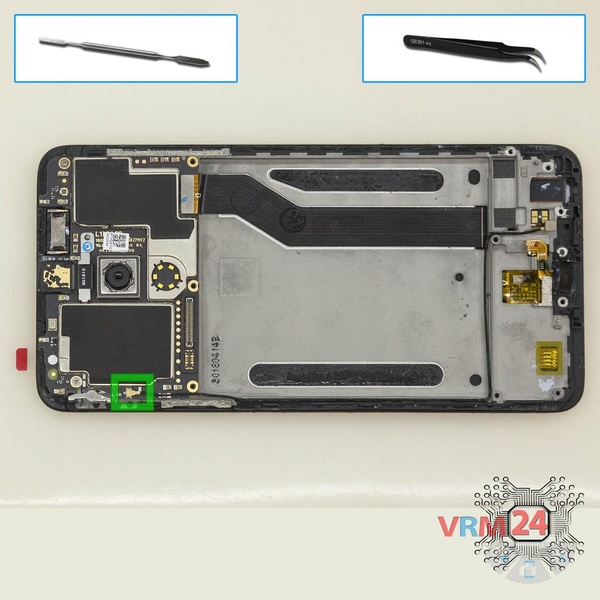

Pry up the connector and remove the coaxial cable.

How to disassemble Meizu 15 Lite M871H, Step 13/1 How to disassemble Meizu 15 Lite M871H, Step 13/2 How to disassemble Meizu 15 Lite M871H, Step 13/3

Step 13.

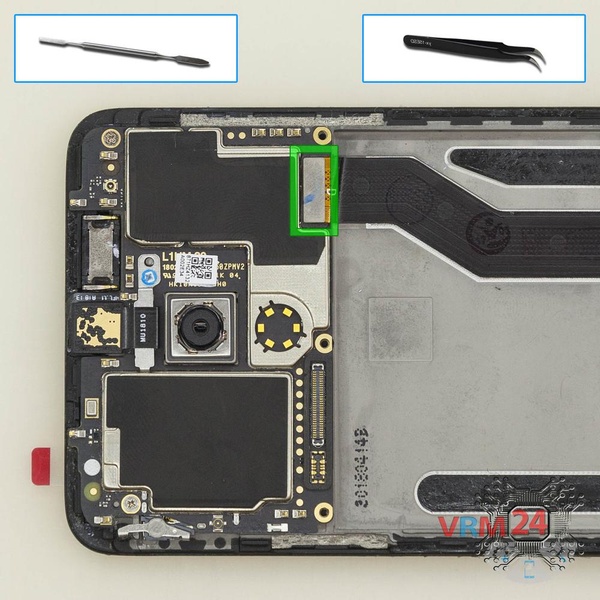

Pry up the inter-board cable connector.

How to disassemble Meizu 15 Lite M871H, Step 14/1 How to disassemble Meizu 15 Lite M871H, Step 14/2 How to disassemble Meizu 15 Lite M871H, Step 14/3

Step 14.

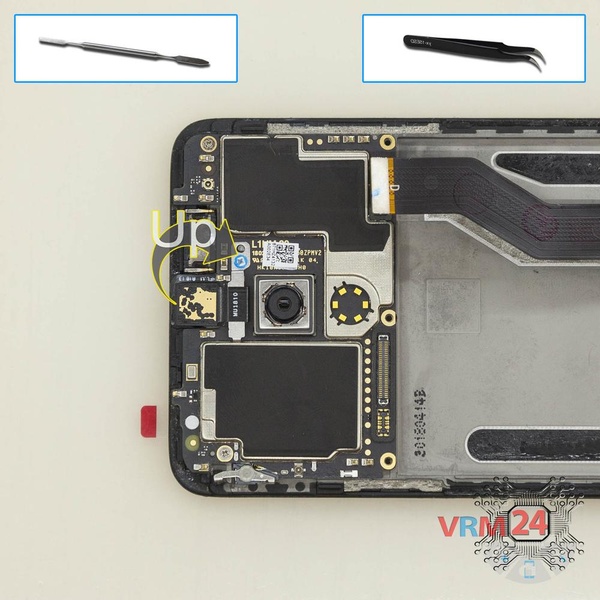

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holding the camera connector.

How to disassemble Meizu 15 Lite M871H, Step 15/1 How to disassemble Meizu 15 Lite M871H, Step 15/2

Step 15.

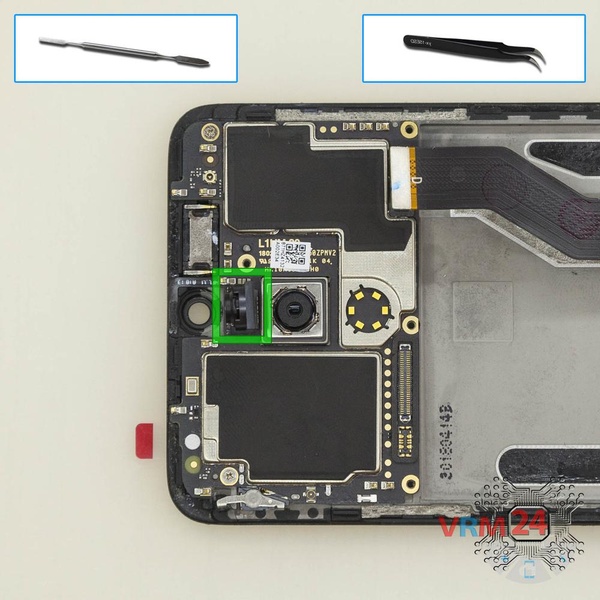

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Meizu 15 Lite M871H, Step 16/1 How to disassemble Meizu 15 Lite M871H, Step 16/2

Step 16.

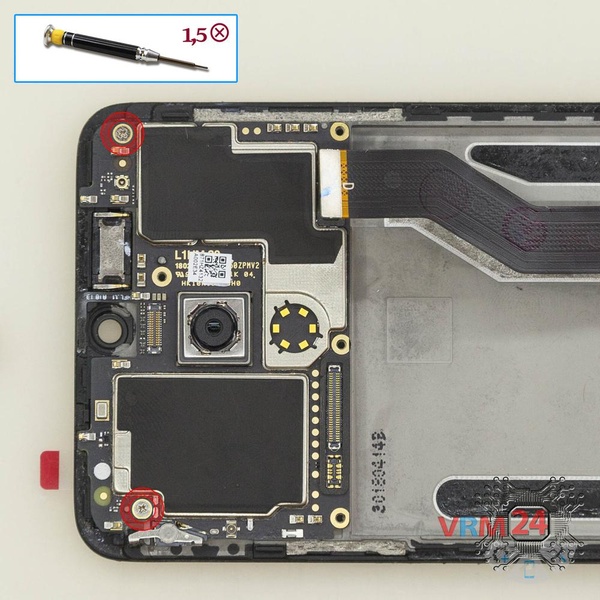

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Meizu 15 Lite M871H, Step 17/1 How to disassemble Meizu 15 Lite M871H, Step 17/2

Step 17.

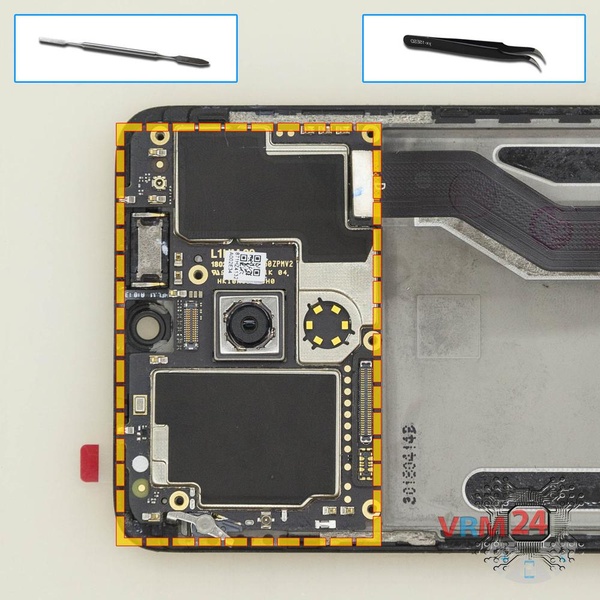

Remove the PCB.

How to disassemble Meizu 15 Lite M871H, Step 18/1 How to disassemble Meizu 15 Lite M871H, Step 18/2

Step 18.

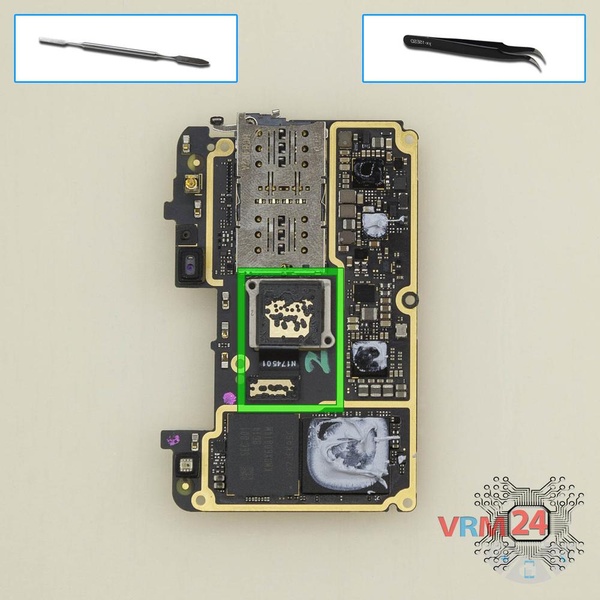

Disconnect the connector on PCB, and remove the main camera.

Detailed disassembly instructions of Meizu 15 Lite M871H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu 15 Lite M871H
