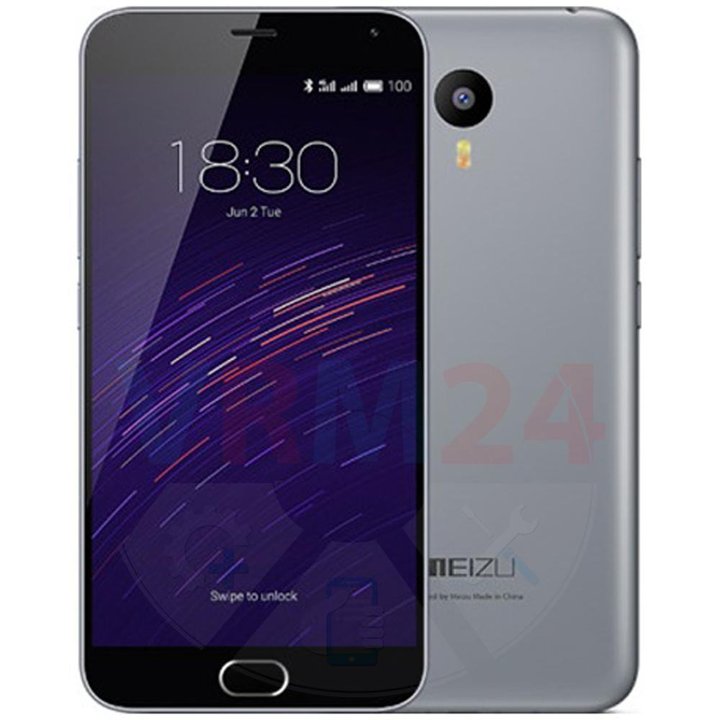

Disassembly/Repair of the mobile device Meizu M2 Note M571H with each step description and the required set of tools.

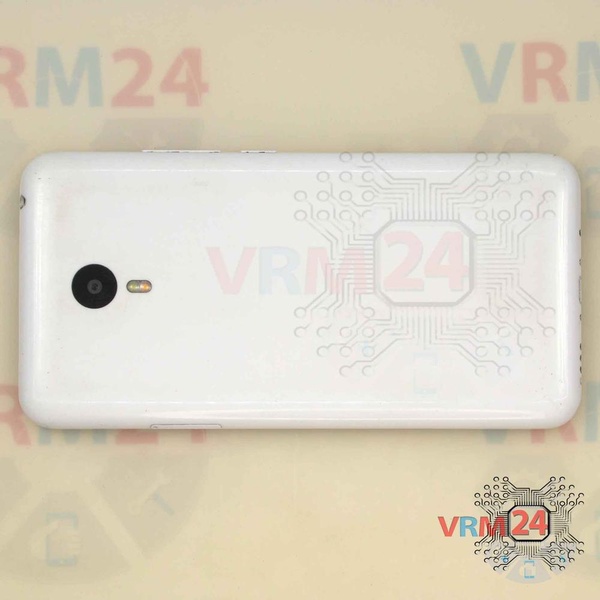

⚠ Before disassembling, do not forget to turn your phone off.

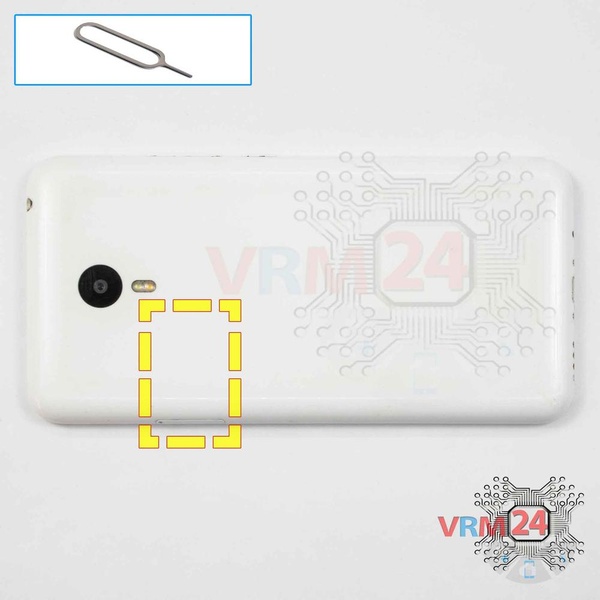

Use the Key tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

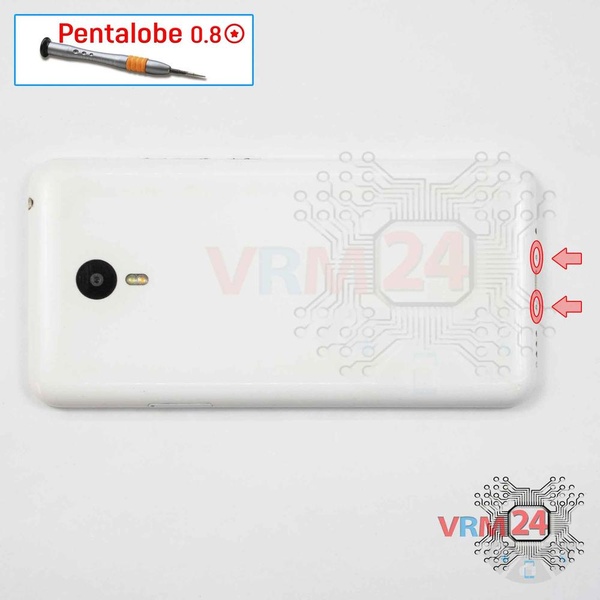

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive 2 screws out at the end of the phone.

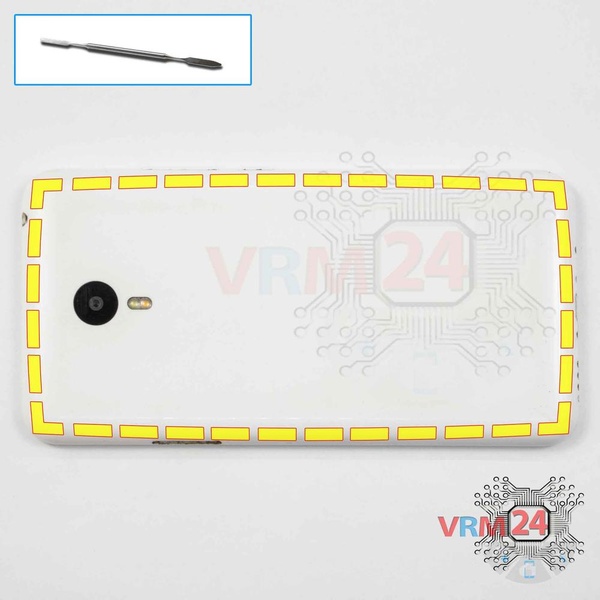

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

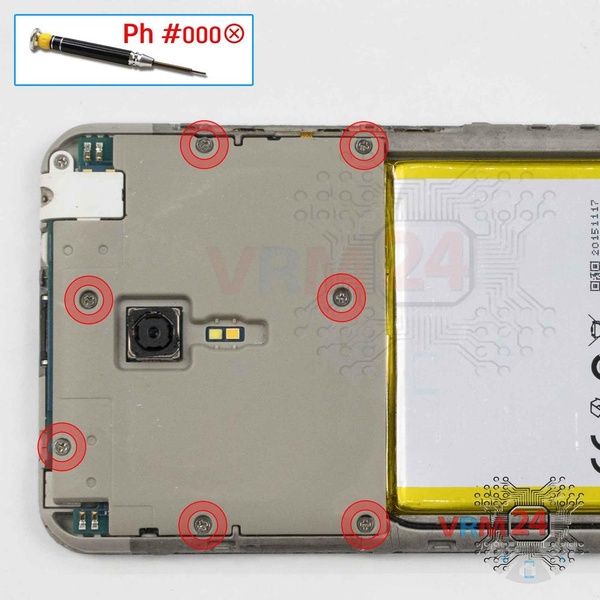

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the seven screws.

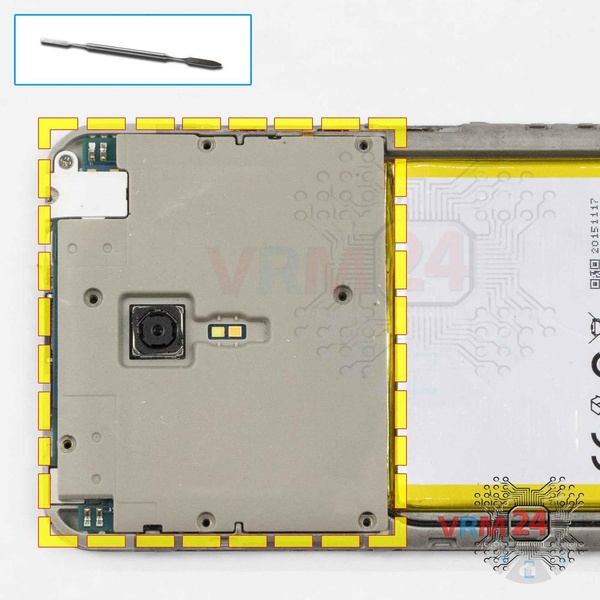

Remove the cover that protects the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

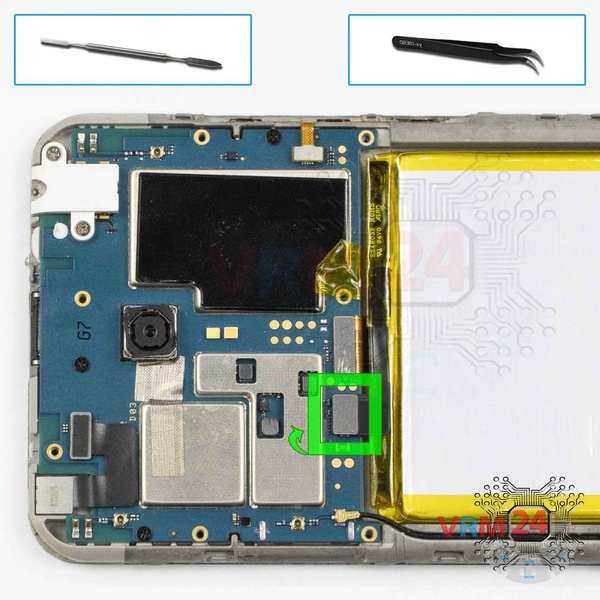

Disconnect the battery connector as soon as possible.

ℹ️ The Meizu M2 Note M571H model has a battery BT42C with 3100 mAh capacity (aka rechargeable battery).

⚠ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

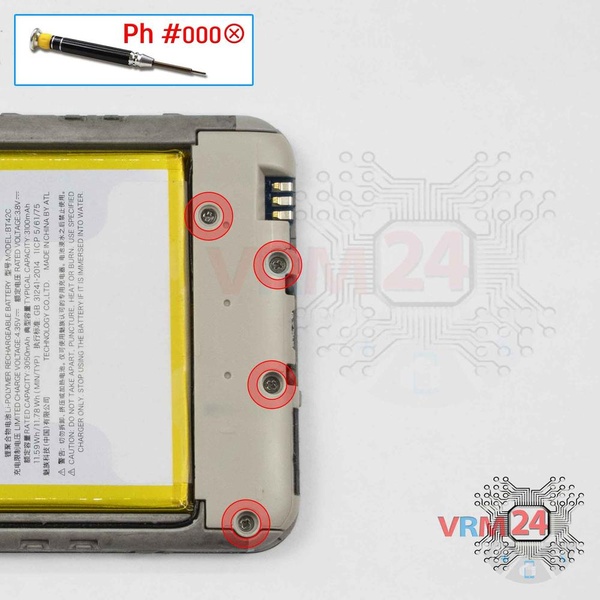

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the four screws.

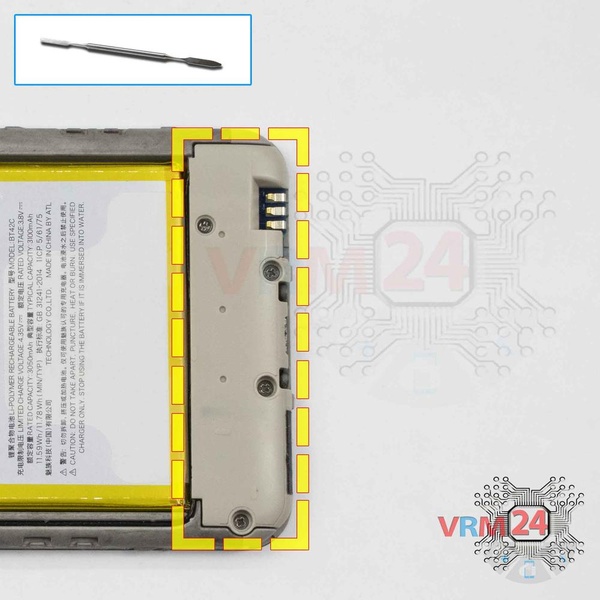

Remove the loudspeaker assembly with antennas.

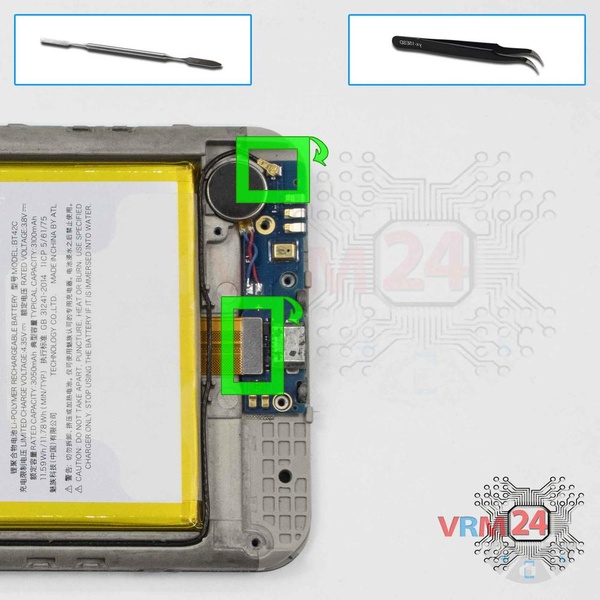

Disconnect the coaxial cable connector, inter-board sub-screen cable on the daughterboard.

⚠ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

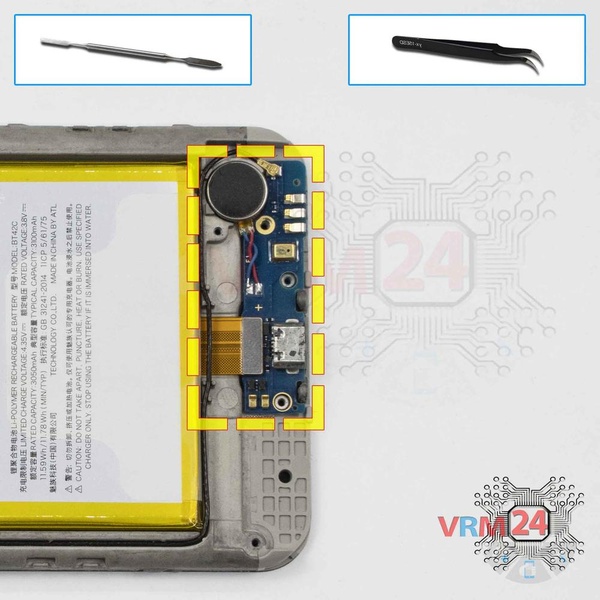

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️ The board contains a charging port (Micro USB), microphone, vibration motor, spring contacts for the speaker, home button, and an antenna unit.

⚠ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.

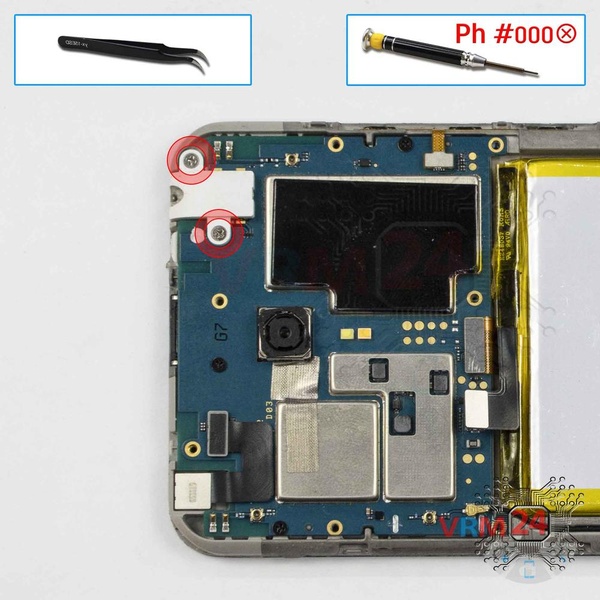

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the two screws and remove the headphone jack socket.

ℹ️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

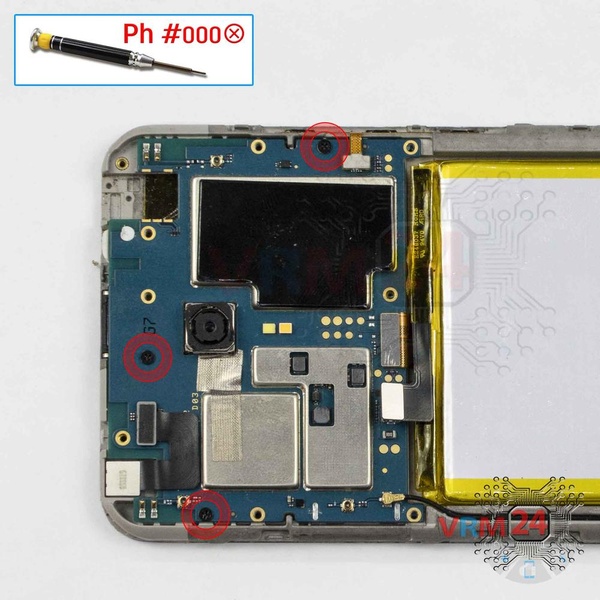

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the three screws.

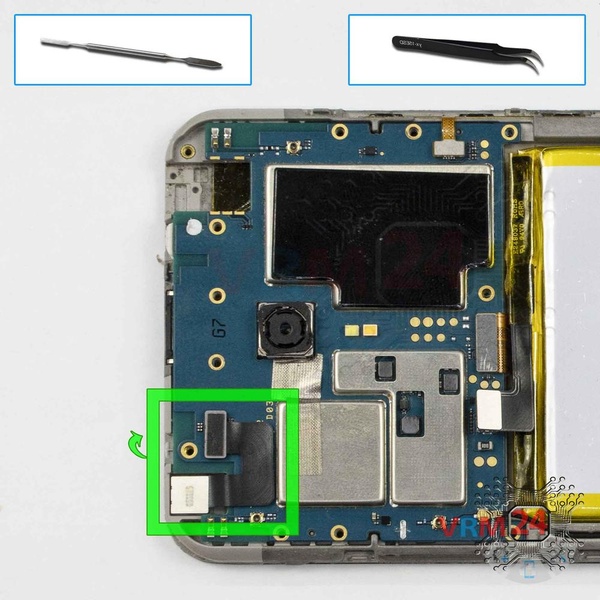

Disconnect the connector and remove the front (selfie) camera.

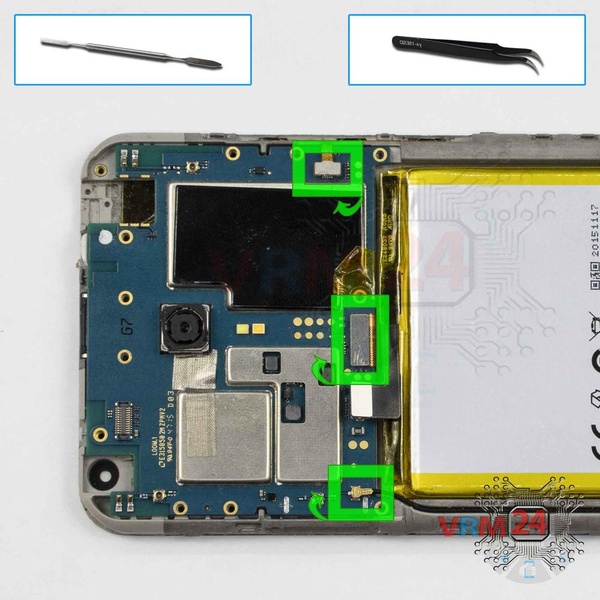

Pry up the connectors of power volume buttons cable, display module cable, inter-board cable, and coaxial cable.

⚠ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

⚠ Also, two connectors are located from the inside.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

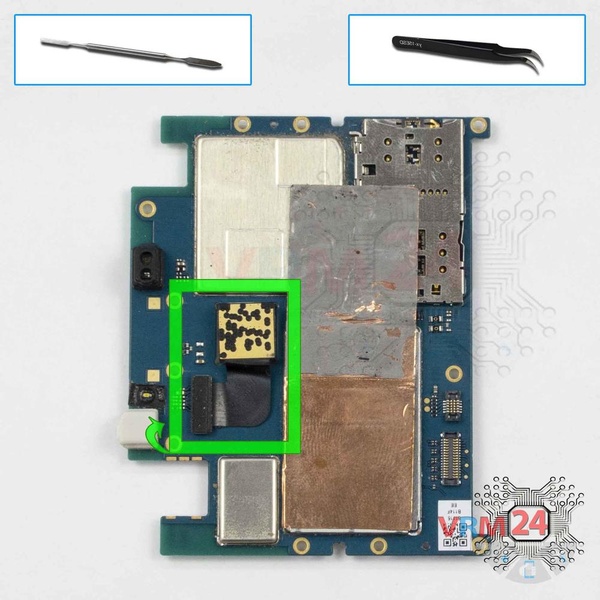

Disconnect the connector and remove the rear camera.
