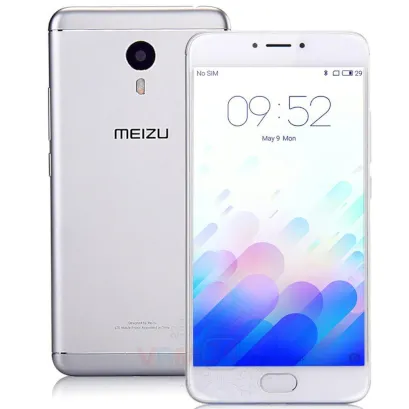

Disassembly/Repair of the mobile device Meizu M3 Note M681H (Meizu M3 Note M681H M681G) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Meizu M3 Note M681H, Step 1/1 How to disassemble Meizu M3 Note M681H, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu M3 Note M681H, Step 2/1 How to disassemble Meizu M3 Note M681H, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Meizu M3 Note M681H, Step 3/1 How to disassemble Meizu M3 Note M681H, Step 3/2

Step 3.

Open the back cover.

How to disassemble Meizu M3 Note M681H, Step 4/1 How to disassemble Meizu M3 Note M681H, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts.

How to disassemble Meizu M3 Note M681H, Step 5/1 How to disassemble Meizu M3 Note M681H, Step 5/2

Step 5.

Pry and remove the frame.

How to disassemble Meizu M3 Note M681H, Step 6/1 How to disassemble Meizu M3 Note M681H, Step 6/2 How to disassemble Meizu M3 Note M681H, Step 6/3 How to disassemble Meizu M3 Note M681H, Step 6/4

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu M3 Note M681H, Step 7/1 How to disassemble Meizu M3 Note M681H, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Meizu M3 Note M681H, Step 8/1 How to disassemble Meizu M3 Note M681H, Step 8/2

Step 8.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu M3 Note M681H, Step 9/1 How to disassemble Meizu M3 Note M681H, Step 9/2 How to disassemble Meizu M3 Note M681H, Step 9/3 How to disassemble Meizu M3 Note M681H, Step 9/4

Step 9.

Disconnect the connector on the lower PCB and remove it.

How to disassemble Meizu M3 Note M681H, Step 10/1 How to disassemble Meizu M3 Note M681H, Step 10/2

Step 10.

Pry up and remove the Home button.

How to disassemble Meizu M3 Note M681H, Step 11/1 How to disassemble Meizu M3 Note M681H, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Meizu M3 Note M681H, Step 12/1 How to disassemble Meizu M3 Note M681H, Step 12/2

Step 12.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Meizu M3 Note M681H, Step 13/1 How to disassemble Meizu M3 Note M681H, Step 13/2 How to disassemble Meizu M3 Note M681H, Step 13/3

Step 13.

Disconnect connectors on the PCB.

How to disassemble Meizu M3 Note M681H, Step 14/1 How to disassemble Meizu M3 Note M681H, Step 14/2

Step 14.

Remove the PCB.

How to disassemble Meizu M3 Note M681H, Step 15/1 How to disassemble Meizu M3 Note M681H, Step 15/2

Step 15.

Pry & remove the power & volume buttons flex cable and coaxial cable.

How to disassemble Meizu M3 Note M681H, Step 16/1 How to disassemble Meizu M3 Note M681H, Step 16/2

Step 16.

Pry and remove the earpiece (speaker).

How to disassemble Meizu M3 Note M681H, Step 17/1 How to disassemble Meizu M3 Note M681H, Step 17/2 How to disassemble Meizu M3 Note M681H, Step 17/3

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu M3 Note M681H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu M3 Note M681H
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Meizu M3 Note M681H — Meizu M3 Note M681H M681G released for markets in different countries.
