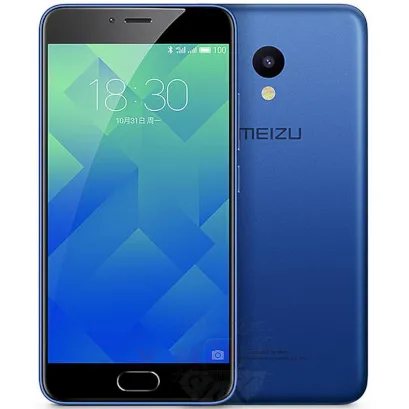

Meizu M5 M611H
Meizu M5 M611H
Teardown difficulty:
Hard
Duration:
10 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu M5 M611H with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Meizu M5 M611H, Step 1/1 How to disassemble Meizu M5 M611H, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu M5 M611H, Step 2/1 How to disassemble Meizu M5 M611H, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Meizu M5 M611H, Step 3/1 How to disassemble Meizu M5 M611H, Step 3/2

Step 3.

Open the back cover.

How to disassemble Meizu M5 M611H, Step 4/1 How to disassemble Meizu M5 M611H, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the flat bracket/bar holds the connectors.

How to disassemble Meizu M5 M611H, Step 5/1 How to disassemble Meizu M5 M611H, Step 5/2 How to disassemble Meizu M5 M611H, Step 5/3 How to disassemble Meizu M5 M611H, Step 5/4

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu M5 M611H, Step 6/1 How to disassemble Meizu M5 M611H, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Meizu M5 M611H, Step 7/1 How to disassemble Meizu M5 M611H, Step 7/2

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu M5 M611H, Step 8/1 How to disassemble Meizu M5 M611H, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Meizu M5 M611H, Step 9/1 How to disassemble Meizu M5 M611H, Step 9/2 How to disassemble Meizu M5 M611H, Step 9/3 How to disassemble Meizu M5 M611H, Step 9/4

Step 9.

Disconnect connectors on the lower PCB and disconnect connectors & remove the coaxial cable.

How to disassemble Meizu M5 M611H, Step 10/1 How to disassemble Meizu M5 M611H, Step 10/2

Step 10.

Remove the lover PCB.

How to disassemble Meizu M5 M611H, Step 11/1 How to disassemble Meizu M5 M611H, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket & Home button.

How to disassemble Meizu M5 M611H, Step 12/1 How to disassemble Meizu M5 M611H, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the PCB.

How to disassemble Meizu M5 M611H, Step 13/1 How to disassemble Meizu M5 M611H, Step 13/2

Step 13.

Pry & remove the upper covers.

How to disassemble Meizu M5 M611H, Step 14/1 How to disassemble Meizu M5 M611H, Step 14/2

Step 14.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Meizu M5 M611H, Step 15/1 How to disassemble Meizu M5 M611H, Step 15/2 How to disassemble Meizu M5 M611H, Step 15/3

Step 15.

Disconnect connectors on the PCB and pry up the vibration motor.

How to disassemble Meizu M5 M611H, Step 16/1 How to disassemble Meizu M5 M611H, Step 16/2

Step 16.

Remove the PCB.

How to disassemble Meizu M5 M611H, Step 17/1 How to disassemble Meizu M5 M611H, Step 17/2

Step 17.

Pry and remove the earpiece (speaker).

How to disassemble Meizu M5 M611H, Step 18/1 How to disassemble Meizu M5 M611H, Step 18/2 How to disassemble Meizu M5 M611H, Step 18/3

Step 18.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu M5 M611H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu M5 M611H
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 10 minutes in time.
Our manual is suitable for all models Meizu M5 M611H released for markets in different countries.
