Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

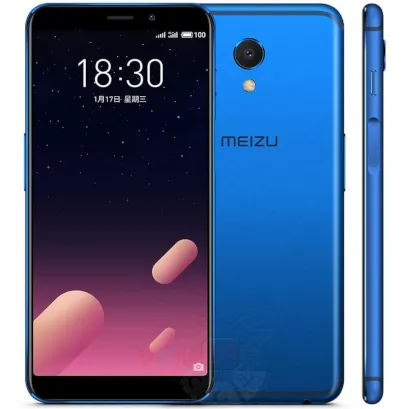

Disassembly/Repair of the mobile device Meizu M6s M712H with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Meizu M6s M712H, Step 1/1 How to disassemble Meizu M6s M712H, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Meizu M6s M712H, Step 2/1 How to disassemble Meizu M6s M712H, Step 2/2

Step 2.

Open the plugs and using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 screws at the end of the phone.

How to disassemble Meizu M6s M712H, Step 3/1 How to disassemble Meizu M6s M712H, Step 3/2

Step 3.

Open the back cover.

How to disassemble Meizu M6s M712H, Step 4/1 How to disassemble Meizu M6s M712H, Step 4/2

Step 4.

Disconnect the battery connector. The battery model of Meizu M6s is BA712.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Meizu M6s M712H, Step 5/1 How to disassemble Meizu M6s M712H, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 screws.

How to disassemble Meizu M6s M712H, Step 6/1 How to disassemble Meizu M6s M712H, Step 6/2

Step 6.

Pry and remove the buzzer (loudspeaker) assembly.

How to disassemble Meizu M6s M712H, Step 7/1

Step 7.

Disconnect connectors on the daughterboard.

How to disassemble Meizu M6s M712H, Step 8/1 How to disassemble Meizu M6s M712H, Step 8/2

Step 8.

Remove the daughterboard, also known as sub-board.

How to disassemble Meizu M6s M712H, Step 9/1 How to disassemble Meizu M6s M712H, Step 9/2

Step 9.

Disconnect the connector and remove the coaxial cable.

How to disassemble Meizu M6s M712H, Step 10/1 How to disassemble Meizu M6s M712H, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 screws.

How to disassemble Meizu M6s M712H, Step 11/1 How to disassemble Meizu M6s M712H, Step 11/2

Step 11.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Meizu M6s M712H, Step 12/1 How to disassemble Meizu M6s M712H, Step 12/2

Step 12.

Disconnect connectors on the PCB.

How to disassemble Meizu M6s M712H, Step 13/1 How to disassemble Meizu M6s M712H, Step 13/2

Step 13.

Remove the PCB.

How to disassemble Meizu M6s M712H, Step 14/1 How to disassemble Meizu M6s M712H, Step 14/2

Step 14.

Disconnect the connector on PCB, and remove the main camera.

Detailed disassembly instructions of Meizu M6s M712H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models Meizu M6s M712H released for markets in different countries.
