Recommended tools
Screwdriver Five-point P0.8 mm
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers

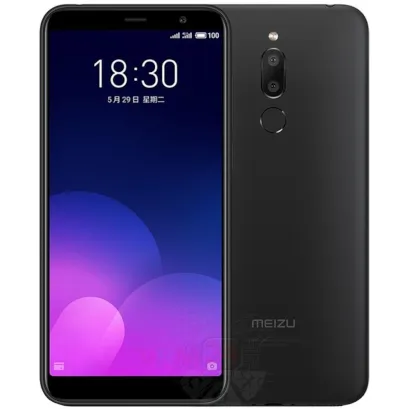

Disassembly/Repair of the mobile device Meizu M6T M811H with each step description and the required set of tools.
7633
Views
1
Likes
—
Share
3
Questions
Step 1.
Remove the trays
Using the key tool, open the SIM and Micro SD cards tray and remove it.
âš Warning!
Do not push too hard this may cause damage.
Step 2.
Unscrew the screws
Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts at the end of the phone.
Step 3.
Open the back cover
Open the back cover.
Step 4.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.
Step 5.
Open the mid-frame
Pry and remove the middle frame.
Step 6.
Disconnect the battery connector
Disconnect the battery connector. The battery model of Meizu M6T is BA811.
âš Warning!
We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.
Step 7.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.
Step 8.
Remove the loudspeaker
Pry and remove the buzzer (loudspeaker) assembly.
Step 9.
Remove the interconnect cable
Disconnect connectors and remove the inter-board cable.
Step 10.
Remove the coaxial cable
Pry up the coaxial cable connector on the daughterboard.
Step 11.
Remove the sub-board
Remove the daughterboard, also known as sub-board.
Step 12.
Remove the cameras
Pry up the connectors and remove the assembly of two rear cameras. Also, remove the front-facing (selfie) camera.
Step 13.
Unscrew one screw
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.
Step 14.
Disconnect the connectors
Disconnect connectors on the PCB.
Step 15.
Remove the motherboard
Remove the PCB.
Step 16.
In the display frame remained
Parts are in the frame of the display module.
