Meizu M8c M810H
Meizu M8c M810H +1k 0
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Step by step disassembly and technical review of the device. The description of each step of the teardown, in detail and the pictures of device parts.


Specialist in content creation, distribution and content management.


How to disassemble Meizu M8c M810H, Step 1/1 How to disassemble Meizu M8c M810H, Step 1/2
Step 1

Using the key tool, open the SIM and Micro SD cards tray and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu M8c M810H, Step 2/1 How to disassemble Meizu M8c M810H, Step 2/2
Step 2

Open the back cover.

How to disassemble Meizu M8c M810H, Step 3/1 How to disassemble Meizu M8c M810H, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.

How to disassemble Meizu M8c M810H, Step 4/1 How to disassemble Meizu M8c M810H, Step 4/2
Step 4

Remove the cover hiding the connectors.

How to disassemble Meizu M8c M810H, Step 5/1 How to disassemble Meizu M8c M810H, Step 5/2
Step 5

Disconnect the battery connector. The battery model of Meizu M8c is BA810.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu M8c M810H, Step 6/1 How to disassemble Meizu M8c M810H, Step 6/2
Step 6

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

How to disassemble Meizu M8c M810H, Step 7/1 How to disassemble Meizu M8c M810H, Step 7/2
Step 7

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu M8c M810H, Step 8/1 How to disassemble Meizu M8c M810H, Step 8/2
Step 8

Disconnect connectors on the daughterboard.

How to disassemble Meizu M8c M810H, Step 9/1 How to disassemble Meizu M8c M810H, Step 9/2
Step 9

Remove the daughterboard, also known as sub-board.

How to disassemble Meizu M8c M810H, Step 10/1 How to disassemble Meizu M8c M810H, Step 10/2
Step 10

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the cover holding the camera.

How to disassemble Meizu M8c M810H, Step 11/1 How to disassemble Meizu M8c M810H, Step 11/2 How to disassemble Meizu M8c M810H, Step 11/3
Step 11

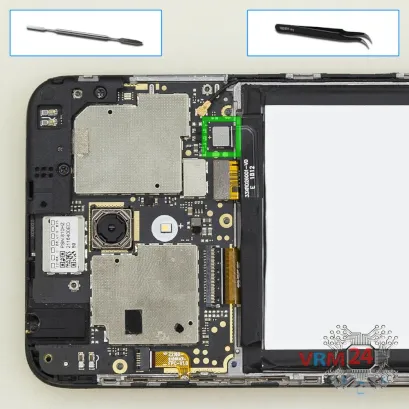

Disconnect connectors on the PCB.

How to disassemble Meizu M8c M810H, Step 12/1 How to disassemble Meizu M8c M810H, Step 12/2
Step 12

Remove the PCB.

How to disassemble Meizu M8c M810H, Step 13/1 How to disassemble Meizu M8c M810H, Step 13/2
Step 13

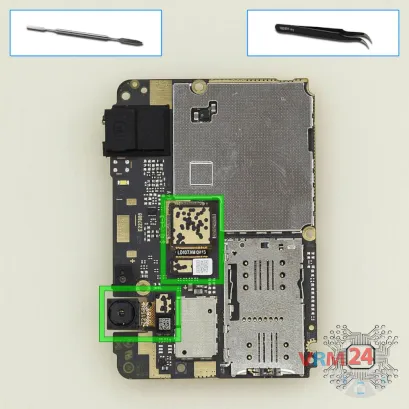

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

Detailed disassembly instructions of Meizu M8c M810H in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Meizu M8c M810H released for markets in different countries.
