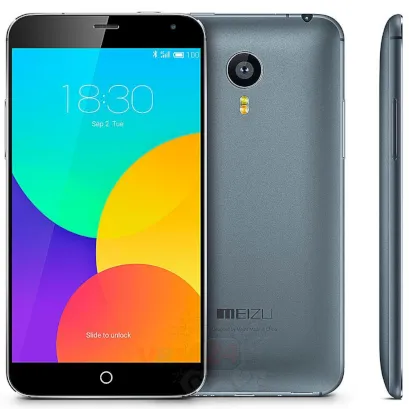

Meizu MX4 PRO M462
Meizu MX4 PRO M462
Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu MX4 PRO M462 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Meizu MX4 PRO M462, Step 1/1 How to disassemble Meizu MX4 PRO M462, Step 1/2

Step 1.

Open the back cover.

How to disassemble Meizu MX4 PRO M462, Step 2/1 How to disassemble Meizu MX4 PRO M462, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble Meizu MX4 PRO M462, Step 3/1 How to disassemble Meizu MX4 PRO M462, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Meizu MX4 PRO M462, Step 4/1 How to disassemble Meizu MX4 PRO M462, Step 4/2 How to disassemble Meizu MX4 PRO M462, Step 4/3

Step 4.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu MX4 PRO M462, Step 5/1 How to disassemble Meizu MX4 PRO M462, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Meizu MX4 PRO M462, Step 6/1 How to disassemble Meizu MX4 PRO M462, Step 6/2 How to disassemble Meizu MX4 PRO M462, Step 6/3

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Meizu MX4 PRO M462, Step 7/1 How to disassemble Meizu MX4 PRO M462, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB and remove the headphone jack/socket.

How to disassemble Meizu MX4 PRO M462, Step 8/1 How to disassemble Meizu MX4 PRO M462, Step 8/2

Step 8.

Disconnect connectors on the PCB.

How to disassemble Meizu MX4 PRO M462, Step 9/1 How to disassemble Meizu MX4 PRO M462, Step 9/2 How to disassemble Meizu MX4 PRO M462, Step 9/3

Step 9.

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.

How to disassemble Meizu MX4 PRO M462, Step 10/1 How to disassemble Meizu MX4 PRO M462, Step 10/2

Step 10.

Pry and remove the frame with microphones and proximity sensor.

How to disassemble Meizu MX4 PRO M462, Step 11/1 How to disassemble Meizu MX4 PRO M462, Step 11/2 How to disassemble Meizu MX4 PRO M462, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu MX4 PRO M462 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu MX4 PRO M462
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Meizu MX4 PRO M462 released for markets in different countries.
