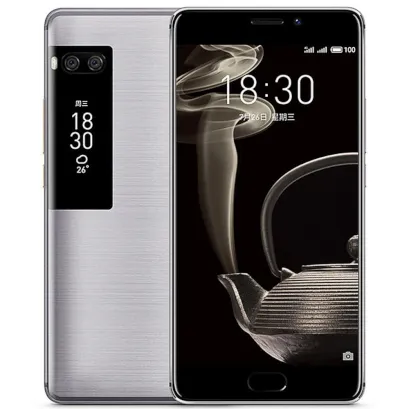

Disassembly of the mobile device Meizu Pro 7 M792H (Meizu Pro 7 M792H) with each step description and the required set of tools.

Load more
Teardown difficulty:
Moderate
Duration:
18 min

Specialist in content creation, distribution and content management.

Recommended tools

How to disassemble Meizu Pro 7 M792H, Step 1/1 How to disassemble Meizu Pro 7 M792H, Step 1/2

Step 1

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.


How to disassemble Meizu Pro 7 M792H, Step 2/1 How to disassemble Meizu Pro 7 M792H, Step 2/2

Step 2

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Meizu Pro 7 M792H, Step 3/1 How to disassemble Meizu Pro 7 M792H, Step 3/2

Step 3

Lift and turn over the display.


How to disassemble Meizu Pro 7 M792H, Step 4/1 How to disassemble Meizu Pro 7 M792H, Step 4/2

Step 4

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holds the connector.


How to disassemble Meizu Pro 7 M792H, Step 5/1 How to disassemble Meizu Pro 7 M792H, Step 5/2 How to disassemble Meizu Pro 7 M792H, Step 5/3

Step 5

Disconnect the Home button connector.


How to disassemble Meizu Pro 7 M792H, Step 6/1 How to disassemble Meizu Pro 7 M792H, Step 6/2

Step 6

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the connector.


How to disassemble Meizu Pro 7 M792H, Step 7/1 How to disassemble Meizu Pro 7 M792H, Step 7/2 How to disassemble Meizu Pro 7 M792H, Step 7/3

Step 7

Disconnect connector and remove the display.


How to disassemble Meizu Pro 7 M792H, Step 8/1 How to disassemble Meizu Pro 7 M792H, Step 8/2

Step 8

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.


How to disassemble Meizu Pro 7 M792H, Step 9/1 How to disassemble Meizu Pro 7 M792H, Step 9/2

Step 9

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the cover.


How to disassemble Meizu Pro 7 M792H, Step 10/1 How to disassemble Meizu Pro 7 M792H, Step 10/2

Step 10

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the cover.


How to disassemble Meizu Pro 7 M792H, Step 11/1 How to disassemble Meizu Pro 7 M792H, Step 11/2

Step 11

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolts and remove the bracket.


How to disassemble Meizu Pro 7 M792H, Step 12/1 How to disassemble Meizu Pro 7 M792H, Step 12/2

Step 12

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket.


How to disassemble Meizu Pro 7 M792H, Step 13/1 How to disassemble Meizu Pro 7 M792H, Step 13/2

Step 13

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the vibration motor.


How to disassemble Meizu Pro 7 M792H, Step 14/1 How to disassemble Meizu Pro 7 M792H, Step 14/2

Step 14

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the antenna part.


How to disassemble Meizu Pro 7 M792H, Step 15/1 How to disassemble Meizu Pro 7 M792H, Step 15/2

Step 15

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.


How to disassemble Meizu Pro 7 M792H, Step 16/1 How to disassemble Meizu Pro 7 M792H, Step 16/2

Step 16

Disconnect connectors on the PCB.


How to disassemble Meizu Pro 7 M792H, Step 17/1 How to disassemble Meizu Pro 7 M792H, Step 17/2

Step 17

Remove the PCB.


How to disassemble Meizu Pro 7 M792H, Step 18/1 How to disassemble Meizu Pro 7 M792H, Step 18/2

Step 18

Pry and remove the buzzer (speaker) assembly.


How to disassemble Meizu Pro 7 M792H, Step 19/1 How to disassemble Meizu Pro 7 M792H, Step 19/2 How to disassemble Meizu Pro 7 M792H, Step 19/3

Step 19

Parts in the frame of the display module.

Detailed disassembly instructions of Meizu Pro 7 M792H in the video, made by our mobile repair & service center:
