Disassembly/Repair of the mobile device Meizu U10 U680 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Meizu U10 U680, Step 1/1 How to disassemble Meizu U10 U680, Step 1/2

Step 1.

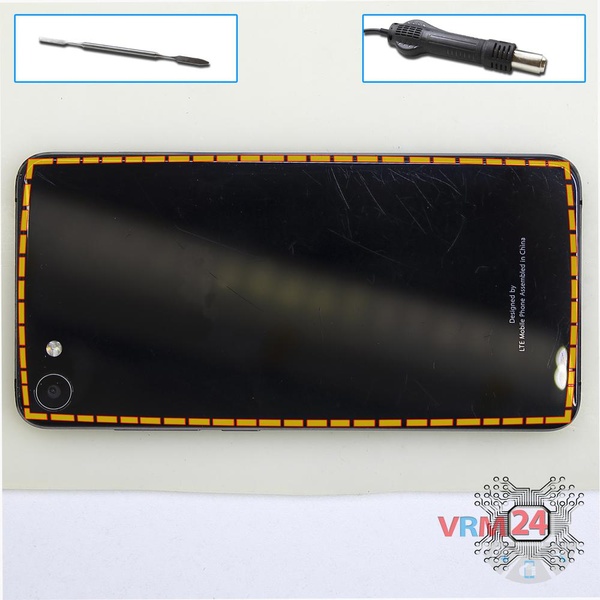

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Meizu U10 U680, Step 2/1 How to disassemble Meizu U10 U680, Step 2/2

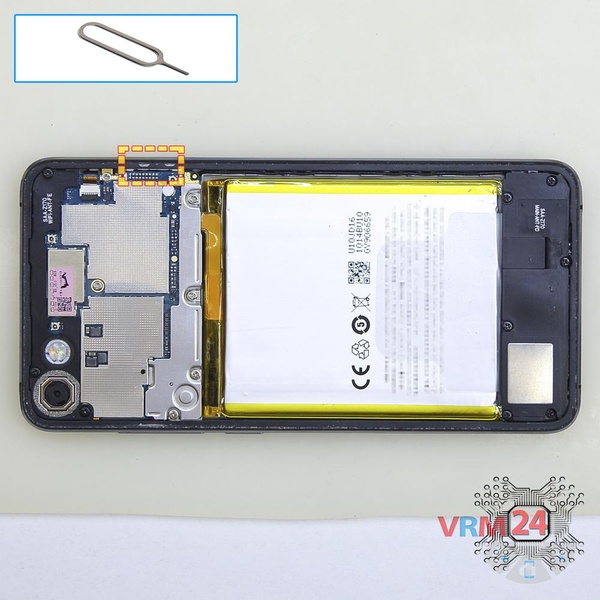

Step 2.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu U10 U680, Step 3/1 How to disassemble Meizu U10 U680, Step 3/2

Step 3.

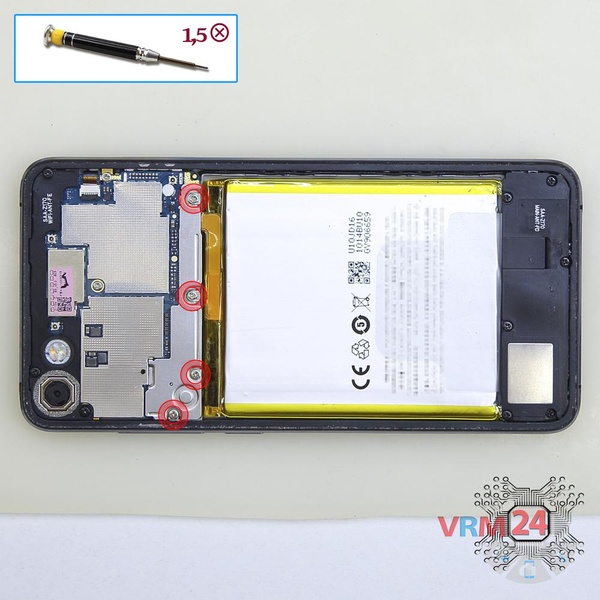

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the flat bracket/bar holds the connectors.

How to disassemble Meizu U10 U680, Step 4/1 How to disassemble Meizu U10 U680, Step 4/2 How to disassemble Meizu U10 U680, Step 4/3 How to disassemble Meizu U10 U680, Step 4/4

Step 4.

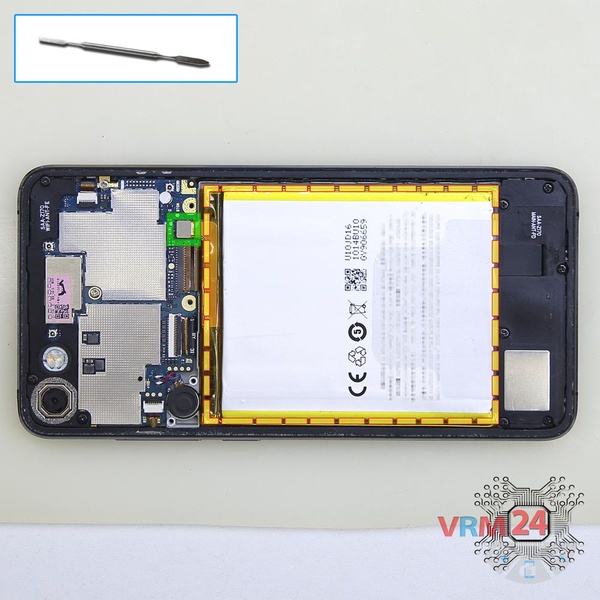

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu U10 U680, Step 5/1 How to disassemble Meizu U10 U680, Step 5/2

Step 5.

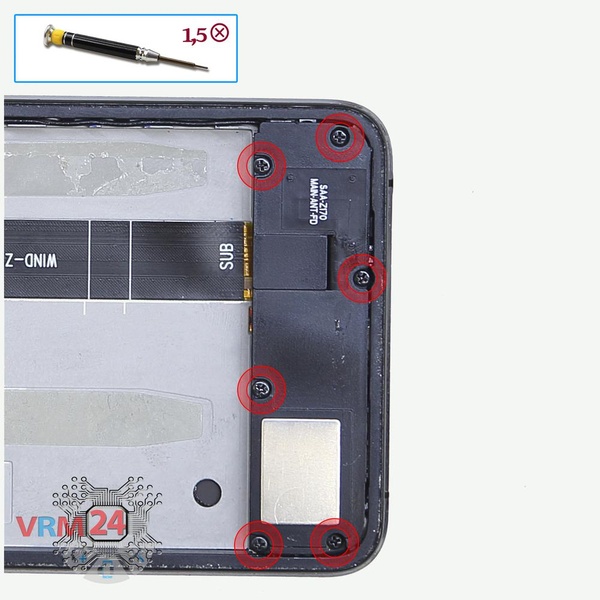

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Meizu U10 U680, Step 6/1 How to disassemble Meizu U10 U680, Step 6/2

Step 6.

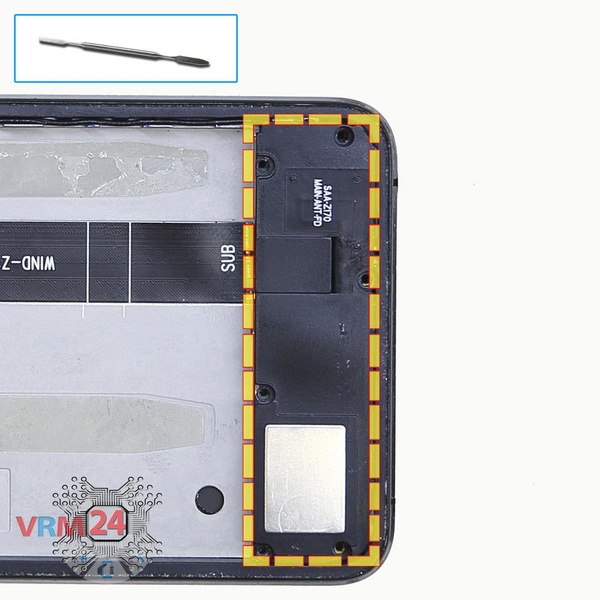

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu U10 U680, Step 7/1 How to disassemble Meizu U10 U680, Step 7/2

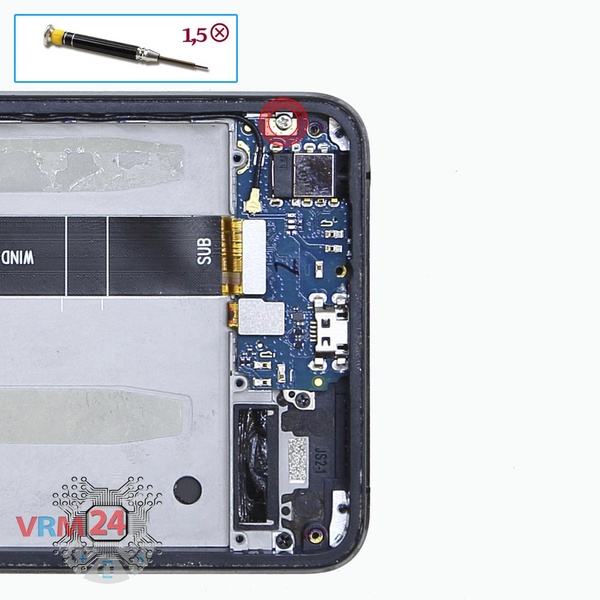

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Meizu U10 U680, Step 8/1 How to disassemble Meizu U10 U680, Step 8/2 How to disassemble Meizu U10 U680, Step 8/3 How to disassemble Meizu U10 U680, Step 8/4

Step 8.

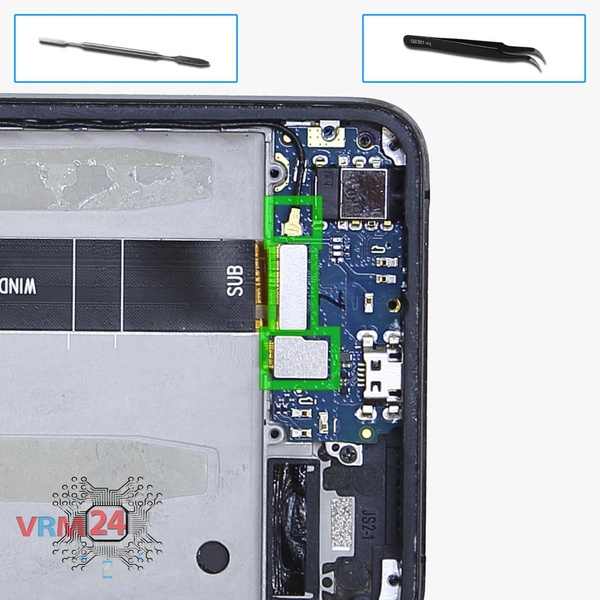

Disconnect connectors on the lower PCB and remove it.

How to disassemble Meizu U10 U680, Step 9/1 How to disassemble Meizu U10 U680, Step 9/2

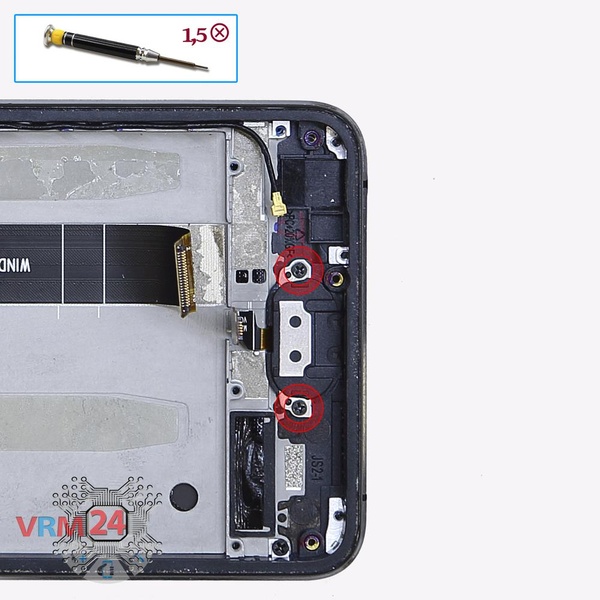

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the Home buttons.

How to disassemble Meizu U10 U680, Step 10/1 How to disassemble Meizu U10 U680, Step 10/2

Step 10.

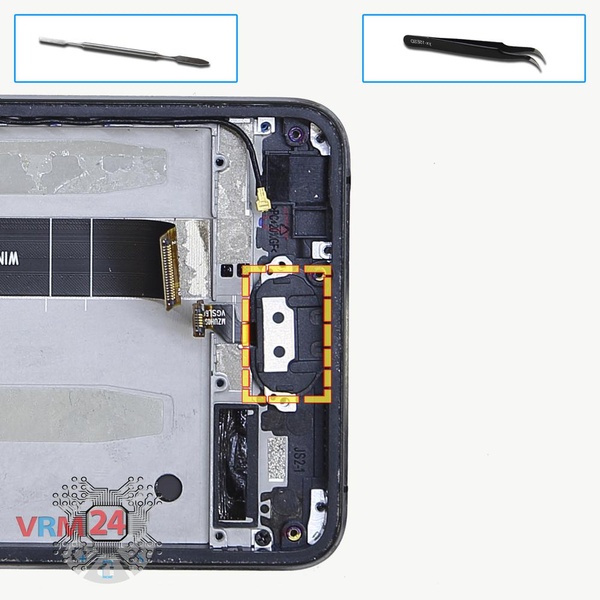

Remove the button holder.

How to disassemble Meizu U10 U680, Step 11/1 How to disassemble Meizu U10 U680, Step 11/2

Step 11.

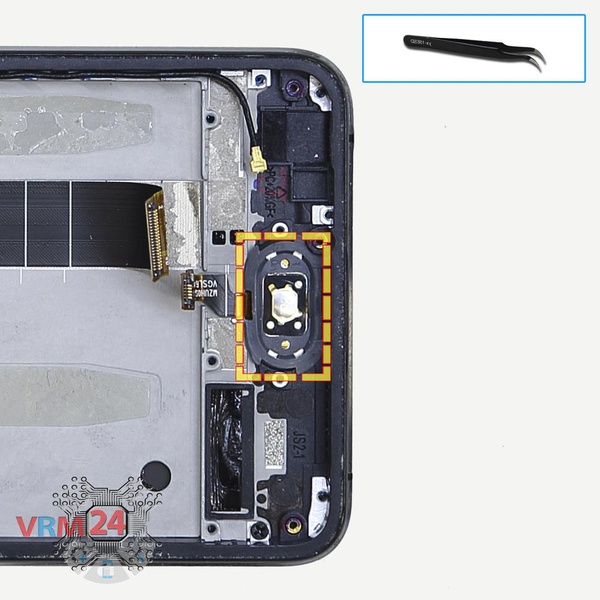

Remove the Home button.

How to disassemble Meizu U10 U680, Step 12/1 How to disassemble Meizu U10 U680, Step 12/2

Step 12.

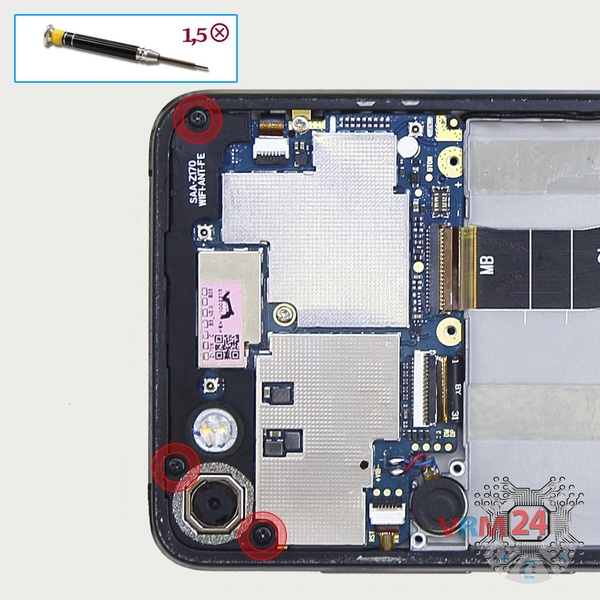

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts securing the upper frame.

How to disassemble Meizu U10 U680, Step 13/1 How to disassemble Meizu U10 U680, Step 13/2

Step 13.

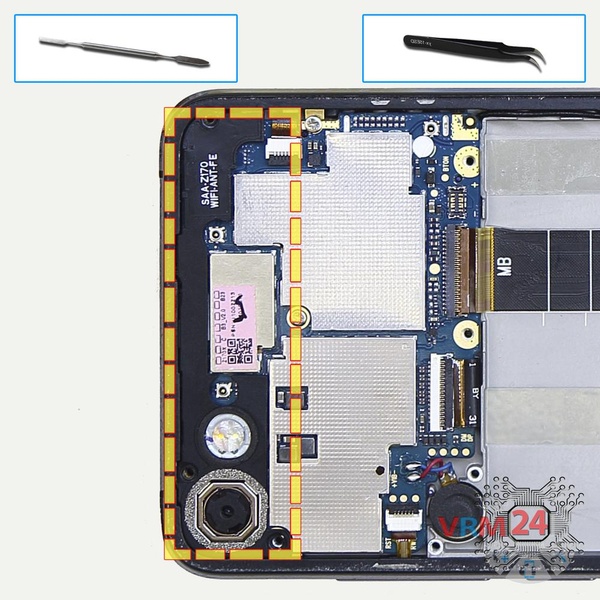

Remove the upper frame.

How to disassemble Meizu U10 U680, Step 14/1 How to disassemble Meizu U10 U680, Step 14/2

Step 14.

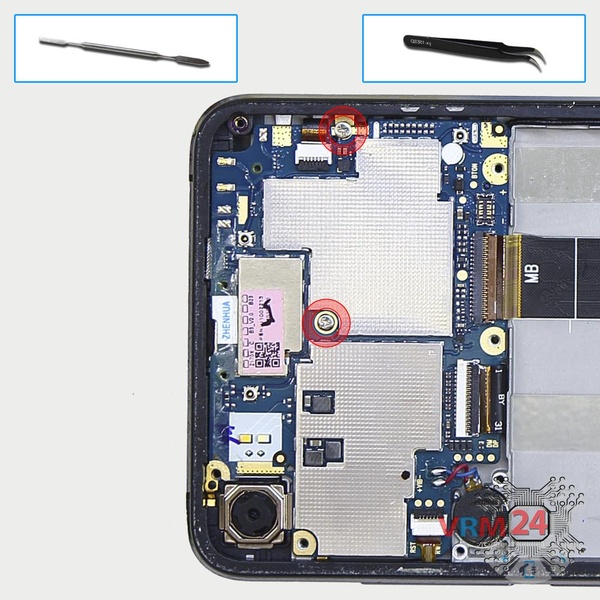

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Meizu U10 U680, Step 15/1 How to disassemble Meizu U10 U680, Step 15/2 How to disassemble Meizu U10 U680, Step 15/3

Step 15.

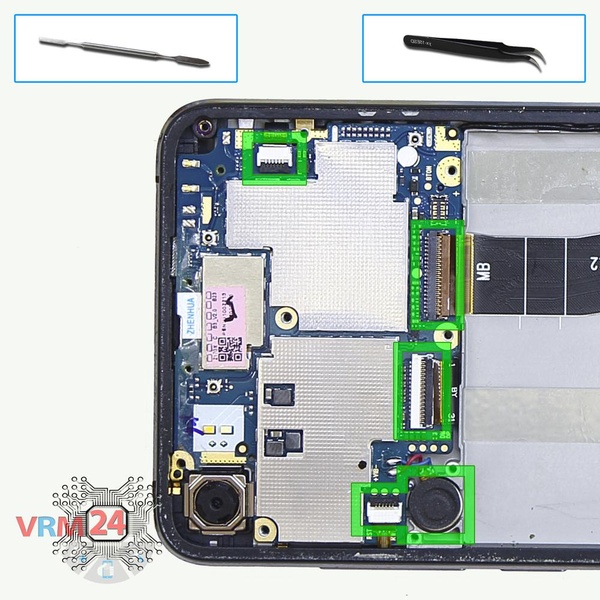

Disconnect connectors on the PCB.

How to disassemble Meizu U10 U680, Step 16/1 How to disassemble Meizu U10 U680, Step 16/2

Step 16.

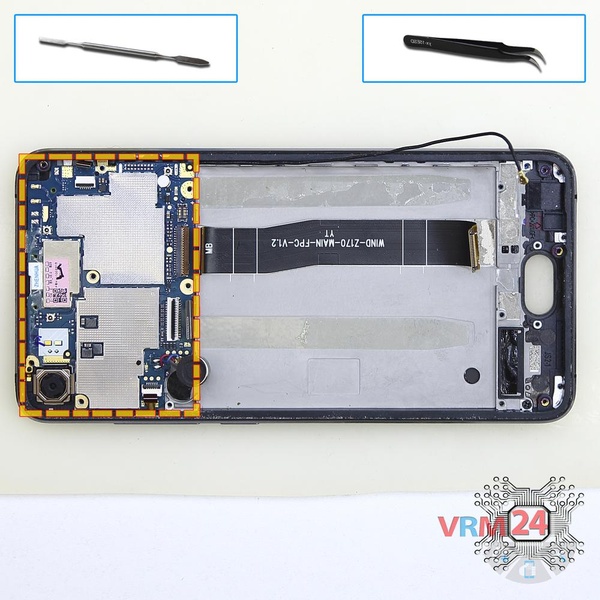

Remove the PCB.

How to disassemble Meizu U10 U680, Step 17/1 How to disassemble Meizu U10 U680, Step 17/2

Step 17.

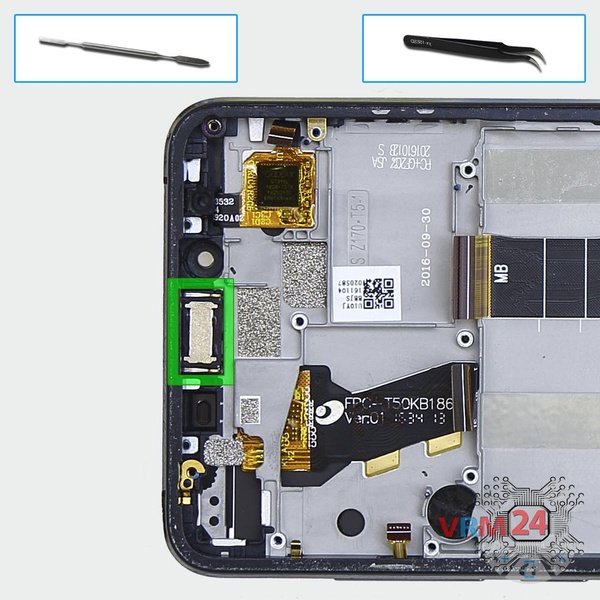

Pry and remove the earpiece (speaker).

How to disassemble Meizu U10 U680, Step 18/1 How to disassemble Meizu U10 U680, Step 18/2 How to disassemble Meizu U10 U680, Step 18/3

Step 18.

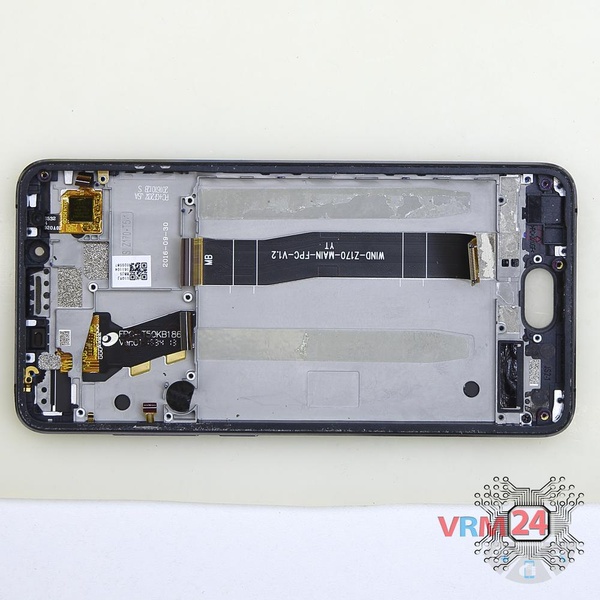

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu U10 U680 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu U10 U680
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 14 minutes in time.
Our manual is suitable for all models Meizu U10 U680 released for markets in different countries.
