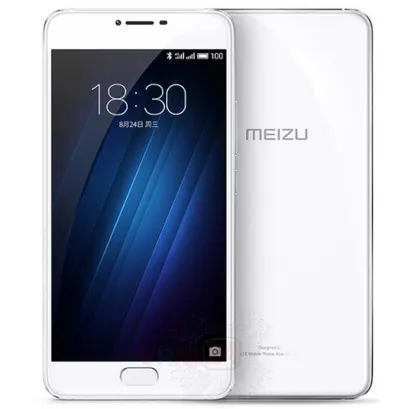

Meizu U20 U685Q
Meizu U20 U685Q
Teardown difficulty:
Moderate
Duration:
12 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Meizu U20 U685Q with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Meizu U20 U685Q, Step 1/1 How to disassemble Meizu U20 U685Q, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu U20 U685Q, Step 2/1 How to disassemble Meizu U20 U685Q, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Meizu U20 U685Q, Step 3/1 How to disassemble Meizu U20 U685Q, Step 3/2 How to disassemble Meizu U20 U685Q, Step 3/3

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts.

How to disassemble Meizu U20 U685Q, Step 4/1 How to disassemble Meizu U20 U685Q, Step 4/2 How to disassemble Meizu U20 U685Q, Step 4/3

Step 4.

Pry and remove the frame.

How to disassemble Meizu U20 U685Q, Step 5/1 How to disassemble Meizu U20 U685Q, Step 5/2 How to disassemble Meizu U20 U685Q, Step 5/3

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu U20 U685Q, Step 6/1 How to disassemble Meizu U20 U685Q, Step 6/2 How to disassemble Meizu U20 U685Q, Step 6/3

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the lower part.

How to disassemble Meizu U20 U685Q, Step 7/1 How to disassemble Meizu U20 U685Q, Step 7/2 How to disassemble Meizu U20 U685Q, Step 7/3

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu U20 U685Q, Step 8/1 How to disassemble Meizu U20 U685Q, Step 8/2

Step 8.

Disconnect connectors and remove the coaxial cable.

How to disassemble Meizu U20 U685Q, Step 9/1 How to disassemble Meizu U20 U685Q, Step 9/2

Step 9.

Separate the battery from the frame.



How to disassemble Meizu U20 U685Q, Step 10/1 How to disassemble Meizu U20 U685Q, Step 10/2 How to disassemble Meizu U20 U685Q, Step 10/3

Step 10.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Meizu U20 U685Q, Step 11/1 How to disassemble Meizu U20 U685Q, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Meizu U20 U685Q, Step 12/1 How to disassemble Meizu U20 U685Q, Step 12/2 How to disassemble Meizu U20 U685Q, Step 12/3 How to disassemble Meizu U20 U685Q, Step 12/4

Step 12.

Disconnect connectors on the PCB and pry up the vibration motor.

How to disassemble Meizu U20 U685Q, Step 13/1 How to disassemble Meizu U20 U685Q, Step 13/2

Step 13.

Remove the PCB.

How to disassemble Meizu U20 U685Q, Step 14/1 How to disassemble Meizu U20 U685Q, Step 14/2 How to disassemble Meizu U20 U685Q, Step 14/3

Step 14.

Remove the headphone jack/socket.

How to disassemble Meizu U20 U685Q, Step 15/1 How to disassemble Meizu U20 U685Q, Step 15/2 How to disassemble Meizu U20 U685Q, Step 15/3 How to disassemble Meizu U20 U685Q, Step 15/4

Step 15.

Disconnect the connector on the lower PCB and remove it.

How to disassemble Meizu U20 U685Q, Step 16/1 How to disassemble Meizu U20 U685Q, Step 16/2 How to disassemble Meizu U20 U685Q, Step 16/3

Step 16.

Remove the Home button.

How to disassemble Meizu U20 U685Q, Step 17/1 How to disassemble Meizu U20 U685Q, Step 17/2 How to disassemble Meizu U20 U685Q, Step 17/3

Step 17.

Pry and remove the earpiece (speaker).

How to disassemble Meizu U20 U685Q, Step 18/1 How to disassemble Meizu U20 U685Q, Step 18/2 How to disassemble Meizu U20 U685Q, Step 18/3

Step 18.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu U20 U685Q in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu U20 U685Q
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 12 minutes in time.
Our manual is suitable for all models Meizu U20 U685Q released for markets in different countries.
