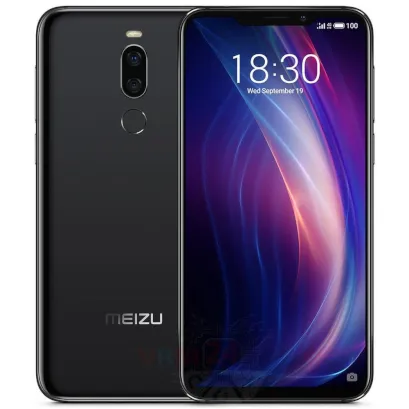

Meizu X8 M852H
Meizu X8 M852H 187 0
Teardown difficulty:
Moderate

Recommended tools

Disassembly of the mobile device Meizu X8 M852H with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Meizu X8 M852H, Step 1/1 How to disassemble Meizu X8 M852H, Step 1/2
Step 1

Using the key tool, open the SIM and Micro SD cards tray and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu X8 M852H, Step 2/1 How to disassemble Meizu X8 M852H, Step 2/2
Step 2

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Meizu X8 M852H, Step 3/1 How to disassemble Meizu X8 M852H, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 20 bolts in the frame of the phone.

How to disassemble Meizu X8 M852H, Step 4/1 How to disassemble Meizu X8 M852H, Step 4/2
Step 4

Pry up the fingerprint sensor, straighten the cable out and separate the middle frame.

How to disassemble Meizu X8 M852H, Step 5/1 How to disassemble Meizu X8 M852H, Step 5/2
Step 5

Disconnect the battery connector. The battery model of Meizu X8 is BA852.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu X8 M852H, Step 6/1 How to disassemble Meizu X8 M852H, Step 6/2
Step 6

Pry up the connector and remove the fingerprint sensor.

How to disassemble Meizu X8 M852H, Step 7/1 How to disassemble Meizu X8 M852H, Step 7/2
Step 7

Pry and remove the buzzer (loudspeaker) assembly.

How to disassemble Meizu X8 M852H, Step 8/1
Step 8

Disconnect connectors on the daughterboard.

How to disassemble Meizu X8 M852H, Step 9/1 How to disassemble Meizu X8 M852H, Step 9/2
Step 9

Remove the daughterboard, also known as sub-board.

How to disassemble Meizu X8 M852H, Step 10/1 How to disassemble Meizu X8 M852H, Step 10/2
Step 10

Disconnect the connectors on PCB, and remove two rear cameras assembly.

How to disassemble Meizu X8 M852H, Step 11/1 How to disassemble Meizu X8 M852H, Step 11/2
Step 11

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Meizu X8 M852H, Step 12/1 How to disassemble Meizu X8 M852H, Step 12/2
Step 12

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt on the mainboard.

How to disassemble Meizu X8 M852H, Step 13/1
Step 13

Disconnect connectors on the PCB.

How to disassemble Meizu X8 M852H, Step 14/1 How to disassemble Meizu X8 M852H, Step 14/2
Step 14

Remove the PCB.

How to disassemble Meizu X8 M852H, Step 15/1 How to disassemble Meizu X8 M852H, Step 15/2 How to disassemble Meizu X8 M852H, Step 15/3
Step 15

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu X8 M852H in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Meizu X8 M852H released for markets in different countries.
