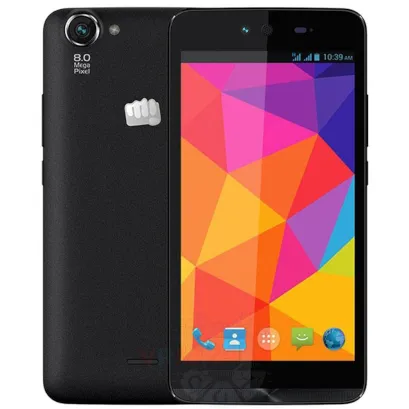

Micromax Bolt Q338
Micromax Bolt Q338
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Micromax Bolt Q338 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Micromax Bolt Q338, Step 1/1 How to disassemble Micromax Bolt Q338, Step 1/2

Step 1.

Open the back cover.

How to disassemble Micromax Bolt Q338, Step 2/1 How to disassemble Micromax Bolt Q338, Step 2/2

Step 2.

Remove the battery. The battery model of Micromax Bolt Q338 is the same as the phone model.

How to disassemble Micromax Bolt Q338, Step 3/1 How to disassemble Micromax Bolt Q338, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 screws.

How to disassemble Micromax Bolt Q338, Step 4/1 How to disassemble Micromax Bolt Q338, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Micromax Bolt Q338, Step 5/1

Step 5.

Disconnect connectors on the daughterboard.

How to disassemble Micromax Bolt Q338, Step 6/1 How to disassemble Micromax Bolt Q338, Step 6/2

Step 6.

Remove the daughterboard, also known as sub-board.

How to disassemble Micromax Bolt Q338, Step 7/1 How to disassemble Micromax Bolt Q338, Step 7/2

Step 7.

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

How to disassemble Micromax Bolt Q338, Step 8/1 How to disassemble Micromax Bolt Q338, Step 8/2

Step 8.

Disconnect connectors on the PCB.

How to disassemble Micromax Bolt Q338, Step 9/1 How to disassemble Micromax Bolt Q338, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Micromax Bolt Q338, Step 10/1 How to disassemble Micromax Bolt Q338, Step 10/2

Step 10.

Pry up the connector and remove the coaxial cable.

How to disassemble Micromax Bolt Q338, Step 11/1 How to disassemble Micromax Bolt Q338, Step 11/2 How to disassemble Micromax Bolt Q338, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Micromax Bolt Q338 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Micromax #Micromax Bolt Q338
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Micromax Bolt Q338 released for markets in different countries.
