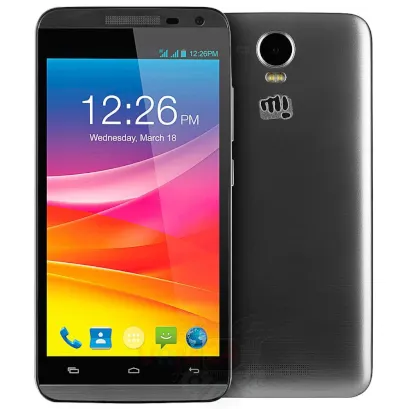

Micromax Canvas Power AQ5001
Micromax Canvas Power AQ5001
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Micromax Canvas Power AQ5001 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Micromax Canvas Power AQ5001, Step 1/1 How to disassemble Micromax Canvas Power AQ5001, Step 1/2

Step 1.

Open the back cover.

How to disassemble Micromax Canvas Power AQ5001, Step 2/1 How to disassemble Micromax Canvas Power AQ5001, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Micromax Canvas Power AQ5001, Step 3/1 How to disassemble Micromax Canvas Power AQ5001, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Micromax Canvas Power AQ5001, Step 4/1 How to disassemble Micromax Canvas Power AQ5001, Step 4/2

Step 4.

Pry and remove the buzzer (speaker).

How to disassemble Micromax Canvas Power AQ5001, Step 5/1 How to disassemble Micromax Canvas Power AQ5001, Step 5/2 How to disassemble Micromax Canvas Power AQ5001, Step 5/3 How to disassemble Micromax Canvas Power AQ5001, Step 5/4

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Micromax Canvas Power AQ5001, Step 6/1 How to disassemble Micromax Canvas Power AQ5001, Step 6/2 How to disassemble Micromax Canvas Power AQ5001, Step 6/3 How to disassemble Micromax Canvas Power AQ5001, Step 6/4 How to disassemble Micromax Canvas Power AQ5001, Step 6/5 How to disassemble Micromax Canvas Power AQ5001, Step 6/6

Step 6.

Disconnect the inter-board connector on the main PCB and the coaxial cable connector on the lower board, and remove the lower board with an inter-board cable.

How to disassemble Micromax Canvas Power AQ5001, Step 7/1 How to disassemble Micromax Canvas Power AQ5001, Step 7/2

Step 7.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Micromax Canvas Power AQ5001, Step 8/1 How to disassemble Micromax Canvas Power AQ5001, Step 8/2 How to disassemble Micromax Canvas Power AQ5001, Step 8/3

Step 8.

Disconnect connectors on the PCB.

How to disassemble Micromax Canvas Power AQ5001, Step 9/1 How to disassemble Micromax Canvas Power AQ5001, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Micromax Canvas Power AQ5001, Step 10/1 How to disassemble Micromax Canvas Power AQ5001, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Micromax Canvas Power AQ5001, Step 11/1 How to disassemble Micromax Canvas Power AQ5001, Step 11/2

Step 11.

Pry & remove the earpiece (speaker) & power & volume buttons flex cable.

How to disassemble Micromax Canvas Power AQ5001, Step 12/1 How to disassemble Micromax Canvas Power AQ5001, Step 12/2 How to disassemble Micromax Canvas Power AQ5001, Step 12/3

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of Micromax Canvas Power AQ5001 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Micromax #Micromax Canvas Power AQ5001
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Micromax Canvas Power AQ5001 released for markets in different countries.
