Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

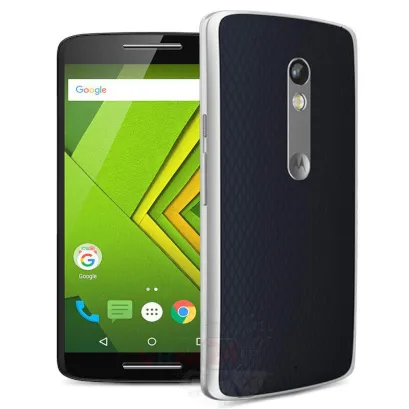

Disassembly of the mobile device Motorola Moto X Play XT1563 (Motorola XT1563) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Motorola Moto X Play XT1563, Step 1/1 How to disassemble Motorola Moto X Play XT1563, Step 1/2
Step 1

Open the back cover.

How to disassemble Motorola Moto X Play XT1563, Step 2/1 How to disassemble Motorola Moto X Play XT1563, Step 2/2
Step 2

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Motorola Moto X Play XT1563, Step 3/1 How to disassemble Motorola Moto X Play XT1563, Step 3/2
Step 3

Using a screwdriver (hex T3), unscrew 17 bolts in the frame of the phone.

How to disassemble Motorola Moto X Play XT1563, Step 4/1 How to disassemble Motorola Moto X Play XT1563, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble Motorola Moto X Play XT1563, Step 5/1 How to disassemble Motorola Moto X Play XT1563, Step 5/2
Step 5

Remove the keys of the volume and power buttons.

How to disassemble Motorola Moto X Play XT1563, Step 6/1 How to disassemble Motorola Moto X Play XT1563, Step 6/2 How to disassemble Motorola Moto X Play XT1563, Step 6/3 How to disassemble Motorola Moto X Play XT1563, Step 6/4
Step 6

Disconnect connectors on the PCB and remove the battery and NFC tag.

Warning!

The battery glued to the frame extremely tight. For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Motorola Moto X Play XT1563, Step 7/1 How to disassemble Motorola Moto X Play XT1563, Step 7/2
Step 7

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Motorola Moto X Play XT1563, Step 8/1 How to disassemble Motorola Moto X Play XT1563, Step 8/2 How to disassemble Motorola Moto X Play XT1563, Step 8/3
Step 8

Disconnect connectors on the PCB.

How to disassemble Motorola Moto X Play XT1563, Step 9/1 How to disassemble Motorola Moto X Play XT1563, Step 9/2
Step 9

Remove the PCB.

How to disassemble Motorola Moto X Play XT1563, Step 10/1 How to disassemble Motorola Moto X Play XT1563, Step 10/2 How to disassemble Motorola Moto X Play XT1563, Step 10/3
Step 10

Parts are in the frame of the display module.

Detailed disassembly instructions of Motorola Moto X Play XT1563 in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Motorola Moto X Play XT1563 — Motorola XT1563 released for markets in different countries.
