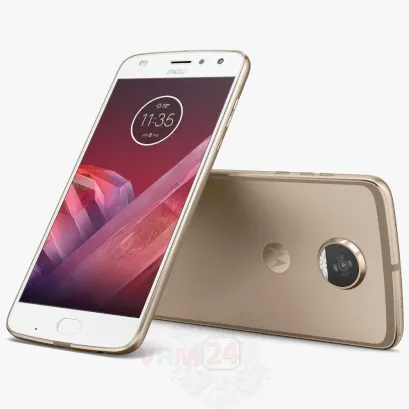

Motorola Moto Z2 Play XT1710
Motorola Moto Z2 Play XT1710
Teardown difficulty:
Hard
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Torx T4 Screwdriver torx t4
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Motorola Moto Z2 Play XT1710 (Motorola XT1710-01/10-02 (USA); XT1710-07 (Brazil); XT1710-10 (India); XT1710-08/10-11 (China, Hong Kong); XT1710-09 (Australia, New Zealand, Indonesia, Japan, Malaysia, Taiwan)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Motorola Moto Z2 Play XT1710, Step 1/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 1/2

Step 1.

Using the key tool, open the Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Motorola Moto Z2 Play XT1710, Step 2/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Motorola Moto Z2 Play XT1710, Step 3/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 3/2 How to disassemble Motorola Moto Z2 Play XT1710, Step 3/3 How to disassemble Motorola Moto Z2 Play XT1710, Step 3/4

Step 3.

Peel back the protective layer and disconnect the battery connector. The battery model of Motorola Moto Z2 Play is HZ40.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Motorola Moto Z2 Play XT1710, Step 4/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 4/2 How to disassemble Motorola Moto Z2 Play XT1710, Step 4/3

Step 4.

Pry up the connectors and remove the display module.

How to disassemble Motorola Moto Z2 Play XT1710, Step 5/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 5/2

Step 5.

Using a screwdriver (hex T4), unscrew 3 bolts.

How to disassemble Motorola Moto Z2 Play XT1710, Step 6/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 6/2

Step 6.

Using a screwdriver (hex T4), unscrew 4 short bolts.

How to disassemble Motorola Moto Z2 Play XT1710, Step 7/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 7/2

Step 7.

Pry and remove the middle frame with earpiece speaker.

How to disassemble Motorola Moto Z2 Play XT1710, Step 8/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 8/2

Step 8.

Using a screwdriver (hex T4), unscrew 7 bolts.

How to disassemble Motorola Moto Z2 Play XT1710, Step 9/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 9/2

Step 9.

Pry and remove the cover with a vibration motor.

How to disassemble Motorola Moto Z2 Play XT1710, Step 10/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 10/2

Step 10.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Motorola Moto Z2 Play XT1710, Step 11/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 11/2

Step 11.

Using a screwdriver (hex T4), unscrew 3 bolts.

How to disassemble Motorola Moto Z2 Play XT1710, Step 12/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 12/2 How to disassemble Motorola Moto Z2 Play XT1710, Step 12/3 How to disassemble Motorola Moto Z2 Play XT1710, Step 12/4

Step 12.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Motorola Moto Z2 Play XT1710, Step 13/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 13/2 How to disassemble Motorola Moto Z2 Play XT1710, Step 13/3

Step 13.

Remove the Sim card holder.

How to disassemble Motorola Moto Z2 Play XT1710, Step 14/1 How to disassemble Motorola Moto Z2 Play XT1710, Step 14/2

Step 14.

Disconnect the connector on PCB, and remove the front (selfie) camera.

Detailed disassembly instructions of Motorola Moto Z2 Play XT1710 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Motorola #Motorola Moto Z2 Play XT1710
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 14 minutes in time.
Our manual is suitable for all models Motorola Moto Z2 Play XT1710 — Motorola XT1710-01/10-02 (USA); XT1710-07 (Brazil); XT1710-10 (India); XT1710-08/10-11 (China, Hong Kong); XT1710-09 (Australia, New Zealand, Indonesia, Japan, Malaysia, Taiwan) released for markets in different countries.
